Quick question about my turbo (n00b)..
Can anyone tell me exactly what the lines on this turbo would route to? I just need to know which kind of lines to buy.
So far i have: turbo (interanally wastegated), manifold, down pipe, piping, evo fmic, greddy bov, tapped LS oil pan, apexi turbo timer, fuel pump, injectors... and now i just need to get the lines for this turbo and some engine managment..
Any help would be appreciated, thanks
yeah, i know the towel is gay
and it's going in this:
So far i have: turbo (interanally wastegated), manifold, down pipe, piping, evo fmic, greddy bov, tapped LS oil pan, apexi turbo timer, fuel pump, injectors... and now i just need to get the lines for this turbo and some engine managment..
Any help would be appreciated, thanks
yeah, i know the towel is gay
and it's going in this:
#2
Honda-Tech Member
Join Date: Nov 2007
Location: Somewhere in Central, Jerzey, United States
Posts: 156
Likes: 0
Received 0 Likes
on
0 Posts
Re: Quick question about my turbo (n00b).. (KLUE)
hey, i'm a turbo noob as well but from the structural side of turbocharging i do know that the reason you get a turbo timer is to let the turbine cool off and let the car idle before it shuts down. the reason for that is to allow the oil and coolant in the turbine/compressor to cool down so they dont lose their cooling and lubrication properties from overheating. so my guess would be coolant and oil lines. i hope ur question gets answered, i havent seen anyone else on the thread yet so i hope this helps in the meantime
#3
Honda-Tech Member
Join Date: May 2007
Location: Stratford, Ct, USA
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
Maybe i'm wrong, but I think that that one line that is steel braided is the oil pressure line, and those other 3 lines work as one oil return line and two water cooler lines. The turbo seems to be water cooled, and thats what those lines are for. Only my .02 cents. good luck man.
#4
Honda-Tech Member
Join Date: Nov 2007
Location: Somewhere in Central, Jerzey, United States
Posts: 156
Likes: 0
Received 0 Likes
on
0 Posts
Re: Quick question about my turbo (n00b).. (KLUE)
another thing, since ur turbo is internally wastegated you might find it in this FAQ thread here: https://honda-tech.com/zerothread?id=118699
#5
Honda-Tech Member
Join Date: Feb 2007
Location: fl, usa
Posts: 3,211
Likes: 0
Received 0 Likes
on
0 Posts

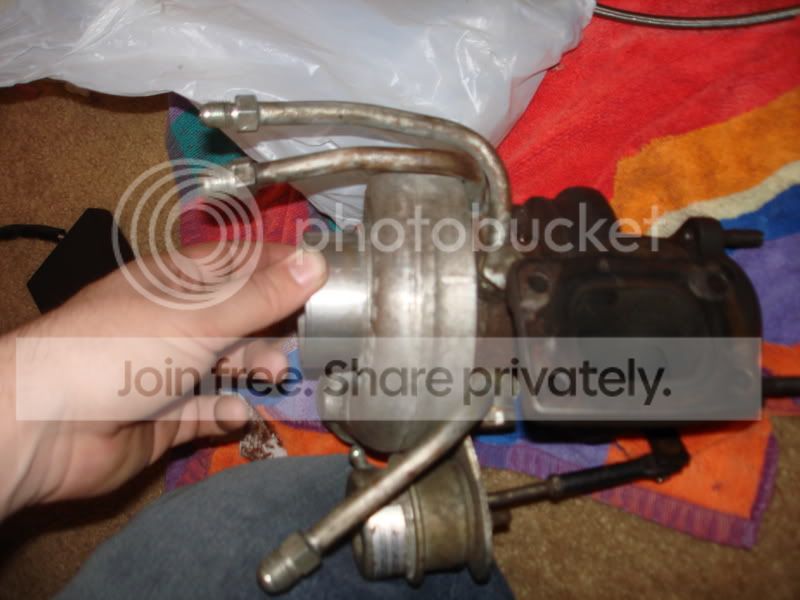

in your first pic
