ok stupid question being i am a honda person for 3 years now...i always wondered exactly what the v-tech is all about and what it means? i think it has something to do with the cam lobes but never knew the right answer. someone fill me in thanks


Modified by BIGPAPAWACK at 4:02 PM 8/21/2008



VTEC

Variable timing electronic control

Yes it does have to do with the cam lobes

Welcome to Honda-Tech.com



how does it work then?



Vtec is similar to a turbo, what the difference is, is that it is built into the head instead of externally like you would see on anybody elses car. When Vtec spools, it spools much quicker and you can program in when and how hard it spools.

However, Vtec as well as turbos really don't give you any extra power, the extra power comes from a more aggressive camshaft grind that it takes to make these things work properly.



Vtec just spooled yo.

http://auto.howstuffworks.com/question229.htm



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by KooK &raquo;</TD></TR><TR><TD CLASS="quote">Vtec is similar to a turbo, what the difference is, is that it is built into the head instead of externally like you would see on anybody elses car. When Vtec spools, it spools much quicker and you can program in when and how hard it spools.

However, Vtec as well as turbos really don't give you any extra power, the extra power comes from a more aggressive camshaft grind that it takes to make these things work properly.</TD></TR></TABLE>

Haha your crazy

^read the link good info!



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by KooK &raquo;</TD></TR><TR><TD CLASS="quote">Vtec is similar to a turbo, what the difference is, is that it is built into the head instead of externally like you would see on anybody elses car. When Vtec spools, it spools much quicker and you can program in when and how hard it spools.

However, Vtec as well as turbos really don't give you any extra power, the extra power comes from a more aggressive camshaft grind that it takes to make these things work properly.</TD></TR></TABLE>

I hope your not serious.



I'm super duper serious. It's what top fuel dragsters use, they don't shift into second, they hit Vtec.



http://www.youtube.com/watch?v=AcT_ZyY3F0k



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by KooK &raquo;</TD></TR><TR><TD CLASS="quote">I'm super duper serious. It's what top fuel dragsters use, they don't shift into second, they hit Vtec.</TD></TR></TABLE>
LOL your hilarious man .



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by BIGPAPAWACK &raquo;</TD></TR><TR><TD CLASS="quote">ok stupid question being i am a honda person for 3 years now...i always wondered exactly what the v-tech is all about and what it means? i think it has something to do with the cam lobes but never knew the right answer. someone fill me in thanks


Modified by BIGPAPAWACK at 4:02 PM 8/21/2008</TD></TR></TABLE>
VTEC (there is no H, no K, no hyphen).
Variable valve-Timing-and-lift Electronic Control

It is pretty much exactly what the name implies - it varies valve timing and lift.

You were right about the cams. Essentially, you look at a VTEC cam and see that each cylinder will have 3 intake lobes instead of just 2 (DOHC VTEC systems have 3 exhaust lobes as well).

an electrically-activated solenoid allows a hydraulic system to lock the rockers to an additional assembly which is moved by the 3rd cam lobe - so you can near instantly go from a mild street lobe to a more wild race lobe for higher RPM power.



http://www.teamdelsol.com/tech...vtec/

http://auto.howstuffworks.com/question229.htm



from what i understand vtec is this little pin that pushes into the camshafts to lock up all three little lobes into place holding the intake and exhaust valves open for a longer amount of time at a certain pre set RPM....



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by KooK &raquo;</TD></TR><TR><TD CLASS="quote">Vtec is similar to a turbo, what the difference is, is that it is built into the head instead of externally like you would see on anybody elses car. When Vtec spools, it spools much quicker and you can program in when and how hard it spools.

However, Vtec as well as turbos really don't give you any extra power, the extra power comes from a more aggressive camshaft grind that it takes to make these things work properly.</TD></TR></TABLE>

How do I make this my sig.?



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by DonF &raquo;</TD></TR><TR><TD CLASS="quote">

How do I make this my sig.? </TD></TR></TABLE>

lol



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by GustavoO &raquo;</TD></TR><TR><TD CLASS="quote">from what i understand vtec is this little pin that pushes into the camshafts to lock up all three little lobes into place holding the intake and exhaust valves open for a longer amount of time at a certain pre set RPM.... </TD></TR></TABLE>

ITs a Pin that locks the rockers together not the cam
But you have the right idea



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by LastGenEK &raquo;</TD></TR><TR><TD CLASS="quote">

ITs a Pin that locks the rockers together not the cam
But you have the right idea </TD></TR></TABLE>

thats what i said isnt it, a pin that pushes into the cam to lock up the lobes?



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by GustavoO &raquo;</TD></TR><TR><TD CLASS="quote">

thats what i said isnt it, a pin that pushes into the cam to lock up the lobes?</TD></TR></TABLE>
it doesn't push into the cams.

it locks the 3 rocker arms together. a camshaft is just 1 piece.



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by kalm_traveler &raquo;</TD></TR><TR><TD CLASS="quote">
it doesn't push into the cams.

it locks the 3 rocker arms together. a camshaft is just 1 piece.</TD></TR></TABLE>

oooh ok, i get you my bad, lern something new everyday.



lol - Oh wise one KooK (aka mustang sally) can you explain more of your great theoretical findings with us about some of the other mechanical functions of a car.

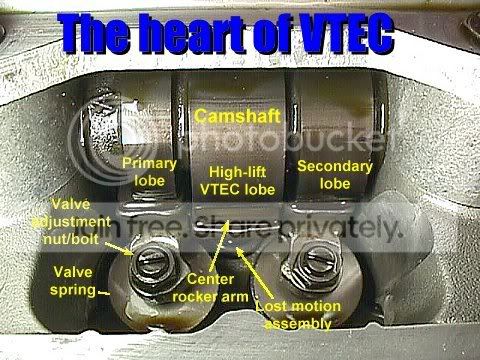

maybe this will help a little..



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by base-op.1320 &raquo;</TD></TR><TR><TD CLASS="quote">lol - Oh wise one KooK (aka mustang sally) can you explain more of your great theoretical findings with us about some of the other mechanical functions of a car.</TD></TR></TABLE>


Im also interested in your idea haha
