Main Relay testing procedure
There are several versions on instructions posted and several different pinned relays.
Can someone tell me the correct testing for this particular relay?
I am using the schematic diagram and holding my relay to match. I am not using the etched ACTUAL locations pictured in the 3-D pic. Am i correct in the following...
When I test schematic pin#1(+) to schematic Pin#3(-) I get power.
I also get power when I test from schematic pin#1(+) to schematic Pin#6(-)
Does that mean it is a dead relay?
I have attempted to test using these posted docs...

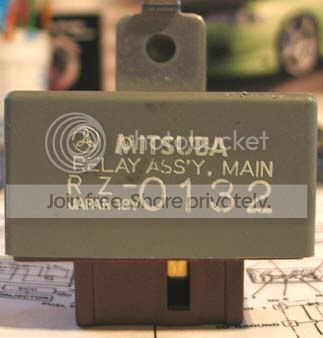

There are variations I have seen posted that go a different route. I have read some docs that reference #4 and #8 but apparently this relay that I have (pictured above RZ 0132) does not have a pin#4?
Any help would be appreciated.
Can someone tell me the correct testing for this particular relay?
I am using the schematic diagram and holding my relay to match. I am not using the etched ACTUAL locations pictured in the 3-D pic. Am i correct in the following...
When I test schematic pin#1(+) to schematic Pin#3(-) I get power.
I also get power when I test from schematic pin#1(+) to schematic Pin#6(-)
Does that mean it is a dead relay?
I have attempted to test using these posted docs...

There are variations I have seen posted that go a different route. I have read some docs that reference #4 and #8 but apparently this relay that I have (pictured above RZ 0132) does not have a pin#4?
Any help would be appreciated.
<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by BigDaddyRich »</TD></TR><TR><TD CLASS="quote">When I test schematic pin#1(+) to schematic Pin#3(-) I get power.
I also get power when I test from schematic pin#1(+) to schematic Pin#6(-)
</TD></TR></TABLE>You mean power or continuity? And are you energizing the relay when you check this? If you get continuity between 1 & 3 when the relay isn't energized, it's bad.
I think you can do the checks using that procedure, but substitute terminal 6 where it says 4.
I also get power when I test from schematic pin#1(+) to schematic Pin#6(-)
</TD></TR></TABLE>You mean power or continuity? And are you energizing the relay when you check this? If you get continuity between 1 & 3 when the relay isn't energized, it's bad.
I think you can do the checks using that procedure, but substitute terminal 6 where it says 4.
<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by JimBlake »</TD></TR><TR><TD CLASS="quote">You mean power or continuity? And are you energizing the relay when you check this? If you get continuity between 1 & 3 when the relay isn't energized, it's bad.
I think you can do the checks using that procedure, but substitute terminal 6 where it says 4.</TD></TR></TABLE>
Edited:
Jim..... using the actualy markings on the relay...
1 & 3 = No continuity ---> next step
(+)4 & (-)8 --relay powers up tested 5 & 7 - continuity good ----> next step
(+)5 & (-)2 --relay powers up tested 1 & 3 - continuity good ----> next step
(+)3 & (-)8 --relay powers up tested 5 & 7 - continuity good.
end of test.
I will assume my relay is good.
Modified by BigDaddyRich at 10:27 AM 3/30/2005
I think you can do the checks using that procedure, but substitute terminal 6 where it says 4.</TD></TR></TABLE>
Edited:
Jim..... using the actualy markings on the relay...
1 & 3 = No continuity ---> next step
(+)4 & (-)8 --relay powers up tested 5 & 7 - continuity good ----> next step
(+)5 & (-)2 --relay powers up tested 1 & 3 - continuity good ----> next step
(+)3 & (-)8 --relay powers up tested 5 & 7 - continuity good.
end of test.
I will assume my relay is good.
Modified by BigDaddyRich at 10:27 AM 3/30/2005
<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by BigDaddyRich »</TD></TR><TR><TD CLASS="quote">I will assume my relay is good.</TD></TR></TABLE>
Looks like it.
Looks like it.
