I plotted some points on a 14b compressor map for my d16a6, Becasuse I have no idea

of what rpm it would start to build psi I graphed all psi at all rpm. Does this look right at

all? I've seen other maps and I was wondering if I'm going in the right direction or if I

should stop and ask. heres the map
http://my.prostreetonline.com/...=3635

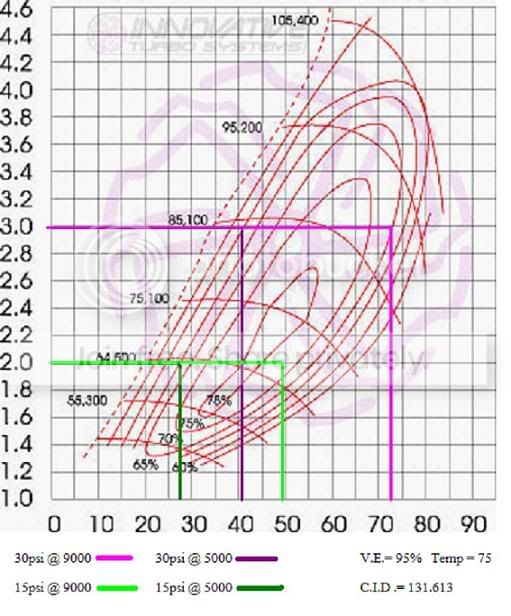

you lost me on your logic for putting the points where you have them. You use RPM, VE, PSIa, CFM, CID, and a few constants to figure out where your plots go. Should look something like this when you are done, although this is just for 2 boost levels (street/ strip) and 2 rpms (about where full boost is achieved and redline)

look around google there are hundreds of write ups on this, its fairly complex. g-luck



This is were i got the logic. http://www.stealth316.com/2-3s-compflowmaps.htm
