Default re: HonDash -Specifications and Description

Originally Posted by moonphysics View Post
Just found this after you posted in your poorboy eg6 thread. Really cool project man, I've always wanted to do something like this. I'm gonna have to build one of these when I get the time. I'd love to contribute to the project and I'd be really interested in designing some interface skins. I'm currently an industrial graphic designer and I used to do web design and iPhone app interface design.

It looks like it's been a while since you've posted here. Any new updates?
Feel free to contribute.
Now I'am working in an analog gauge and fixing some bugs.

DiSCLAiMER is offline
Old 08-27-2015, 01:15 PM
  #27
Honda-Tech Member
Thread Starter

Join Date: May 2010
Posts: 101
Default re: HonDash -Specifications and Description

Here's some little test with the new rpm classic style

DiSCLAiMER is offline
Old 08-28-2015, 07:17 PM
  #28
Honda-Tech Member

moonphysics's Avatar

Join Date: Oct 2014
Location: Nor Cal
Posts: 35
Default HonDash

Looks real good man
moonphysics is offline
Old 09-03-2015, 05:20 PM
  #29
Honda-Tech Member

moonphysics's Avatar

Join Date: Oct 2014
Location: Nor Cal
Posts: 35
Default re: HonDash -Specifications and Description

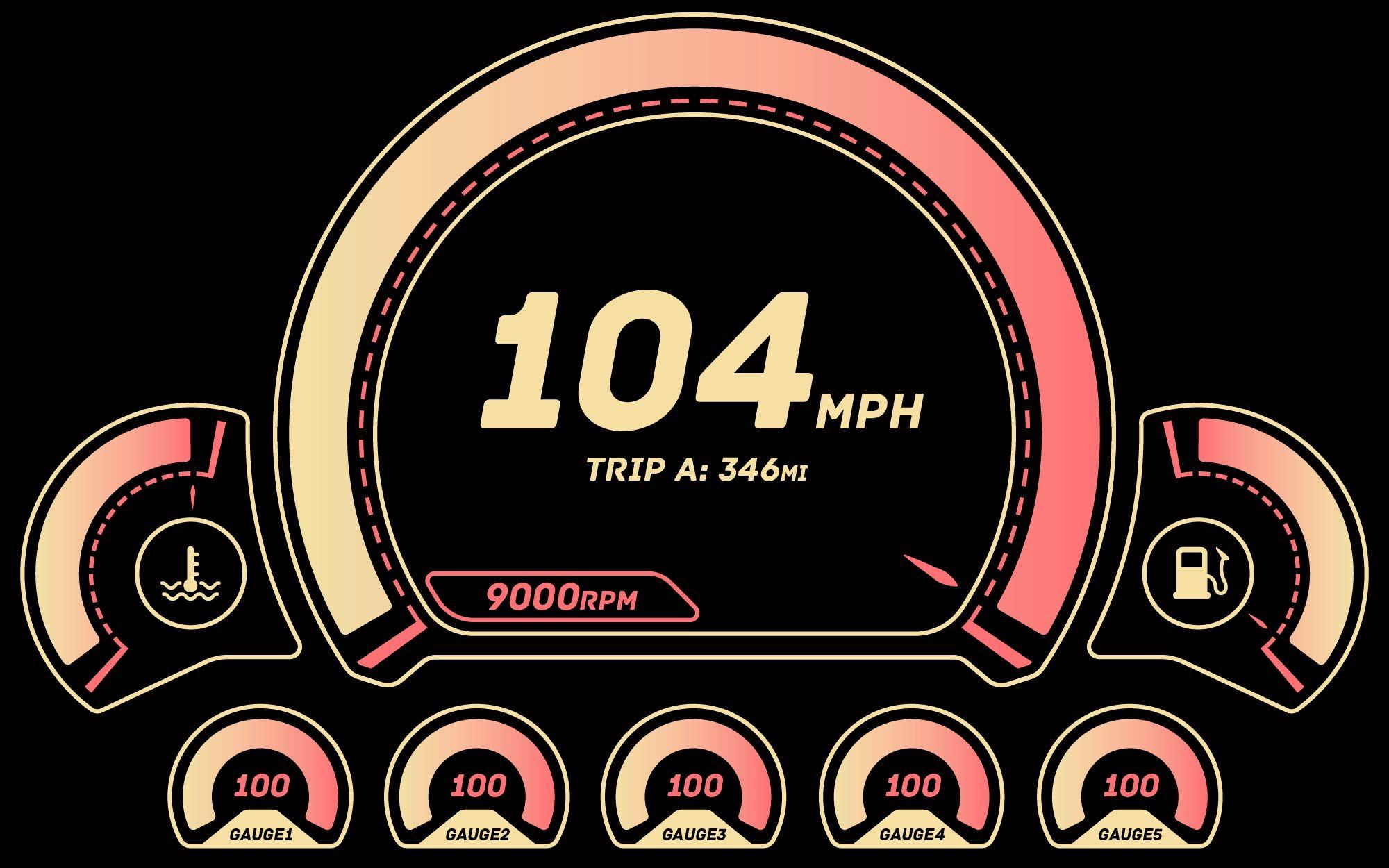

Got bored today and started working on some dash interface ideas. I'm really hoping to find the time this winter to build myself one of these and work on making some different skins.

I've been looking for a cheap OLED monitor to use for this project. I think gauges would look great on OLED since the black pixels are unlit and only the pixels displaying color light up, unlike an LCD display where the entire screen is always lit up when it's on. OLED combined with some custom moulding and a gauge skin to match the moulding could make for a really clean and high tech looking setup.





Last edited by moonphysics; 09-03-2015 at 11:11 PM.
moonphysics is offline
Old 09-05-2015, 02:43 AM
  #30
Honda-Tech Member
Thread Starter

Join Date: May 2010
Posts: 101
Default re: HonDash -Specifications and Description

Originally Posted by moonphysics View Post
Got bored today and started working on some dash interface ideas. I'm really hoping to find the time this winter to build myself one of these and work on making some different skins.

I've been looking for a cheap OLED monitor to use for this project. I think gauges would look great on OLED since the black pixels are unlit and only the pixels displaying color light up, unlike an LCD display where the entire screen is always lit up when it's on. OLED combined with some custom moulding and a gauge skin to match the moulding could make for a really clean and high tech looking setup.
you are right, an OLED would work perfect for this, I'm using and IPS lcd which is also good for black.
concretely I'm using this one: 7" inch HSD070PWW1 B01 1280 800 LCD Panel LCD Controller Board Touch Screen | eBay

Man, that graphics look awesome, I prefer a classic style but this is also cool. If you want I can give you some inspiration and see if we can make a new design we like both.
DiSCLAiMER is offline
Old 09-05-2015, 12:14 PM
  #31
Honda-Tech Member
iTrader: (1)

averyvm's Avatar

Join Date: Apr 2005
Location: Cleveland, OH
Posts: 1,063
Default re: HonDash -Specifications and Description

Wow....Very impressive. You may be on to something big here...
averyvm is offline
Old 09-05-2015, 02:10 PM
  #32
I am Jack's...
iTrader: (3)

Tyler Dirden's Avatar

Join Date: Apr 2013
Posts: 794
Default re: HonDash -Specifications and Description

Wow! A really cool tech thread with a lot of actual tech and collaboration.


Am I still in HT?
Tyler Dirden is offline
Old 09-07-2015, 12:43 AM
  #33
Honda-Tech Member

moonphysics's Avatar

Join Date: Oct 2014
Location: Nor Cal
Posts: 35
Default re: HonDash -Specifications and Description

Originally Posted by DiSCLAiMER View Post
you are right, an OLED would work perfect for this, I'm using and IPS lcd which is also good for black.
concretely I'm using this one: 7" inch HSD070PWW1 B01 1280 800 LCD Panel LCD Controller Board Touch Screen | eBay

Man, that graphics look awesome, I prefer a classic style but this is also cool. If you want I can give you some inspiration and see if we can make a new design we like both.
That's a nice looking, fairly priced display. I've found a few 7 or 8 inch portable OLED monitors used by professional photographers, but they're crazy expensive, anywhere from $1800 - $5000 so not really an option. I did find this Dell Android tablet with an 8.4 inch 2560x1600 OLED Display. It's pretty cheap at $350 so I was thinking of buying a used one and seeing if the display could be easily hacked out of it and used with the Raspberry Pi. This could be more trouble than its worth though. Another option would be to use a VNC app on the tablet to mirror the Raspberry Pi output, but that solution is a bit too janky for me.

Yeah man, I'd love to help you design an interface for your liking. If you want to just do a rough sketch up of the layout you'd like I can just pretty it up for you and create all the graphic files. Or if you just want to give me a list of the info you want displayed with a description of the style you're looking for that could work too. Maybe even link some images of dashes you like from other cars and I could try and replicate their style.
moonphysics is offline
Old 09-07-2015, 01:08 AM
  #34
Honda-Tech Member

moonphysics's Avatar

Join Date: Oct 2014
Location: Nor Cal
Posts: 35
Default HonDash

Originally Posted by Tyler Dirden
Wow! A really cool tech thread with a lot of actual tech and collaboration.


Am I still in HT?
Haha yeah I'm pretty new to Honda-Tech, but to be honest I've been a bit bummed out by the lack of sharing and collaboration on really techy, and cutting edge projects. It seems like all the people working on really cool stuff keep it hush hush so they can stay unique, or they developed it and sell it. I really can't blame anyone for doing either of those things because obviously everyone likes getting paid and a huge part of being in the modified car community is trying to make your car unique. So you know, I get it, but I also love the open source community and I think it would be cool to see more collaboration on stuff like this on HT. Disclaimer has been super cool about sharing his projects and knowledge on HT. His EG6 build thread really helped me in building an arduino vss converter for my S2000 cluster swap.
moonphysics is offline
Old 09-15-2015, 12:11 PM
  #35
Honda-Tech Member
Thread Starter

Join Date: May 2010
Posts: 101
Default re: HonDash -Specifications and Description

@moonphysics you have got a PM!
DiSCLAiMER is offline
Old 02-06-2018, 12:04 AM
  #36
EFB055

~sp33~'s Avatar

Join Date: Dec 2005
Location: Brisvegas, QLD, Australia
Posts: 13,194
Default re: HonDash -Specifications and Description

Did this go any further? Nice work.
~sp33~ is offline
Old 03-05-2018, 11:34 PM
  #37
Honda-Tech Member
Thread Starter

Join Date: May 2010
Posts: 101
Default Re: HonDash -Specifications and Description

Originally Posted by ~sp33~ View Post
Did this go any further? Nice work.
yes, I get it running with Hondata kpro trough USB. I have to do lots of things to release it, hope this happens in the next months.
DiSCLAiMER is offline
Old 01-13-2019, 07:37 PM
  #38
Honda-Tech Member

Pabs626's Avatar

Join Date: Jul 2007
Posts: 443
Default Re: HonDash -Specifications and Description

This is awesome!!!
Pabs626 is offline
Old 02-18-2019, 07:41 PM
  #39
Honda-Tech Member
iTrader: (1)

spAdam's Avatar

Join Date: Jul 2002
Location: Boat on a Hill, CA
Posts: 7,045
Default Re: HonDash -Specifications and Description

Any luck communicating to the s300 via the Hondata Binary Protocol over bluetooth? Seems like there is meat on that bone.

https://www.hondata.com/downloads/Bluetooth.pdf
spAdam is offline
Old 02-27-2019, 11:26 AM
  #40
Honda-Tech Member

Join Date: Aug 2016
Posts: 44
Default Re: HonDash -Specifications and Description

Yeah, I hope that he can get the s300 going because I do not want to use hondata's app. It is butt-******* ugly and I would like to help in any way possible. What are the differences between the kpro and the s300 programing wise?
gorillaglue#4 is offline
Old 02-27-2019, 12:29 PM
  #41
Honda-Tech Member
iTrader: (1)

spAdam's Avatar

Join Date: Jul 2002
Location: Boat on a Hill, CA
Posts: 7,045
Default Re: HonDash -Specifications and Description

One of them does not has a published serial protocol. Guess which one?
spAdam is offline
Old 02-27-2019, 01:51 PM
  #42
Honda-Tech Member

Join Date: Aug 2016
Posts: 44
Default Re: HonDash -Specifications and Description

Is that the whole problem right there? they published the kpro one and not the hondata one?
gorillaglue#4 is offline
Old 02-27-2019, 04:08 PM
  #43
Honda-Tech Member
iTrader: (1)

spAdam's Avatar

Join Date: Jul 2002
Location: Boat on a Hill, CA
Posts: 7,045
Default Re: HonDash -Specifications and Description

You could use the Aim dash output if you want and get some of the channels, but if you want all then yes, that’s the problem.
spAdam is offline
Old 02-28-2019, 09:43 AM
  #44
Honda-Tech Member

Join Date: Aug 2016
Posts: 44
Default Re: HonDash -Specifications and Description

What ll does the Aim dash output display?
gorillaglue#4 is offline
Old 02-28-2019, 08:23 PM
  #45
Honda-Tech Member
iTrader: (1)

spAdam's Avatar

Join Date: Jul 2002
Location: Boat on a Hill, CA
Posts: 7,045
Default Re: HonDash -Specifications and Description

It’s published in the S300 help file, along with the protocol to access it.
spAdam is offline
