Returning after 10 years
Hello Everyone,
My Name is Will. I am a mechanical Engineer located in Nebraska. I recently purchased a 96 Integra RS with plans saving money verses driving my driving some of my other vehicles. Long story short, the vehicle has turned into a fun little project car. The pictures below show some of the progress (as of now). I will also attach a mod list however, it does not include all of the modifications.
Integra Modification list
Engine Management
Hondata s300 w/ boost option
OBD2A to OBD1 Conversion ECU jumper Harness
Hondata 4 bar map sensor
Hondata Boost Control Solenoid
PLX SM-Vav/boost, 3 Bar Vacuum/Boost Sensor
PLX wideband AFR sensor Module
Fluid Pressure sensor
Engine
Nitrous
Proton Plus Nitrous System PN: 20421-10
Turbo Kit
GO-AUTOWORKS Cast V2 Ceramic Manifold
Go-AUTOWORKS SS 3in. flared downpipe
Go-AUTOWORKS 38mm MVS dumptube
Turbonetics Billet TNX20 Dual Ball Bearing Turbo
Tial 38mm MVS wastegate (14psi spring combination
HKS SSQV blow off valve
Go-AUTOWORKS pro oil kit
Go-AUTOWORKS pro water line kit
Go-AUTOWORKS street charge pipe kit
Go-AUTOWORKS bar & plate intercooler
Cams
Crower Cams PN: 62403-2
Performance level - Stage 2 - Street/Strip package. Most popular N/A profile. Requires #84162 kit.
INT/EXH - Dur @ .050” Lift: 211°/210° RR: 1.75/1.75 Gross Lift:.422”/.411” LSA: 109° RPM: 1000 to 8000 Redline: 8500
AEM Tru-Time Cam Gears
Crower Dual Spring and Chromoly Retainers PN: 84162S
Go-AUTOWORKS GT V2 Catchcan PN: V2GT Catchcan with 5/8 10AN fittings and hose
Thermal R&D B130-C130 Turbo 3” exhaust PN: TMA-B130C130
Skunk2 Alpha Series Full Size Radiator PN: 349-05-1000
Skunk2 Pro Series Intake Manifold
Blox Intake Manifold Stud Kit PN: BXFL-00303
1320 stainless steel manifold studs
Supertech Valve Stem Seal Set PN: VS-H6.6I/E
Skunk2 Alpha Series Throttle Body (66MM) PN: 309-05-1030
Hondata Thermal Intake Gasket PN: HD-IGB20
Oil Motul 100% Synthetic 5w-30 PN: 102898
Honda Oil Filter PN: 15400-PLM-A02
Innovative Steel Replacement Engine Mount Kit 3-bolt/75A PN: 10150-75A
Moroso Honda B-series Street/strip Replacement baffled oil pan PN: 20911
Fuel
AEM High Volume Fuel Rail
Walbro 255LPH HP Fuel Pump PN: GSS-341
Grams 1000cc injectors PN: G2-1000-0500
Trans
Competition Ultralight Flywheel (12lbs.)
Competition Clutch Stage 5 clutch
B&M Precision Sport Shifter PN: 45047
Dewhel Shift Linkage polyurethane bushings
Skunk2 weighted shift ****
Suspension
Skunk2 Pro Plus Camber kit PN: 516-05-5675
Skunk2 Pro Camber kit rear PN: 516-05-0500
Function and Form TYPE one coilovers
Skunk2 rear lower control arms PN: 542-05-0095
ASR Rear Subframe Brace PN: EG-RB-02S
Hardrace Rear Trailing Arm Bushing Set PN: 6106
Hardrace Front Lower Arm Bushing Kit PN: 6102
ASR Subframe Brace LCA Bolt & Spacer PN: EG-AB-01
Benen Stainless B-Pillar Bar PN: BE10107-DCSU
ASR 24mm Sway Bar PN: ASR-EG-24S-01
ASR Spherical End Links (rear) PN: ASR-DCR-RE-01
Energy Suspension 22mm sway bar bushings (front)
Energy suspension end links (front)
BEAKS lower tie bar
Manzo Strut Bars
Brakes
Brake Fluid Motul RBF 600-660 DOT 4 – RBF 600 PN: 100949
Wilwood Front and Rear Big Brake Kit Drilled/slotted & 11” rear kit PN: 140-12996-DR/140-10206-DR
Wilwood Rear Flexline Kit PN: 220-10840
Wilwood Parking Brake Cable PN: 330-10966
Wheels and tires
405/45R16XL 87W Firestone Firehawk Indy 500
16x7 ROTA CIRCUIT 8 4x100 +40

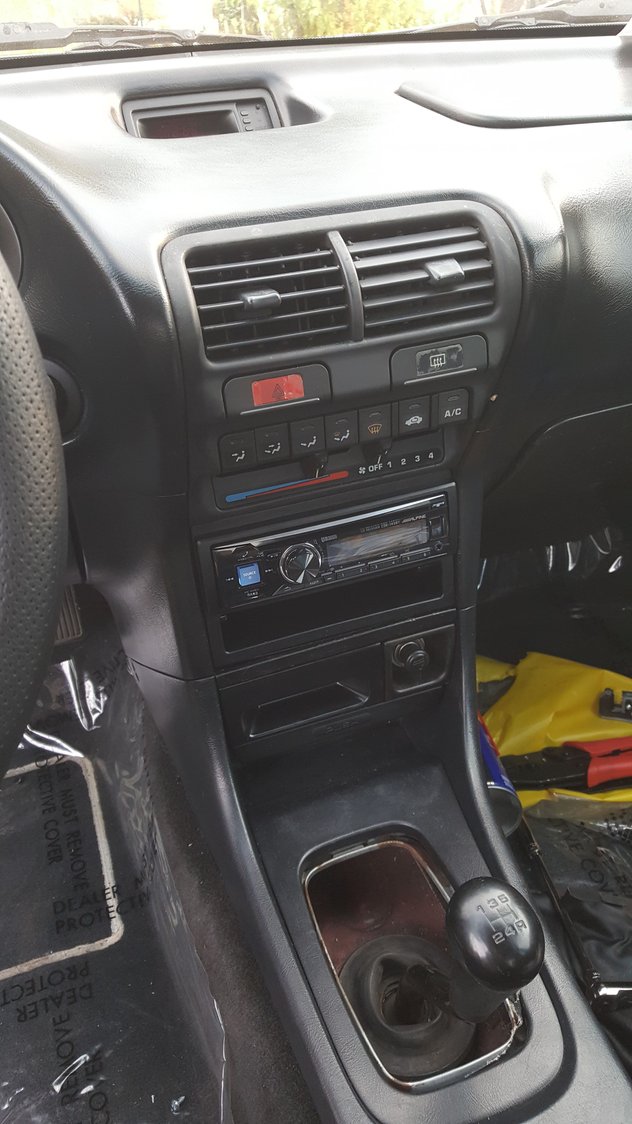

Once I first Purchased the vehicle
Once I first Purchased the vehicle
Once I first Purchased the vehicle
Once I first Purchased the vehicle
