HX engine harness with b18c1 swap??
#1
Honda-Tech Member
Thread Starter
Join Date: Jan 2013
Posts: 192
Likes: 0
Received 0 Likes
on
0 Posts
HX engine harness with b18c1 swap??
Long story short My 00 Si has the obd2a dash harness. The current engine harness i'm using is a POS (previous owner) I have the option of getting a 97 HX M/T harness for $70 which beats buying a obd2a ex harness for $200. I've tried to find what is different from the 2 engine harnesses but couldn't. Does anyone know what would need to be modified so I don't have a CEL. The ecu I'm using is a obd2a p72
#3
If you loved me, you'd all sell me your magic cards to me today
Join Date: Oct 2005
Location: Atlantic Ocean Florida
Posts: 2,698
Likes: 0
Received 0 Likes
on
0 Posts
Re: HX engine harness with b18c1 swap??
you could try running the right ECU, assuming you have a b16a. You need to specify what engine you have though.
#4
Honda-Tech Member
#5
If you loved me, you'd all sell me your magic cards to me today
Join Date: Oct 2005
Location: Atlantic Ocean Florida
Posts: 2,698
Likes: 0
Received 0 Likes
on
0 Posts
Trending Topics
#8
Honda-Tech Member
Thread Starter
Join Date: Jan 2013
Posts: 192
Likes: 0
Received 0 Likes
on
0 Posts
Re: HX engine harness with b18c1 swap??
Thanks for all the quick replies. The cel codes are P0118, P0122, P1337, P0113.
Another thing that bothers me is that there is no knock sensor or any o2 sensors hooked up but the only codes I'm getting are the ones i posted. Probably should have mentioned that at the moment the motor in the car is a jdm b16 as the gsr is getting a rebuild.
Another thing that bothers me is that there is no knock sensor or any o2 sensors hooked up but the only codes I'm getting are the ones i posted. Probably should have mentioned that at the moment the motor in the car is a jdm b16 as the gsr is getting a rebuild.
#9
If you loved me, you'd all sell me your magic cards to me today
Join Date: Oct 2005
Location: Atlantic Ocean Florida
Posts: 2,698
Likes: 0
Received 0 Likes
on
0 Posts
Re: HX engine harness with b18c1 swap??
Thanks for all the quick replies. The cel codes are P0118, P0122, P1337, P0113.
Another thing that bothers me is that there is no knock sensor or any o2 sensors hooked up but the only codes I'm getting are the ones i posted. Probably should have mentioned that at the moment the motor in the car is a jdm b16 as the gsr is getting a rebuild.
Another thing that bothers me is that there is no knock sensor or any o2 sensors hooked up but the only codes I'm getting are the ones i posted. Probably should have mentioned that at the moment the motor in the car is a jdm b16 as the gsr is getting a rebuild.
#11
Honda-Tech Member
Thread Starter
Join Date: Jan 2013
Posts: 192
Likes: 0
Received 0 Likes
on
0 Posts
Re: HX engine harness with b18c1 swap??
#13
Honda-Tech Member
Re: HX engine harness with b18c1 swap??
Not all hx's are 5 wire. Only the 5 speeds. The ex harness is what you need. Unless you can read schematics/pin outs and solder. Even then I'd say you will have a couple hours work in modifying the hx harness.
#14
Honda-Tech Member
Thread Starter
Join Date: Jan 2013
Posts: 192
Likes: 0
Received 0 Likes
on
0 Posts
Re: HX engine harness with b18c1 swap??
Well I just bought a obd2a ex m/t engine harness off ebay for $160. Any thoughts on why I'm not getting mil codes the o2 sensor's or knock sensor?
#15
Technical Hero
Join Date: May 2002
Location: Charlotte, NC, 28227
Posts: 9,876
Likes: 0
Received 28 Likes
on
20 Posts
Re: HX engine harness with b18c1 swap??
You really should have gotten a 99-00. The OBD2a engine harness has 3 plugs and the OBD2b has 2 (and one incorporated into the dash harness). You're going to have a heck of a time trying to repin everything.
As far as your codes go the problem you're probably having is swapped around connectors or lack of sensors (ECT/TW, TPS, CKF, IAT) which getting a new harness won't fix. Is your B18C obd1 or 2? If its OBD1 then there's half your issue right there. The OBD1 B18C1 doesn't have a CKF sensor so you'll have to bypass it. Also the IAT is round and not square like the car's harness you have now so you'll have to swap connectors to plug it it. Your ECT/TW sensor wire either isn't plugged in or the wires have pulled out. You also either has a broken TPS or the TPS and MAP wires are swapped. Here are some pictures of the sensors check and confirm what I said above:
As far as your codes go the problem you're probably having is swapped around connectors or lack of sensors (ECT/TW, TPS, CKF, IAT) which getting a new harness won't fix. Is your B18C obd1 or 2? If its OBD1 then there's half your issue right there. The OBD1 B18C1 doesn't have a CKF sensor so you'll have to bypass it. Also the IAT is round and not square like the car's harness you have now so you'll have to swap connectors to plug it it. Your ECT/TW sensor wire either isn't plugged in or the wires have pulled out. You also either has a broken TPS or the TPS and MAP wires are swapped. Here are some pictures of the sensors check and confirm what I said above:
#17
If you loved me, you'd all sell me your magic cards to me today
Join Date: Oct 2005
Location: Atlantic Ocean Florida
Posts: 2,698
Likes: 0
Received 0 Likes
on
0 Posts
Re: HX engine harness with b18c1 swap??
Out of curiosity why does the car have an OBD2A dash harness?
#18
Technical Hero
Join Date: May 2002
Location: Charlotte, NC, 28227
Posts: 9,876
Likes: 0
Received 28 Likes
on
20 Posts
Re: HX engine harness with b18c1 swap??
Either way I don't think a new engine harness will magically fix those CELs. Oops missed the op that it is an obd2 dash harness but can the op confirm that with a pic?
#19
Honda-Tech Member
Thread Starter
Join Date: Jan 2013
Posts: 192
Likes: 0
Received 0 Likes
on
0 Posts
Re: HX engine harness with b18c1 swap??

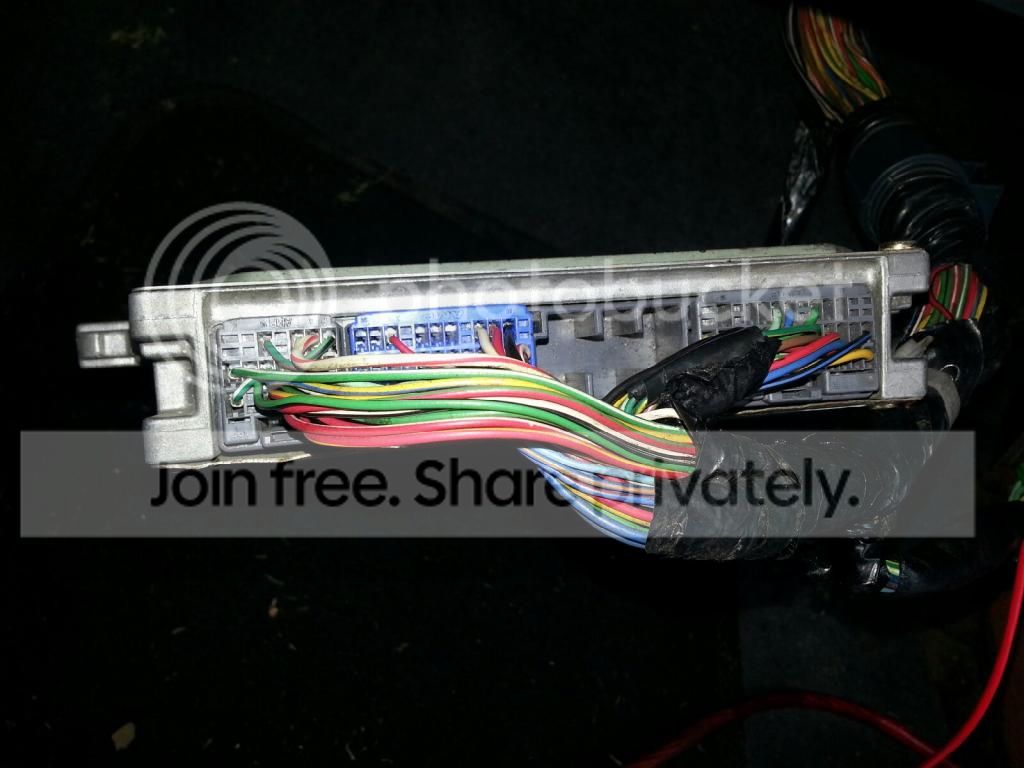

I'm sure it's obd2a but ill upload a picture. The car is a theft recovery and had a d16y8 when i bought it. I let my buddy borrow my harness when we swapped motors and he sold the car before i could take it back. I understand some modifications will need to be done also i live in CA were there is emssion control so i cant have any mil codes. The motor i will be running is a obd1 b18c1 with obd2a p72 ecu.
