EG cluster issues
Hi i ordered a JDM cluster for my 92DX, everything plugs in but i have 1 wire(green) that is all by itself on the cluster that I have no idea where it goes..Everything works on cluster except my tach...

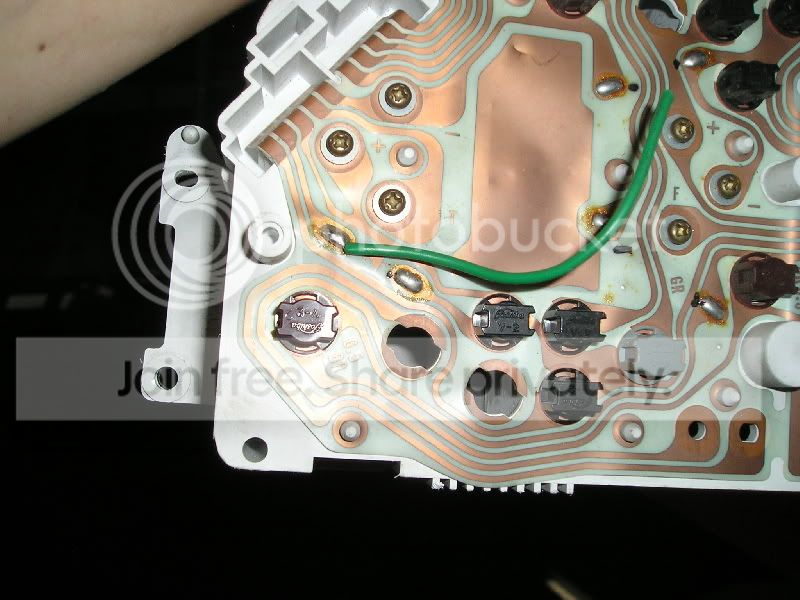

Hete is a pic hopefully that will help...any info is appreciated

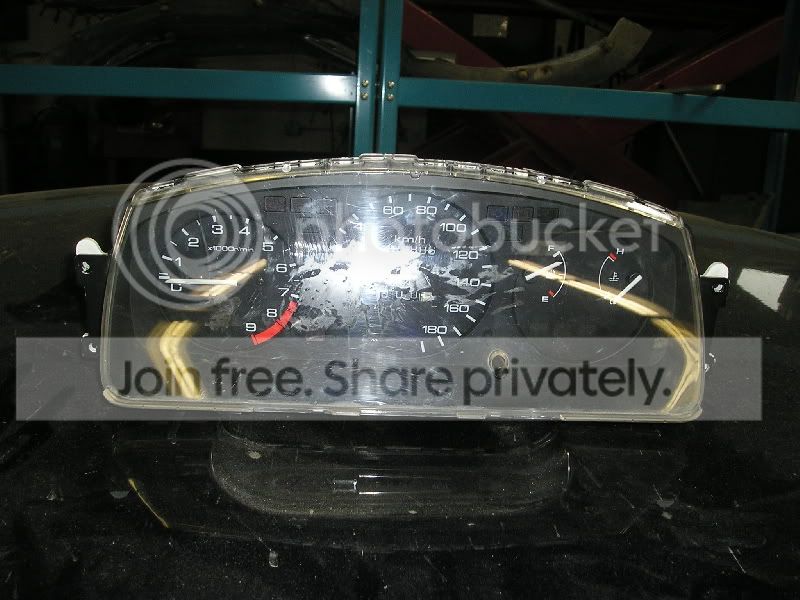

here is last one its not very good of the face
Hete is a pic hopefully that will help...any info is appreciated
here is last one its not very good of the face
07-22-2006, 07:42 AM
#2
Honda-Tech Member
iTrader: (1)
Join Date: Oct 2005
Location: Dont trip.
Posts: 3,818
Likes: 0
Received 0 Likes
on
0 Posts
Re: EG cluster issues (crxcel)
green wire deff dosent look stock?..idk..maybe someone wired an aftermarket tach to the back of the stock tach instead of the blue wire coming out of ur dizzy..and it fucked up tach on the stock clustor? idk.
07-22-2006, 08:12 AM
#3
Honda-Tech Member
Join Date: Nov 2005
Location: Turn Right, CA, US
Posts: 1,694
Likes: 0
Received 0 Likes
on
0 Posts
Re: EG cluster issues (crxcel)
Looks UKDM to me
JDM shouldn't have the yellow connector for the SRS... hope didn't rip you off
Modified by Harryflores at 10:04 AM 7/22/2006
JDM shouldn't have the yellow connector for the SRS... hope didn't rip you off
Modified by Harryflores at 10:04 AM 7/22/2006
07-22-2006, 08:38 AM
#4
Honda-Tech Member
Join Date: Aug 2005
Location: SD Thief KiLLER, ca, thief killer
Posts: 2,182
Likes: 0
Received 0 Likes
on
0 Posts
Re: EG cluster issues (Harryflores)
okay well all i can says is plugn in the stock harness. follow the trace, that goes to the tac wire to the tac hookup connection. then use a trace wire to complete/fix the broken circut.
07-22-2006, 09:05 AM
#5
Honda-Tech Member
Join Date: Dec 2004
Location: Denton, Tx
Posts: 959
Likes: 0
Received 0 Likes
on
0 Posts
Re: EG cluster issues (dem0nk1d)
<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by Harryflores »</TD></TR><TR><TD CLASS="quote">Looks UKDM to me
JDM shouldn't have the yellow connector for the SRS... hope didn't rip you off
Modified by Harryflores at 10:04 AM 7/22/2006</TD></TR></TABLE>
I agree the JDM clusters have white faces.
JDM shouldn't have the yellow connector for the SRS... hope didn't rip you off
Modified by Harryflores at 10:04 AM 7/22/2006</TD></TR></TABLE>
I agree the JDM clusters have white faces.
07-22-2006, 09:54 AM
#6
Honda-Tech Member
Thread Starter
Join Date: May 2006
Location: Canada EH
Posts: 96
Likes: 0
Received 0 Likes
on
0 Posts
Re: EG cluster issues (spoonracer84eg)
Anyone use the EKDM cluster?.. Im not to worriesd it is UKDM as long as it works. Anyone know the factory wires for the tach? ..Colors and such? Or have a link to a Honda Manual?
07-22-2006, 12:40 PM
#7
Honda-Tech Member
Join Date: Aug 2005
Location: SD Thief KiLLER, ca, thief killer
Posts: 2,182
Likes: 0
Received 0 Likes
on
0 Posts
Re: EG cluster issues (crxcel)
why doesn't you just swap all the gauges out with your stock cluster. just like converting a dx cluster to si, and keeping your stock dx cluster.. it should be no different.
Trending Topics
07-22-2006, 03:39 PM
#11
Re: EG cluster issues (crxcel)
<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by crxcel »</TD></TR><TR><TD CLASS="quote">Anyone use the EKDM cluster?.. Im not to worriesd it is UKDM as long as it works. Anyone know the factory wires for the tach? ..Colors and such? Or have a link to a Honda Manual?
</TD></TR></TABLE>
First off, it is USDM with a JDM speedometer and cluster bezel. The wire that's soldered there goes to pin B9, which is the pin for the trunk ajar light (which is also green). Why they soldered it there is beyond me.
<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by spoonracer84eg »</TD></TR><TR><TD CLASS="quote">
I agree the JDM clusters have white faces.</TD></TR></TABLE>
Only the EG6 had white faces, everything else was black with red needles.
</TD></TR></TABLE>
First off, it is USDM with a JDM speedometer and cluster bezel. The wire that's soldered there goes to pin B9, which is the pin for the trunk ajar light (which is also green). Why they soldered it there is beyond me.
<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by spoonracer84eg »</TD></TR><TR><TD CLASS="quote">
I agree the JDM clusters have white faces.</TD></TR></TABLE>
Only the EG6 had white faces, everything else was black with red needles.
07-22-2006, 03:44 PM
#12
Junior Member
Join Date: Jun 2006
Location: L.A, CA, USA
Posts: 208
Likes: 0
Received 0 Likes
on
0 Posts
Re: EG cluster issues (WhiteOut)
<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by WhiteOut »</TD></TR><TR><TD CLASS="quote">green wire deff dosent look stock?..idk..maybe someone wired an aftermarket tach to the back of the stock tach instead of the blue wire coming out of ur dizzy..and it fucked up tach on the stock clustor? idk.</TD></TR></TABLE>
try to return it.
try to return it.
