Civic EK4 Dimmer Switch Question
#1
Honda-Tech Member
Thread Starter
Join Date: Nov 2014
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Civic EK4 Dimmer Switch Question
I have a '98 Civic EK4 B16a2, which for some reason didnt come with the dimmer interior light switch, nor with the original foglights, so those two switches have a black cap on them.
I bought the dimmer switch from a scarp yard, used one, with the idea that the cable would be somewhere already wired, but aparently it does not, I checked everywhere and i cannot find any plug with 3 wires that fit the dimmer switch.
Does anyone know if its easy and possible to wire this up?
Strange part comes that there is a plug hanging there, that has the perfect length to be the dimmer one, factory and never used, but it has 5 legs and only 4 of them have wire, i have no idea where it belongs, below are the images..
I bought the dimmer switch from a scarp yard, used one, with the idea that the cable would be somewhere already wired, but aparently it does not, I checked everywhere and i cannot find any plug with 3 wires that fit the dimmer switch.
Does anyone know if its easy and possible to wire this up?
Strange part comes that there is a plug hanging there, that has the perfect length to be the dimmer one, factory and never used, but it has 5 legs and only 4 of them have wire, i have no idea where it belongs, below are the images..
#3
Honda-Tech Member
Thread Starter
Join Date: Nov 2014
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Re: Civic EK4 Dimmer Switch Question

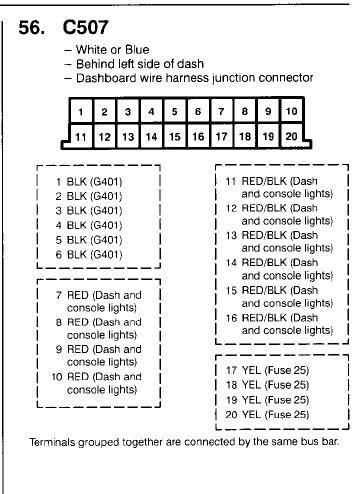

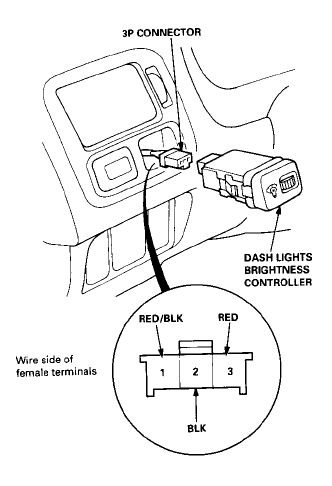

Ron, thank you very much, that is usefull information, but im not sure i totally understood it. As per those diagram i should need to find the C507 connector with has 20-pin plug, and 3 wires should come out from there ( or i need to wire them if not exist ) to the 3 pin connector of the dimmer ?
will see if i find c507 tomorrow first.
will see if i find c507 tomorrow first.
#5
Honda-Tech Member
Thread Starter
Join Date: Nov 2014
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Re: Civic EK4 Dimmer Switch Question
That is a little weird, as mine does not have Cruise, and we all know that involves a little more than the switch/wires, but maybe the wire is there just in case.
What i found interesting is that the hazzard/defrogger switches plug are not always the same, i bough a new one in ebay since mine had scratches and plug doesnt match, looks like there are different years plugs... so maybe the Dimmer switch has the same problem.
What i found interesting is that the hazzard/defrogger switches plug are not always the same, i bough a new one in ebay since mine had scratches and plug doesnt match, looks like there are different years plugs... so maybe the Dimmer switch has the same problem.
#6
#7
Honda-Tech Member
Thread Starter
Join Date: Nov 2014
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Re: Civic EK4 Dimmer Switch Question
Maybe is the dimmer connector after all, but the connector is not the same between 96-98 and 99-00 years (or between EM1 and EK4 models)... i will try to dig further.
