Yes I've searched. I bought my car with this unit installed.

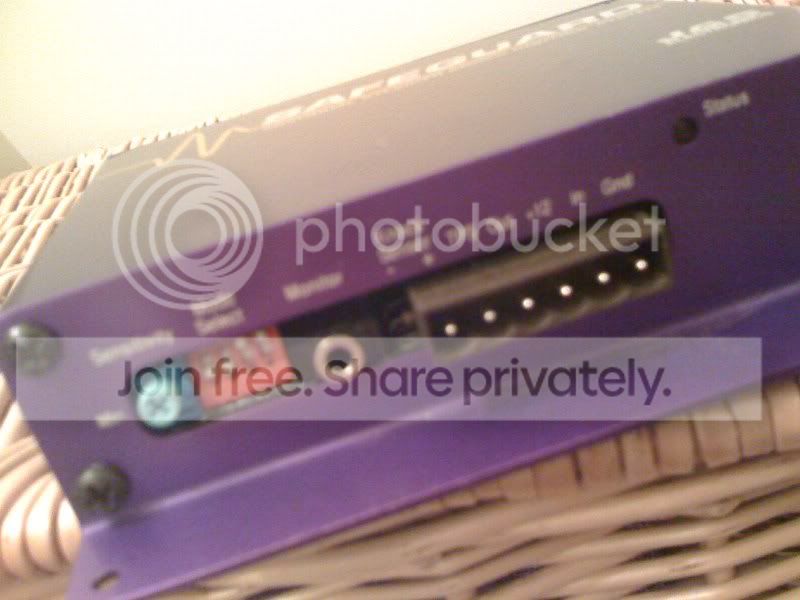

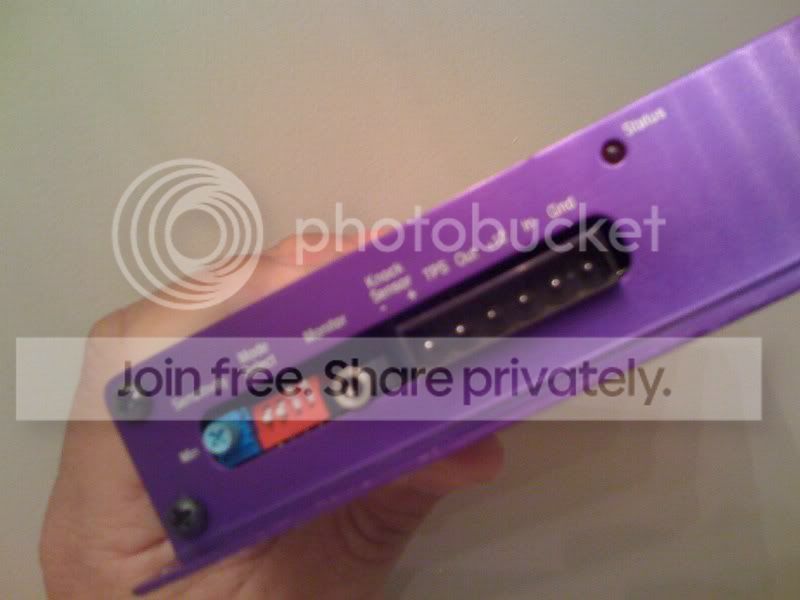

Sorry for the phone pics:




I know it's not Version 2 because it doesn't support map. It is an older unit, has a RECTANGULAR, not 2 1/16 dual monitor for knock and A/F. What version is this?

Someone was talking about the dip switch settings but mentioned up to 6 switches, obviously this has 4.

Importantly, using the stock knock sensor, the system reads knock when I hit vtec and severely retards the timing even though its just normal noise. I do have the supplied knock sensor that isn't used. People say stick with the stock sensor. Is it any less/more sensitive than stock, and where the hell do you mount this sensor? I read you're supposed to wire an "aux" of this unit to the vtec wire to ignore vtec noise, but clearly mine doesn't have that.

any advice?



;-)





call Jhon at J&S somewhat hard to get ahold of, but he LOVES to talk about his products he'll be able to tell you all about it, i know the version 2 has a spot to hook up a signal wire so the unit knows when vtak engages.... (i have the version 2)



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by B20luda &raquo;</TD></TR><TR><TD CLASS="quote">call Jhon at J&S somewhat hard to get ahold of, but he LOVES to talk about his products he'll be able to tell you all about it, i know the version 2 has a spot to hook up a signal wire so the unit knows when vtak engages.... (i have the version 2)</TD></TR></TABLE>
Got his number on hand? Sorry if i'm too ignorant to look myself, people on this board like to snap sometimes



That unit was probably made in '98. Switches 3 and 4 both up for Honda.

TPS input is used to disable knock detection when TPS voltage is less than 1.5v.

Newer units had a VTEC input pin, to temporarily desensitize during VTEC engagement.

I could reprogram the TPS pin to do that.



just out of curiosity is "ultraspeed" meant as in "team ultraspeed"?



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by EASY101 &raquo;</TD></TR><TR><TD CLASS="quote">just out of curiosity is "ultraspeed" meant as in "team ultraspeed"?

</TD></TR></TABLE>
Yes it is, why?

And thanks John, what do the first 2 dip switches do? Should I leave the first one up as I saw from your archived instructions?



because a few of my old friends that I used to hang out with were members of team ultraspeed.



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by John at J&S &raquo;</TD></TR><TR><TD CLASS="quote">
I could reprogram the TPS pin to do that.
</TD></TR></TABLE>

Dizzam, I wish I knew that before I sold mine long ago.
