Default Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

We were given an opportunity to test out the lastest popular budget headers for the Bseries recently. All but the Skunk2 Alpha are designs that are replicas of the real deal.



Our test subject is a sexy 91 CRX SI with a stock 98 Spec JDM ITR Swap. Big thanks to Mickey G for letting us use his car.(Green CRX)



Mods include a Hondata S300 and an intake. We baselined using the OEM 4-1 header and used our 3 inch exhaust dump for every header.
Our test subjects are
OEM 4-1
RMF narrow
Hytech Small Tube
Skunk2 Alpha
Toda Replica
SMSP replica




To make the exhaust install and make everything easier we went ahead and hooked our 3 inch dump to the car. Each header is tuned for consistency.

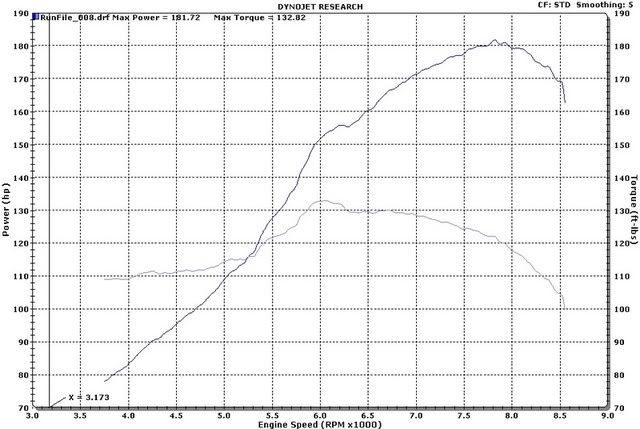

Here is our baseline using the OEM 4-1 98 Spec Header

181/132 Pretty much what a stock ITR puts out.

Next up was the SMSP replica. Ground clearance is sweet, the design looks smaller and constructed much different from the real deal B19

Red Line is SMSP Replica / Blue Line is JDM ITR

Next up is RMF Narrow Replica. Fits nice, ground clearance is decent.

Red Line is RMF Narrow Replica / Blue Line is JDM ITR

Next up is Hytech Replica. Fitment is good, ground clearance is rough.

Blue Line is Hytech Replica / Green Line is JDM ITR


Next up is Skunk2 Alpha. Fitment is good, Ground clearance isnt the best, construction is great for the price.

Red Line is Skunk2 Alpha / Blue Line is JDM ITR


Next up is Toda Replica. Great Fitment, Good ground clearance - Simple and works.

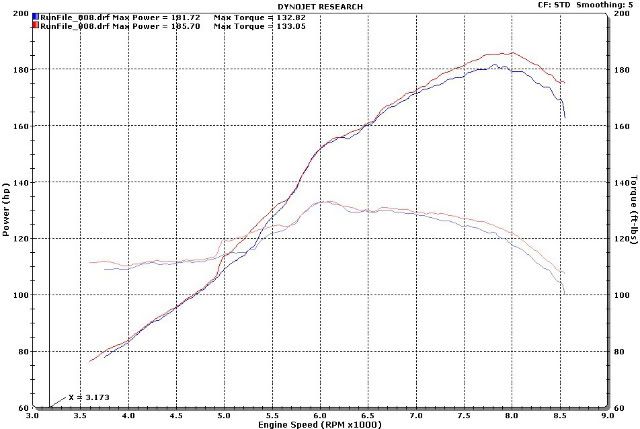

Red Line is Toda Rep / Blue Line is JDM ITR

Here are some comparisons.....for the sake of comparisons

Hytech Replica vs. Skunk2 Alpha(The big header pairing debate!)

Blue Line is Hytech Replica / Red Line is Skunk2 Alpha - Midrange characteristic was similar when i threw the Skunk Alpha on a big 2.0L

Toda Fakie vs. Skunk2 Alpha

Red Line is Toda Fakie / Blue Line is Skunk2 Alpha

Toda Fakie vs. SMSP Replica

Red Line is Toda Fakie / Blue Line is SMSP Replica

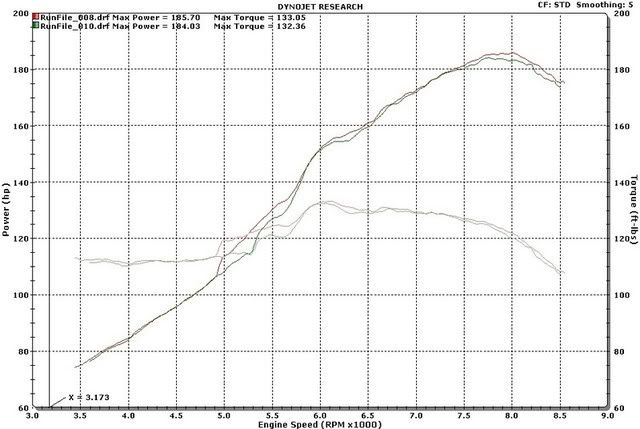

RMF Narrow Replica vs Toda Fakie

Red Line is Toda Fakie / Green Line is RMF Narrow Replica

Toda Fakie vs. Hytech Replica

Red Line is Toda Fakie / Blue Line is Hytech Replica


Here is a cluster of all of them overlayed


Each header was individually tuned on the same day in a 3 hour window. Results will vary once modifications are done to the engine.


Any questions or suggestions on what might work for you please feel free to PM me. Also it'd be cool if you bought your header from someone who knows whats going to work instead of some kid selling parts out of his moms basement.

If there is a header needed for a specific setup there are a handful of really good header designers around here. Randy (NAH2B), SSR, ASP, SMSP, Hytech..etc..etc. If you're spending a ton of money on a nice built engine......compliment it with a custom header.
MikeySpec is offline   Reply With Quote
Old 12-06-2011, 08:25 AM   #2
Dos Pupusas
iTrader: (1)

Aesthetic Gains's Avatar

Join Date: Mar 2004
Location: Greenwich, CT
Posts: 704
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

Thanks for sharing.
Aesthetic Gains is offline   Reply With Quote
Old 12-06-2011, 08:26 AM   #3
Honda-Tech Member

koczeka's Avatar

Join Date: May 2004
Location: Dunakeszi, Hungary
Posts: 891
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

Nice job, good info!
Skunk2... lol again
koczeka is offline   Reply With Quote
Old 12-06-2011, 08:30 AM   #4
Honda-Tech Member

crazydominicanman's Avatar

Join Date: Oct 2008
Location: Somewhere in Florida
Posts: 880
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

God how this header thread has helped me!! I was really debating on the Skunk2 vs. the Toda rep but I think I'll stick with the Skunk2 in that my build is prominently already Skunk2. Here's a basic run-down, and I think the Skunk2 Alpha will really shine on my build.
crazydominicanman is offline   Reply With Quote
Old 12-06-2011, 08:31 AM   #5
Honda-Tech Member
iTrader: (3)

GagnarTheUnruly's Avatar

Join Date: Sep 2009
Location: Raleigh NC
Posts: 3,821
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

Sweet I was looking forward to this test
GagnarTheUnruly is offline   Reply With Quote
Old 12-06-2011, 09:39 AM   #6
Honda-Tech Member

vtibrazil's Avatar

Join Date: Mar 2004
Location: rio de janeiro, rj, brazil
Posts: 182
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

Great test and only makes me happier I have a TODA rep....
vtibrazil is offline   Reply With Quote
Old 12-06-2011, 09:39 AM   #7
Honda-Tech Member
iTrader: (1)

System Lord's Avatar

Join Date: Sep 2008
Posts: 1,032
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

I thought u were done posting tech here, thank God u can't stay away it was getting lonely
System Lord is offline   Reply With Quote
Old 12-06-2011, 09:48 AM   #8
Honda-Tech Member

cibao2ner's Avatar

Join Date: Nov 2007
Location: bronx, ny, usa
Posts: 1,465
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

you should have done the bisimoto rep also....i was comparing this to my graph and they all kill my built lsvtec in the midrange by 5-10whp...
cibao2ner is offline   Reply With Quote
Old 12-06-2011, 09:56 AM   #9
H-T Basic Sponsor
iTrader: (1)

Gearspeed-Performance's Avatar

Join Date: Feb 2004
Location: Rancho Cucamonga, CA
Posts: 5,901
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

Mikey always coming through for our community and putting out solid knowledge
__________________
Gearspeed Honda/Acura Tranmission Parts and Performance - www.gearspeedwholesale.com - 909-476-7252
*Rebuild Kits*LSD*Carbon Synchros*Gears*Final Drives*Trans building*
Gearspeed-Performance is offline   Reply With Quote
Old 12-06-2011, 10:02 AM   #10
Honda-Tech Member
Thread Starter

MikeySpec's Avatar

Join Date: May 2001
Location: Chicago, IL, USA
Posts: 3,347
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

Quote:
Originally Posted by System Lord View Post
I thought u were done posting tech here, thank God u can't stay away it was getting lonely
IE **** on my original posting on the PFforum. I still have to crosspost this onto my forum in a few.


Quote:
Originally Posted by cibao2ner View Post
you should have done the bisimoto rep also....i was comparing this to my graph and they all kill my built lsvtec in the midrange by 5-10whp...
LOL! You try fitting a bisi header in an immaculate CRX engine bay with a full sized radiator. You're right though...it would've been interesting and i do have one here....but we know it would've lost some mid and it might've had a chance to make some power up top.

Quote:
Originally Posted by [email protected] View Post
Mikey always coming through for our community and putting out solid knowledge
Thanks babe, remember that time we slept in the same bed and our arms rubbed together? I do.
MikeySpec is offline   Reply With Quote
Old 12-06-2011, 10:09 AM   #11
Honda-Tech Member

DDTECH's Avatar

Join Date: Aug 2009
Location: Baton Rouge,Louisiana
Posts: 7,637
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

GJ mikey. Thx for sharing. Should prove they are really all decent headers for being replicas..
DDTECH is offline   Reply With Quote
Old 12-06-2011, 10:11 AM   #12
Honda-Tech Member

SL0WEGG's Avatar

Join Date: Apr 2004
Location: Minnesota
Posts: 7,489
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

Good stuff Mikey
SL0WEGG is offline   Reply With Quote
Old 12-06-2011, 10:15 AM   #13
Honda-Tech Member

th3pwn3r's Avatar

Join Date: Apr 2008
Location: Chicago, Illinois, United States
Posts: 908
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

Quote:
Originally Posted by cibao2ner View Post
you should have done the bisimoto rep also....i was comparing this to my graph and they all kill my built lsvtec in the midrange by 5-10whp...
Haha, I'm sure the Bisi guys would have chimed in if it didn't produce the best results in the test.

And lol Mikey, you know that wasn't your arms that rubbed together.
th3pwn3r is offline   Reply With Quote
Old 12-06-2011, 10:27 AM   #14
Honda-Tech Member

slowsleeper's Avatar

Join Date: Mar 2004
Posts: 1,176
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

Thanks for sharing, hytech reps aren't as bad as people made it seem then. Toda fakie showed nice results.
slowsleeper is offline   Reply With Quote
Old 12-06-2011, 10:41 AM   #15
Honda-Tech Member

cibao2ner's Avatar

Join Date: Nov 2007
Location: bronx, ny, usa
Posts: 1,465
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

from the graph there really isnt a big difference with none of them...just get the replica you like the most...cause unlike my 800 dollar header they all have a smooth midrange that keeps climbing...
cibao2ner is offline   Reply With Quote
Old 12-06-2011, 10:48 AM   #16
Honda-Tech Member
iTrader: (3)

GagnarTheUnruly's Avatar

Join Date: Sep 2009
Location: Raleigh NC
Posts: 3,821
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

Were there any clear winners in terms of materials or workmanship?
GagnarTheUnruly is offline   Reply With Quote
Old 12-06-2011, 10:52 AM   #17
Honda-Tech Member

slowsleeper's Avatar

Join Date: Mar 2004
Posts: 1,176
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

^^I would think Skunk would win that??
slowsleeper is offline   Reply With Quote
Old 12-06-2011, 11:17 AM   #18
Honda-Tech Member

93egSLEEPER's Avatar

Join Date: Apr 2007
Location: Seahawks WA, USA
Posts: 7,611
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

Thanks for the time and testing Mikey! I was honestly surprised the RMF narrow (what I'm running on my 1.8) was only out performed by the toda peak numbers wise.
93egSLEEPER is offline   Reply With Quote
Old 12-06-2011, 11:38 AM   #19
Honda-Tech Member

negusjuda's Avatar

Join Date: Mar 2009
Location: wilkes-barre , pa
Posts: 3,384
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

i tell ya i love the allmotor forum so much knowledge and help on here cant thank you guys enough keep up the great work mikey
negusjuda is offline   Reply With Quote
Old 12-06-2011, 11:40 AM   #20
Honda-Tech Member

negusjuda's Avatar

Join Date: Mar 2009
Location: wilkes-barre , pa
Posts: 3,384
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

i wanna test a alpha against my real smsp on my mild b20 vtec setup maybe i will purchase a alpha down the road and see
negusjuda is offline   Reply With Quote
Old 12-06-2011, 12:05 PM   #21
Honda-Tech Member

todahead's Avatar

Join Date: Oct 2010
Location: Hellas
Posts: 199
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

concrats profunction !
i feel sad for my rmf narrow right now ..
3'' exhaust did it very well too...
todahead is offline   Reply With Quote
Old 12-06-2011, 01:34 PM   #22
Honda-Tech Member

Furyof4's Avatar

Join Date: Nov 2003
Location: SE, PA, usa
Posts: 1,743
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

As always Mikey is the man for doing the testing and sharing it for all to see.

Furyof4 is offline   Reply With Quote
Old 12-06-2011, 01:48 PM   #23
Honda-Tech Member

Fink29's Avatar

Join Date: Oct 2005
Location: Boston, Ma, USA
Posts: 758
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

Mikey, You are the man once again. Also please thank the staff as well.
Fink29 is offline   Reply With Quote
Old 12-06-2011, 02:39 PM   #24
Honda-Tech Member

mikesrex's Avatar

Join Date: Jul 2002
Location: Port Arthur, TX, USA
Posts: 1,364
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

great thread! Makes me wonder if I should throw the RMF narrow fakie on the CRX instead of opting for a Toda rep or a Skunk2 header.

and thanks for leaving out the Bisimoto header. We didn't need Bisi coming in here telling us how he is an engineer lol
mikesrex is offline   Reply With Quote
Old 12-06-2011, 02:52 PM   #25
Honda-Tech Member

Join Date: Oct 2011
Posts: 9
Default Re: Budget Header Showdown - Replica Headers vs. Skunk2 Alpha 1.8L Dyno Test

would have liked to see a 2.5" instead of 3"
JDMC_DUSTY is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
ProFunction Dyno Testing Report - Headers and Intake Manifolds on a 85X89 Bseries MikeySpec All Motor / Naturally Aspirated 126 07-21-2011 08:03 AM
ProFunction Presents Bseries Intake Manifold Tests Version 2.0(L) Endyn Edelbrock ITR MikeySpec All Motor / Naturally Aspirated 152 12-12-2010 03:31 PM
Taiwanese Header Showdown!- TDM Hyech Big Tube Copy vs. Spark Racing SMSP Copy MikeySpec All Motor / Naturally Aspirated 33 12-05-2010 06:46 PM
Skunk2 Stage 1 Cams in a K20a3 Supercharged- Dyno Inside MikeySpec Forced Induction 9 03-28-2009 08:06 AM
Edelbrock VictorX for GSR Heads MikeySpec Classifieds: Forced Induction 7 01-07-2009 10:42 AM


Tags
2000, alpha, blue, civic, crx, header, honda, httpwwwjdm, hytech, jdm, plm ta, plm toda rep, replica, si, sinet, skunk, smsp, stock

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -8. The time now is 11:00 PM.



  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
