Help with Pivot Tachometer Install

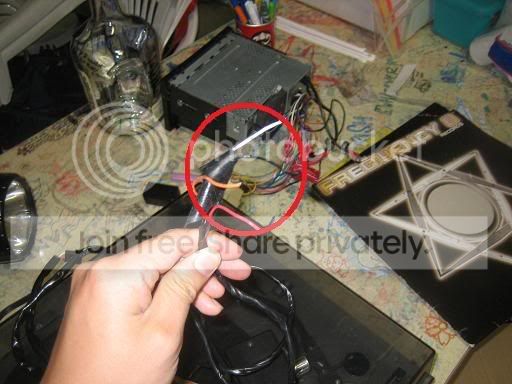

So my friend gave me his Pivot Tachometer but he doesent remember how to wire it back up to a Integra....also It didnt come with any instructions.. all I know is that it has 4 wires...White / Black / Red / ORange .... I believe Black is Ground and Red is to a 12v source... but where do i hook up the other two wires???

Pix will be helpful.....Thanks in Advance

Reply Like

08-19-2007, 02:10 AM

BlueIntegraBoy

Honda-Tech Member

iTrader: (5)

Join Date: Apr 2003

Location: Las Vegas

Posts: 23,967

Likes: 0

Received 7 Likes on 5 Posts

Re: Help with Pivot Tachometer Install (PhantomX)

All wires can be hooked up to wires behind the gauge cluster.

<u>Tachometer Wire ---> Cluster Harness Wire</u>
Black ---> Black (or dash bolt) [ground]
White ---> Red/Black [illumination]
Red ---> Black/Yellow [12v]
Orange ---> Blue [signal]

Reply Like

08-19-2007, 12:26 PM

PhantomX

Honda-Tech Member

Thread Starter

Join Date: Jan 2004

Location: San Jose, Ca, usa

Posts: 563

Likes: 0

Received 0 Likes on 0 Posts

Re: Help with Pivot Tachometer Install (BlueIntegraBoy)

ok kool... thanks

Reply Like

08-20-2007, 07:55 PM

PhantomX

Honda-Tech Member

Thread Starter

Join Date: Jan 2004

Location: San Jose, Ca, usa

Posts: 563

Likes: 0

Received 0 Likes on 0 Posts

Re: Help with Pivot Tachometer Install (PhantomX)

for the BLUE "signal" wire.... do i tap it to the harness that only has 3 wires? (farthest yellow harness to the right if you were facing the gauge cluster)
