I'm trying to finish this swap I need some help with identifying a few connectors. I'm running a D16y8 harness. Sorry the pix are a little blurry.

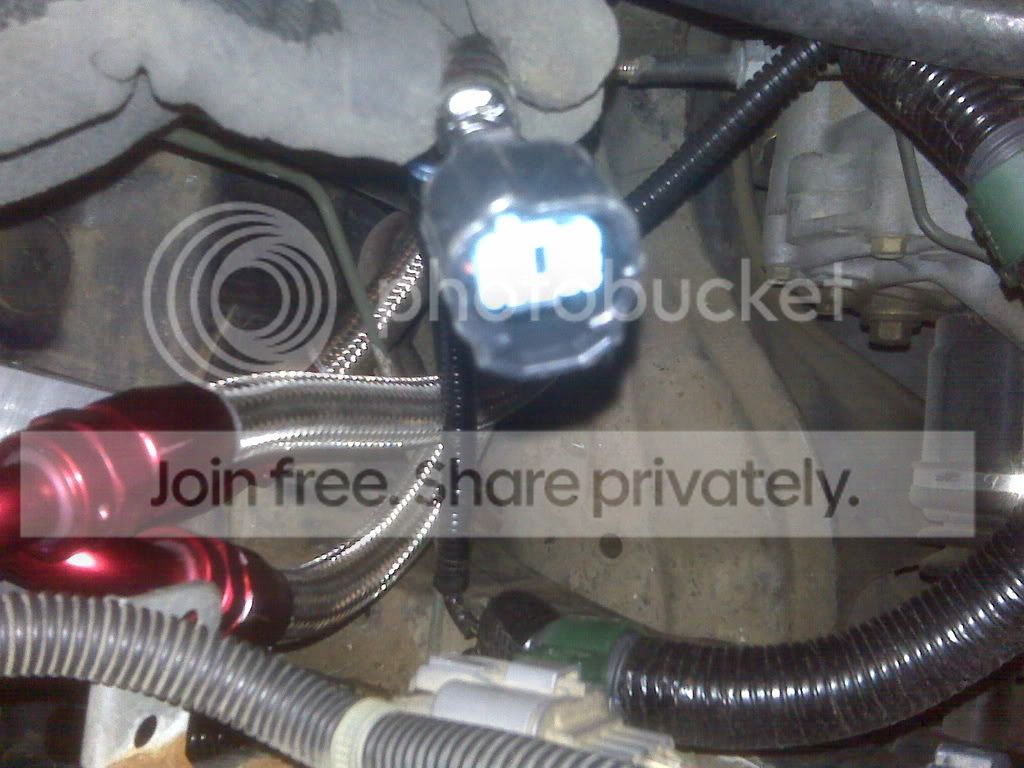

This first one is down near the alternator. It's a three prong connector.


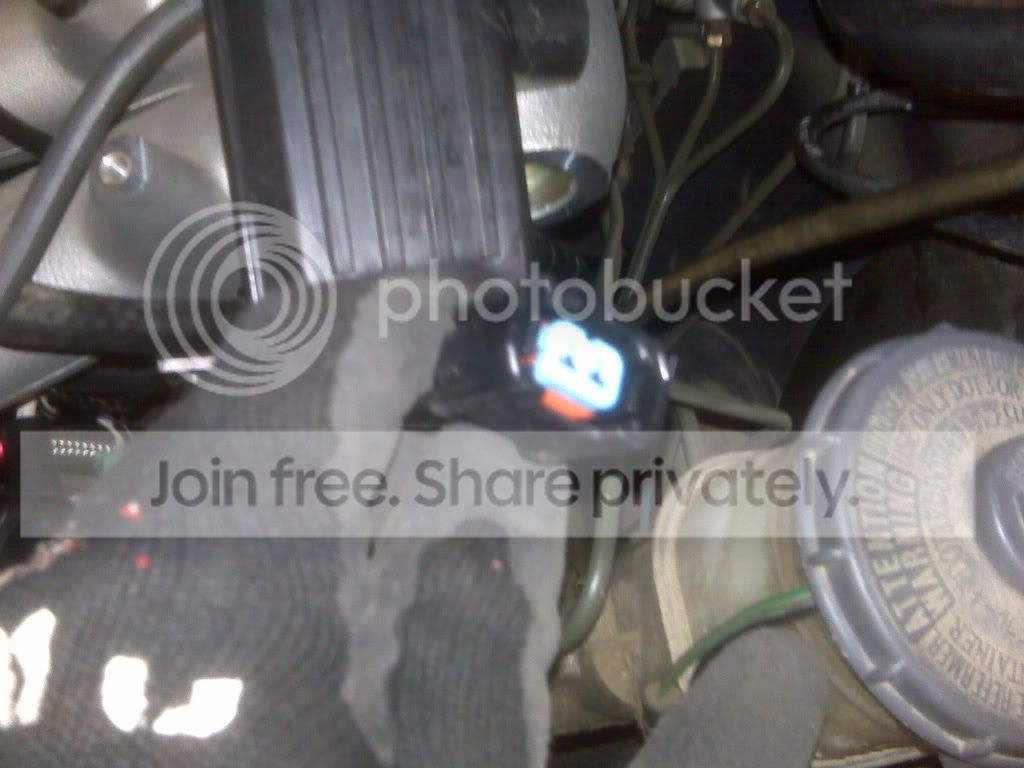

This next one is located near the battery.


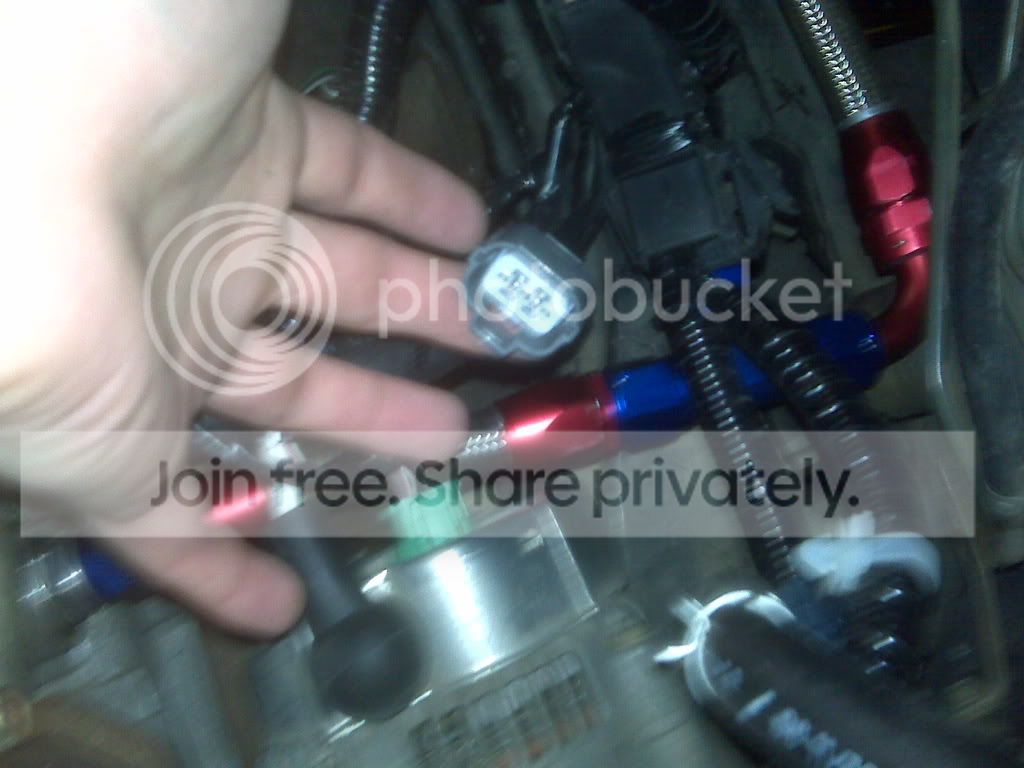

This plug is located near the distributor plug.


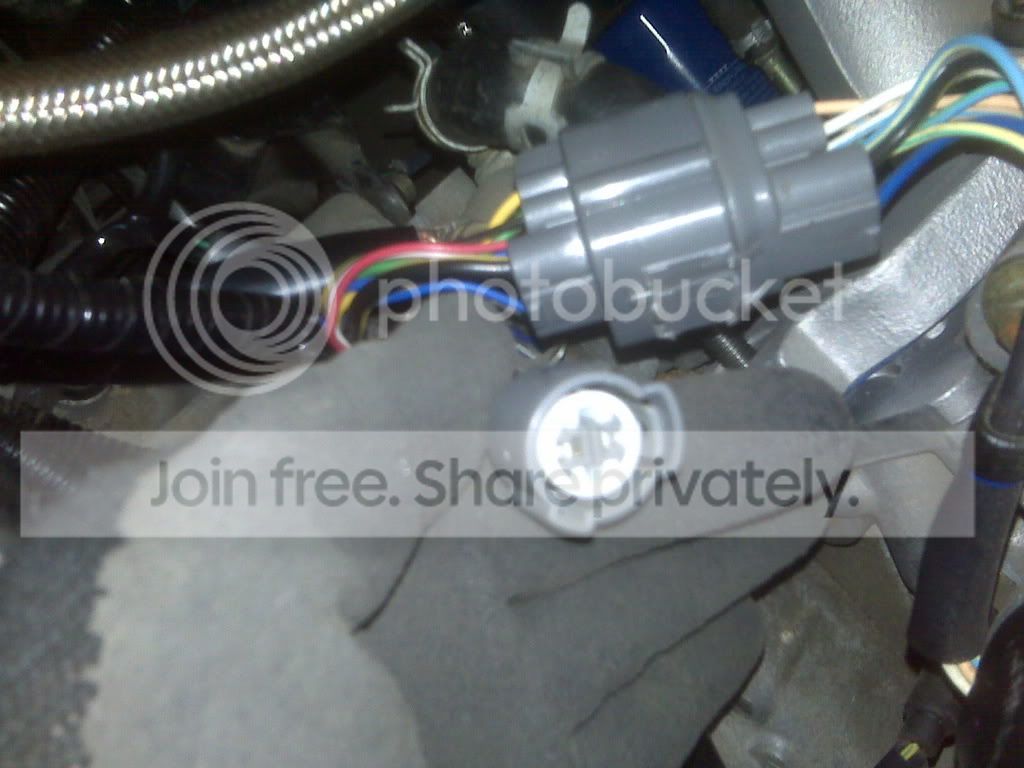

This plug is near the MAP sensor plug.


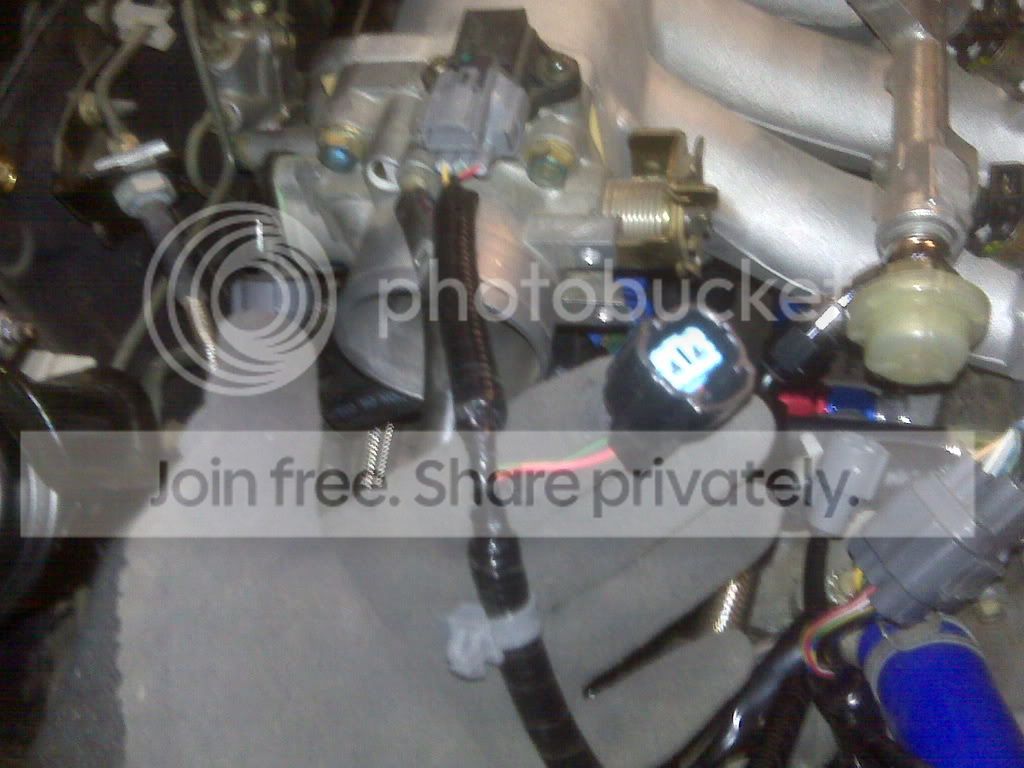

And lastly, this plug is on near the injector plugs and looks like an injector plug. Except, I have all four of the injector plugs.



well that first one looks like a connector for crank sensor for obd2 engines, the second one looks like the connector for evap canister vent valve. The third might be vtec pressure sensor or coolant temp for the head. The forth is intake air temperature sensor and the last one is for evap purge control solenoid. hope that helps.



That is very helpful. I can't find the evap canister vent valve and I already have plugs for the vtec pressure sensor and coolant temp. I guess my next question would have to be what will I have to have for my gsr swap to run right? I'm going to be running a conversion harness and chipped P28.



morning bump



Noon bump



what color are the wires from the plug near the distributor?



I'll take a look tomorrow and let you know. I'm still wondering what i'd need to have my swap up and running. Does a Gsr have a crankshaft position sensor or does it use the sensors in the dizzy?
Any help is greatly appreciated, i'd really like to get this runnng.
