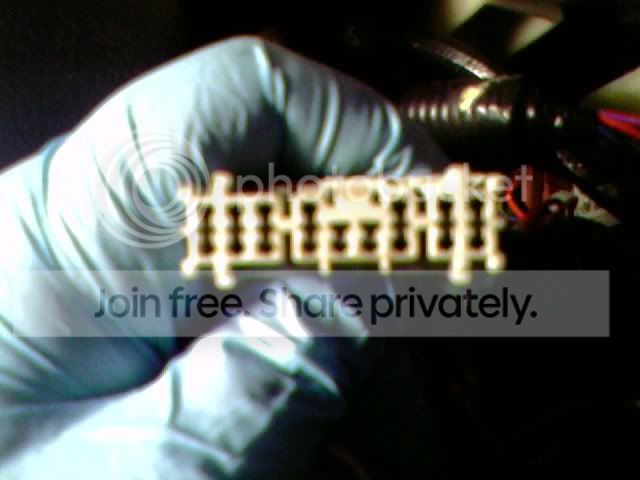

Ok, so installing my EL dash harness for my EL gauges, I noticed something. I have 2 plugs left over, 1 I know is supposed to be left over, and I am supposed to ground the blk wire, but I do not know where this big plug goes. It is a big plug, grey in color, and only 4 wires leading to it. I called my friend who has both a 92 lude S model and a 92 Si in which he did the EL conversion, and he looked under his dash on his S model, and said it had 1 less plug than his Si...

so I ask you, what is this for?



car is a 92 S model btw



all these views and no one knows?



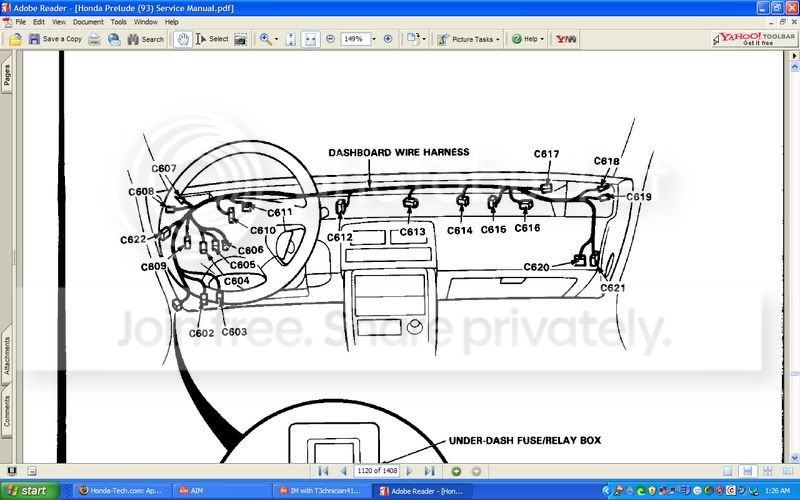

well...here is what helms shows...you see there are only 2 plugs on the right side under the dash. that is because my helms is for a 93 vtec, before they had EL gauges



Im not sure which plug is which, both are in the same location...

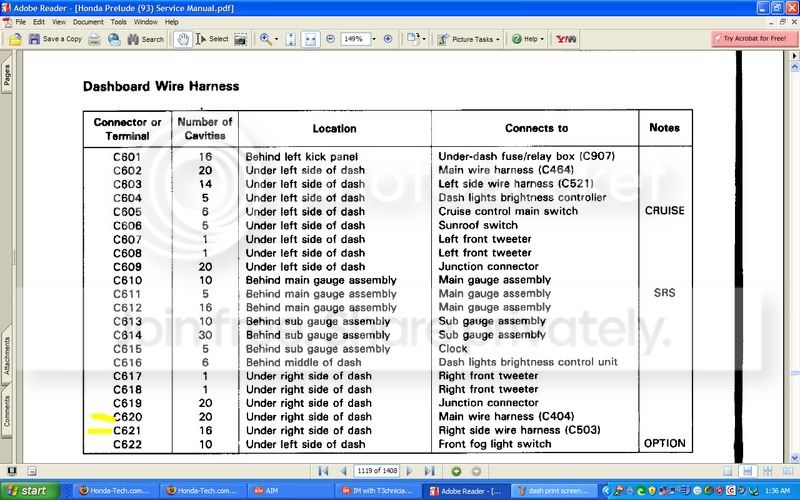

plug C620 says it has 20 cavities and that it is part of the main wire harness(C404)
plug C621 says it has 16 cavities and that it is part of right side wire harness(C503)



so I think its the 16 cavity plug Im not sure about, but helms just says it goes to the dash harness, doesn't say anything about what it controls. someone please help!



nothing?



Is everything working correctly in the car?



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by Hawkze_2.3 &raquo;</TD></TR><TR><TD CLASS="quote">Is everything working correctly in the car? </TD></TR></TABLE>

well...the fusebox/battery are not in the car at the moment, and neither is the engine. bay is completely empty. Should I hook it up and try and see what works and what doesnt?

also, would you happen to know what this plug is for and why the SI/vtec has it but the S doesn't?



this is pissing me off, it does not say what it controls! just says it connects to the dash harness



Man, I don't remember for sure. I've been all through those wires and it seems but I don't remember exactly what that one does...I would wait until you get power and just see what doesn't work if anything. It might be un-used.



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by Hawkze_2.3 &raquo;</TD></TR><TR><TD CLASS="quote">Man, I don't remember for sure. I've been all through those wires and it seems but I don't remember exactly what that one does...I would wait until you get power and just see what doesn't work if anything. It might be un-used.</TD></TR></TABLE>

see...my S harness didn't have that plug, but the vtec EL seems to have it. and helms is really pissing me off.

BTW, in the middle of doing my manual rack, i cant seem to get this second snap ring off to get the pinion out, any pointers? BTW, I dont have any snap ring pliers



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by .BigSexy &raquo;</TD></TR><TR><TD CLASS="quote">
BTW, in the middle of doing my manual rack, i cant seem to get this second snap ring off to get the pinion out, any pointers? BTW, I dont have any snap ring pliers</TD></TR></TABLE>

Get some snap-ring pliers, haha. I had to get some too....



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by Hawkze_2.3 &raquo;</TD></TR><TR><TD CLASS="quote">

Get some snap-ring pliers, haha. I had to get some too....</TD></TR></TABLE>

I got the big off with some needle nose, it poper off and hit me in the face. the smaller one is freaking hard



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by .BigSexy &raquo;</TD></TR><TR><TD CLASS="quote">

I got the big off with some needle nose, it poper off and hit me in the face. the smaller one is freaking hard</TD></TR></TABLE>

you think its hard taking them off with no snap ring pliers...wait til you try to put them back on without the right tool...goodluck



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by snowblind7x &raquo;</TD></TR><TR><TD CLASS="quote">

you think its hard taking them off with no snap ring pliers...wait til you try to put them back on without the right tool...goodluck</TD></TR></TABLE>

ill have some for that phase of the project



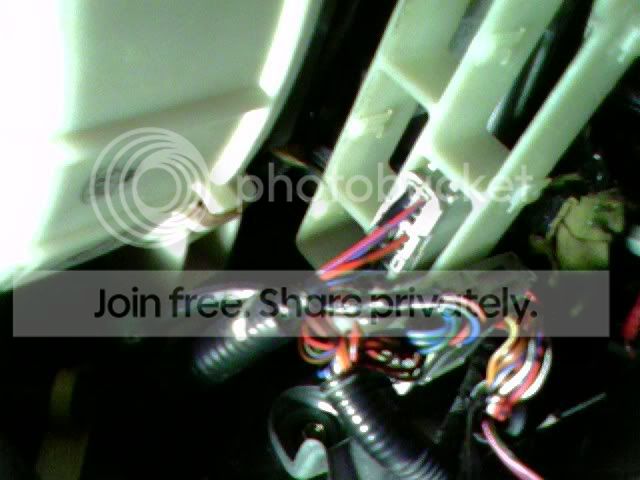

what color are those wires? I can't tell from the pic but I just looked on my 92 lude and it looks like I got that plug hangin there too. (92Si btw)



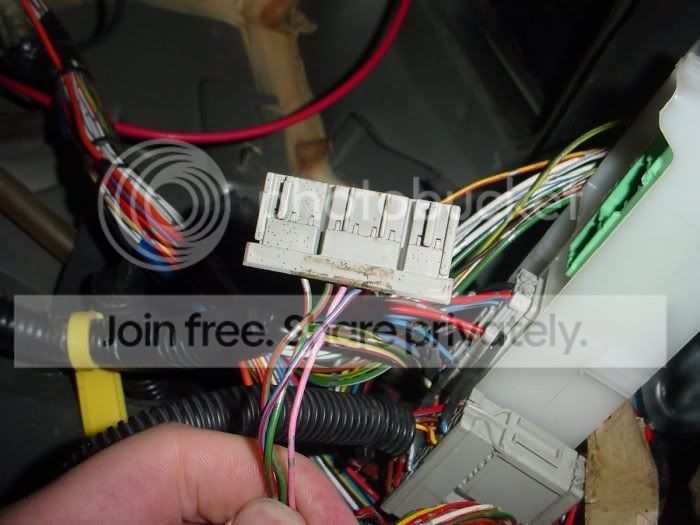

theres mine^^



my friend(92 Si) said he had that green plug(the one without anything) but didn't have it in his 92 S.

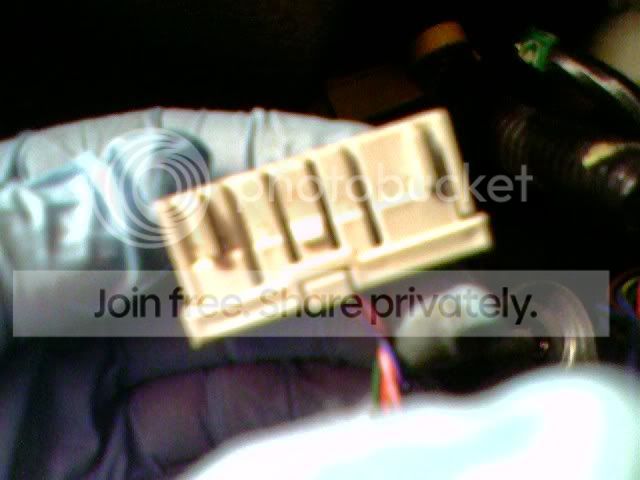

From the pic, looks like a blue, red/pink, green, and another. I do recall there are 4 wires in the whole plug. was yours hangin or plugged in?



I would take a better pic, but won't be until tomorrow as I am home and clean now, my garage isnt right next door either.



oh and rosko, do you have EL gauges, or just the reg. gauges in the 92 Si?



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by .BigSexy &raquo;</TD></TR><TR><TD CLASS="quote">oh and rosko, do you have EL gauges, or just the reg. gauges in the 92 Si?</TD></TR></TABLE>

mines just hangin there, but then again so is alot of stuff. No, I don't have the EL guages, but now that I think about it that dash came from another car. I know it was a Prelude S but I'm not sure what year. I know the console and such was the same as mine inside if that says anything.

I may still have that old dash layin around, I'll go look for it.



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by Rosko &raquo;</TD></TR><TR><TD CLASS="quote">

mines just hangin there, but then again so is alot of stuff. No, I don't have the EL guages, but now that I think about it that dash came from another car. I know it was a Prelude S but I'm not sure what year. I know the console and such was the same as mine inside if that says anything.

I may still have that old dash layin around, I'll go look for it.</TD></TR></TABLE>

any of your gauges not working? I guess I will just leave it and see what happens



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by .BigSexy &raquo;</TD></TR><TR><TD CLASS="quote">

any of your gauges not working? I guess I will just leave it and see what happens</TD></TR></TABLE>

Thats really hard to tell in my car

Just to make sure you're saying you have two plugs on the right side coming out of the dash right? AND only one of them is plugged in? Its def the 16 cav plug (right side harness)

I checked my other dash too and its got the same two plugs as well. The only thing that I can recall removing on that side of the car was the ABS computer. All my windows/door locks function so I know its not that. Just try it and see



I have 3 plugs b/c of the EL gauges, 1 plug(the biggest) is plugged in. The smallest, the black wire is grounded, thats all thats need with that plug, and the next biggest is just hanging



i just finished up my swap today but i need to ground the blck wire.

were did you ground yours?

(just cut the clip off the wires and find a place to ground it to?)



<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by shaylude &raquo;</TD></TR><TR><TD CLASS="quote">i just finished up my swap today but i need to ground the blck wire.

were did you ground yours?

(just cut the clip off the wires and find a place to ground it to?)</TD></TR></TABLE>

i found grounded it to the floor near the ECU
