LilFred4rmexas November 14, 2019

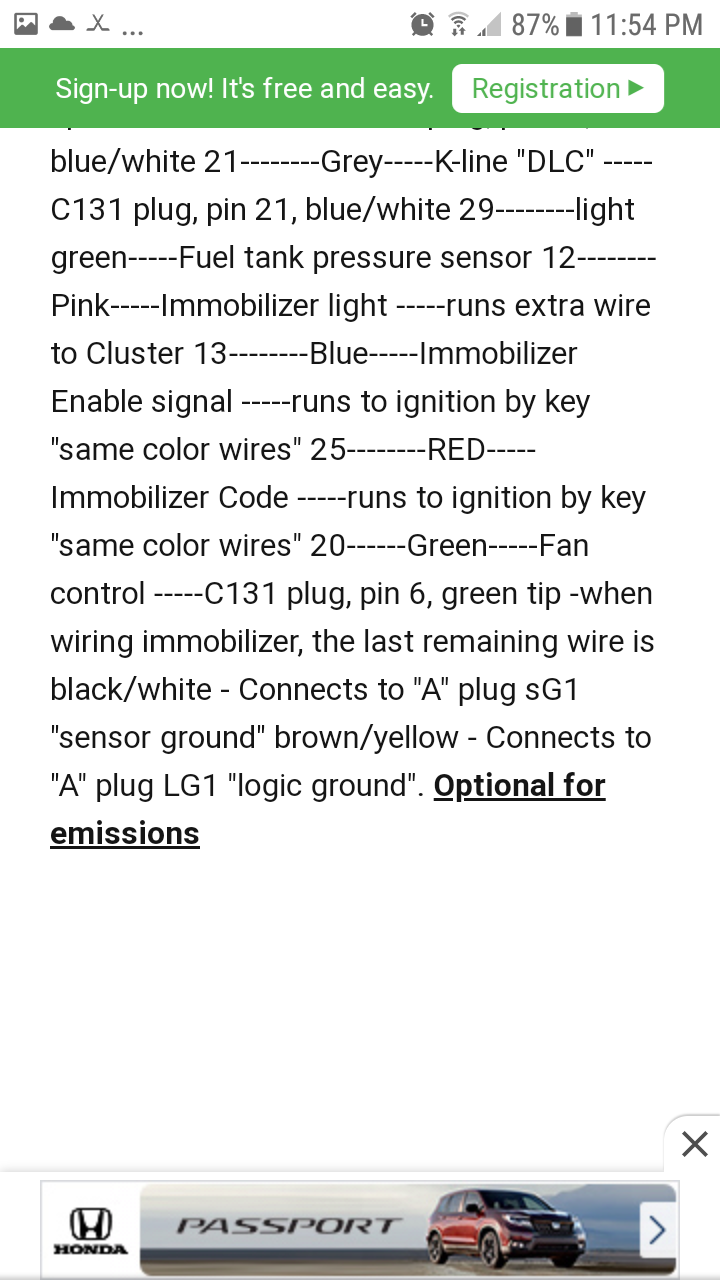

J32 "A" ecu diagram : pin 12 pink immobilizer is there but in pin 7 (not as the diagram calls for) missing? Pin 13 blue immobilizer enable signal is in pin 12 (not as diagram calls for) missing? Pin 25 red immobilizer code is not in the harness completely the pin out on the plug/harness is empty ... missing? The only solid red wire in thie part of harness is the clutch relay in pin 17 ?????
