Loyalhondahaver October 9, 2019

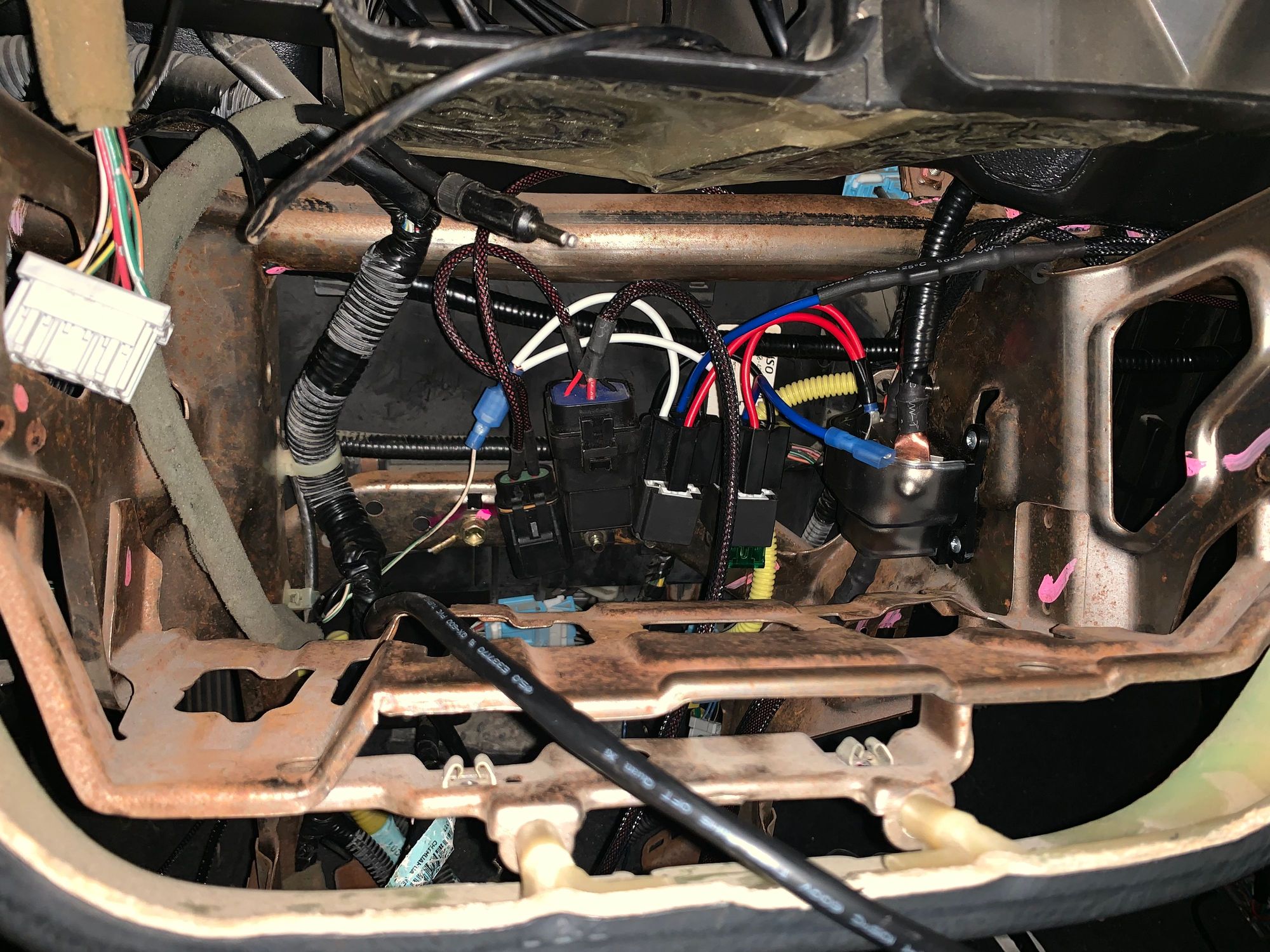

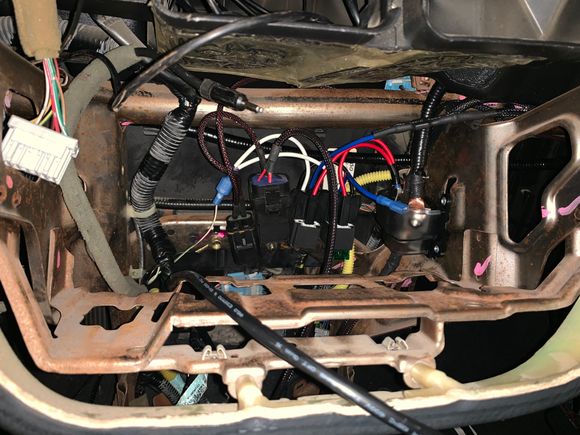

On the left is fuel pump relay and fuse holder, from burton racing. This is to upgrade the wiring to the pump. Middle is a fused relay which is running an upgraded wire I’ve integrated into the wiring harness for the coil packs. Will run a 20 AMP fuse. Right is another fused relay that will power my gauges. Will run a 10AMP fuse. In the back running along, there is the extension I made.. you know on the drivers side shock tower, how the factory engine harness plugs in there? I pulled it back ins
