Tacking Non-Magnetic Piecuts?
Does anyone have any hints about a good way to keep a nice tight fitup for tacking aluminum piecuts? I did a couple of sets today, and the only conclusion I came to about my technique was that I need another technique! Lol
#2
Re: Tacking Non-Magnetic Piecuts?
You can just use tape on aluminum. Tape -> tack -> cool -> repeat. Try not to get the piece too hot though, as the tape adhesive makes a mess when it gets hot.
#3
Honda-Tech Member
Thread Starter
Join Date: Sep 2006
Location: Mid-Michigan, USA
Posts: 1,235
Likes: 0
Received 0 Likes
on
0 Posts
Re: Tacking Non-Magnetic Piecuts?
Thanks! I'll have to try the tape method again, differently than I did this time.. I absolutely cooked the tape, haha.
#4
Honda-Tech Member
Thread Starter
Join Date: Sep 2006
Location: Mid-Michigan, USA
Posts: 1,235
Likes: 0
Received 0 Likes
on
0 Posts
Re: Tacking Non-Magnetic Piecuts?
Yesterday's practice/attempt. It will serve the purpose it needs to, but hopefully there's better to be done in the future. This was with a 7.5* cut angle, and with just over a 1/8th inch inner width. Tricky to weld those thin pieces!
#5
Re: Tacking Non-Magnetic Piecuts?
Just do a quick tack and then remove the tape. Don't tack near the tape also.
Welding Aluminum Pie Cuts for Air Intake
Welding Aluminum Pie Cuts for Air Intake
#6
Honda-Tech Member
Thread Starter
Join Date: Sep 2006
Location: Mid-Michigan, USA
Posts: 1,235
Likes: 0
Received 0 Likes
on
0 Posts
Re: Tacking Non-Magnetic Piecuts?
Phenomenal video, thanks! I have to confess that I've seen it before, but studying it harder this time will help I think. :-)
Trending Topics
#8
Honda-Tech Member
Join Date: Jan 2005
Location: Lower Right Hand Corner, PA
Posts: 5,643
Likes: 0
Received 0 Likes
on
0 Posts
Re: Tacking Non-Magnetic Piecuts?
If your joints fit tight enough, you can get an autogenous tack on it. You will need to sure it up from there as they crack easily if you're not careful.
#9
Honda-Tech Member
Thread Starter
Join Date: Sep 2006
Location: Mid-Michigan, USA
Posts: 1,235
Likes: 0
Received 0 Likes
on
0 Posts
Re: Tacking Non-Magnetic Piecuts?
Thanks! I did get some autogenous tacks, but many of them cracked as you said. For me it seemed like I needed filler if I wanted a decent chance of having my tacks hold. I'm heading out to Menards to look for some little clamps and whatnot.
#10
Honda-Tech Member
Thread Starter
Join Date: Sep 2006
Location: Mid-Michigan, USA
Posts: 1,235
Likes: 0
Received 0 Likes
on
0 Posts
Re: Tacking Non-Magnetic Piecuts?

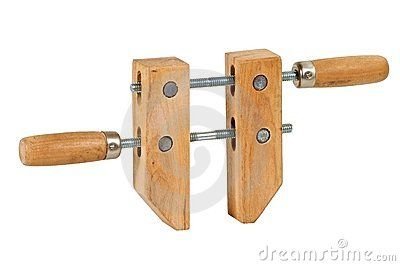

Just a quick note on this topic: Since the autogenous tacks really liked to crack on me quite frequently and I kept cooking the tape when I tried that, I went around and picked up some clamps where ever I saw something that I thought might come in handy. The one that really worked out very nicely is this sort of clamp I got at Menards:
Then I took about a week off from working on the actual car project, and just tried to get decent at welding. The last piece I produced looks acceptable for use to me, but now I'm motivated to try and get good enough to make pretty welds. Lol...
During the welding of this last piece (that I am going to use on the compressor outlet--gotta get back to work on the car!), I realized that I could keep a REALLY tidy little bead if I got some filler even smaller than the 1/16" I was using. I picked up some 1.2mm 4043 mig wire that looks promising, but I haven't tried it yet. Anyway, here is where I got to:
I managed to let the buffing wheel grab this piece and fling it into the wall. Damaged on all sides, but I'm going to use it... Lol
Then I took about a week off from working on the actual car project, and just tried to get decent at welding. The last piece I produced looks acceptable for use to me, but now I'm motivated to try and get good enough to make pretty welds. Lol...
During the welding of this last piece (that I am going to use on the compressor outlet--gotta get back to work on the car!), I realized that I could keep a REALLY tidy little bead if I got some filler even smaller than the 1/16" I was using. I picked up some 1.2mm 4043 mig wire that looks promising, but I haven't tried it yet. Anyway, here is where I got to:
I managed to let the buffing wheel grab this piece and fling it into the wall. Damaged on all sides, but I'm going to use it... Lol
#12
Honda-Tech Member
Thread Starter
Join Date: Sep 2006
Location: Mid-Michigan, USA
Posts: 1,235
Likes: 0
Received 0 Likes
on
0 Posts
Re: Tacking Non-Magnetic Piecuts?
What kind of tape do you use? I was using some crappy old masking tape from 1992 or something, maybe it makes a difference... Lol
#14
#16
OG Fabricator
Join Date: Jan 2006
Location: Saint Helens, OR, USA
Posts: 661
Likes: 0
Received 0 Likes
on
0 Posts
Re: Tacking Non-Magnetic Piecuts?
We use 4x4 angle, cut length 4". Turn on it's side and assemble the pie cuts into the 90 degree channel. Assuming you have a good fit they won't move and you know you are hitting 90 degrees.
#17
Honda-Tech Member
Thread Starter
Join Date: Sep 2006
Location: Mid-Michigan, USA
Posts: 1,235
Likes: 0
Received 0 Likes
on
0 Posts
Re: Tacking Non-Magnetic Piecuts?
Up to what diameter tube are you able to cut so that it fits into the 4x4 angle for tacking? And what is your normal angle of cut if you have one?
#18
OG Fabricator
Join Date: Jan 2006
Location: Saint Helens, OR, USA
Posts: 661
Likes: 0
Received 0 Likes
on
0 Posts
Re: Tacking Non-Magnetic Piecuts?
We were building 3" sections, but it would probably accommodate all the way up to 4" though...
The angle varies by the target radius and the number of sections desired, but the most common I've seen is 6 sections at 15 degrees which gets you near a 1D bend.
The angle varies by the target radius and the number of sections desired, but the most common I've seen is 6 sections at 15 degrees which gets you near a 1D bend.
#19
Re: Tacking Non-Magnetic Piecuts?
#20
Honda-Tech Member
Thread Starter
Join Date: Sep 2006
Location: Mid-Michigan, USA
Posts: 1,235
Likes: 0
Received 0 Likes
on
0 Posts
Re: Tacking Non-Magnetic Piecuts?
Sorry, that I'm not sure I am envisioning this correctly, but are you saying that each piece has a total angle on it of 15 degrees, so the angle of each cut is 7.5 degrees? I think that makes mathematical sense???
#21
Honda-Tech Member
Join Date: Dec 2005
Location: Western, KY, USA
Posts: 473
Likes: 0
Received 0 Likes
on
0 Posts
Re: Tacking Non-Magnetic Piecuts?
I've taken a large hose clamps, cut a slot out of the middle of it, and positioned the slot over the joint to be tacked.
#23
Honda-Tech Member
Thread Starter
Join Date: Sep 2006
Location: Mid-Michigan, USA
Posts: 1,235
Likes: 0
Received 0 Likes
on
0 Posts
Re: Tacking Non-Magnetic Piecuts?
Me? I kind of doubt you'd be asking me about that abomination I posted pictures of, but I don't see who else you'd be asking...
So anyway, I got a 6" buffing wheel from Menards for my 6" bench grinder, and a buffing wheel compound stick there that I used on it. I think I ended up using some stainless toothbrush action on the etching areas before buffing because it looked like it would take forever to deal with those areas with buffing wheel alone.
After I took the pictures, I used an old regular toothbrush to get some more of the buffing compound out of the nooks an crannies, and it ended up looking a little better. If anyone has suggestions about how to shine stuff like this up better than I did, I am all ears.
So anyway, I got a 6" buffing wheel from Menards for my 6" bench grinder, and a buffing wheel compound stick there that I used on it. I think I ended up using some stainless toothbrush action on the etching areas before buffing because it looked like it would take forever to deal with those areas with buffing wheel alone.
After I took the pictures, I used an old regular toothbrush to get some more of the buffing compound out of the nooks an crannies, and it ended up looking a little better. If anyone has suggestions about how to shine stuff like this up better than I did, I am all ears.
#24
Honda-Tech Member
Re: Tacking Non-Magnetic Piecuts?
Nah makes sense. I am totally new to aluminum fabrication so I'll be learning alot here in the next few months.
I've got alot of detailing supplies that I used for shining up exhaust tips that would probably do the job.
I've got alot of detailing supplies that I used for shining up exhaust tips that would probably do the job.
