Default Pics of your tig torch setup :)

I ordered my new #9 torch with a large stubby gas lens and #12 cup, but the cup looks unlike most I have seen.

If anyone here uses the same setup I just listed, could you be kind enough to post a picture of your torch please
wade is offline
Reply With Quote
Old 11-12-2011, 09:11 AM
  #2
Honda-Tech Member

Agtronic's Avatar

Join Date: Apr 2003
Location: Montreal, Quebec, Canada
Posts: 988
Default Re: Pics of your tig torch setup :)

I'll post a pic later when I go to the shop. But post a pic of your setup, I'm curious to see.
Agtronic is offline
Reply With Quote
Old 11-12-2011, 11:52 AM
  #3
Honda-Tech Member

RadekSkylark's Avatar

Join Date: Jul 2009
Posts: 534
Default Re: Pics of your tig torch setup :)

Here's is my setup, pretty much the same you'll have

SR9 torch with weldcraft large gas lens + #12 cup



When I first got that cup I was shocked :D It was huge... but now it seems normal, and everything smaller - tiny

Good luck!
RadekSkylark is offline
Reply With Quote
Old 11-12-2011, 12:03 PM
  #4
Honda-Tech Member

Join Date: Apr 2011
Location: Kingston, Ontario
Posts: 530
Default Re: Pics of your tig torch setup :)

CK large diameter gas lense (1 1/8" iirc) on a WP #17 torch. air cooled.
Name:  099ed5e5.jpg
Views: 1128
Size:  87.0 KB

I need to get some more lenses.... i cracked mine.
HellaFab is offline
Reply With Quote
Old 11-12-2011, 05:33 PM
  #5
OG Fabricator

ToxicFabrication's Avatar

Join Date: Dec 2008
Location: texas
Posts: 1,073
Default Re: Pics of your tig torch setup :)

Wade, you already know mine, sent you pics twice! Haha
ToxicFabrication is offline
Reply With Quote
Old 11-12-2011, 07:55 PM
  #6
Honda-Tech Member

Join Date: Feb 2009
Location: winnipeg
Posts: 10
Default Re: Pics of your tig torch setup :)

Originally Posted by sdubfid View Post
wp26 aircooled and wp20 watercooled
The insulator on your 26 isn't the right one, and your #20 looks weird too.
Glen_63 is offline
Reply With Quote
Old 11-13-2011, 02:40 AM
  #7
Honda-Tech Member
Thread Starter
iTrader: (1)

wade's Avatar

Join Date: Mar 2003
Location: Louisville, KY, USA
Posts: 3,662
Default Re: Pics of your tig torch setup :)

Thanks! I'm awaiting my insulator. Mine looks like Rades. How much are those clear lens setups?
wade is offline
Reply With Quote
Old 11-13-2011, 06:32 AM
  #8
Honda-Tech Member

Join Date: Apr 2011
Location: Kingston, Ontario
Posts: 530
Default Re: Pics of your tig torch setup :)

pretty $.


for the lense, insulator, cup and collet it was $80.
HellaFab is offline
Reply With Quote
Old 11-13-2011, 06:33 AM
  #9
OG Fabricator

ToxicFabrication's Avatar

Join Date: Dec 2008
Location: texas
Posts: 1,073
Default Re: Pics of your tig torch setup :)

Those clear pyrex cups (gas savers) I have one, and used it a hand full of times. To get gas coverage comparable to a standard #12 cup I have the raise the regulator to around 40-55cfm. More like gas waster imo.
ToxicFabrication is offline
Reply With Quote
Old 11-13-2011, 10:30 AM
  #10
OG Fabricator

CRMB's Avatar

Join Date: Jan 2006
Location: Saint Helens, OR, USA
Posts: 661
Default Re: Pics of your tig torch setup :)

Most common torch we use is a pencil torch, the WT-20P.

CRMB is offline
Reply With Quote
Old 11-14-2011, 05:21 AM
  #11
Honda-Tech Member

Join Date: Apr 2011
Location: Kingston, Ontario
Posts: 530
Default Re: Pics of your tig torch setup :)

CRMB, i have not used a pencil torch before and have a question.... how does one HOLD the pencil torch? like a normal pencil or parallel to your forearm?

It would seem (without having used one) that the weight of the hose would be problematic when holding like a pencil without some overhead rigging to hold the weight of the hose.

I have one that came with my welder, but i have never bothered trying to hook it up.
HellaFab is offline
Reply With Quote
Old 11-14-2011, 08:46 PM
  #12
Honda-Tech Member

Boosted_B_Series's Avatar

Join Date: Nov 2006
Location: Tuning in, KY, USA
Posts: 1,680
Default Re: Pics of your tig torch setup :)

Hey Wade,

Here is mine, its a wp20, but its pretty much a watercooled version of a wp9. Uses the same front end parts.

It has a 25ft braided hose, zip up cover and #12 gas lens. I dig it, just need one more part and I'm watercooled.

Thanks for introducing me to the smaller wp9/20 and the braided rubber hoses. I like them alot better than the wp17 setup I am used to.

DK

Name:  photobucket-3920-1321335487355.jpg
Views: 307
Size:  75.3 KB
Boosted_B_Series is offline
Reply With Quote
Old 11-15-2011, 10:35 AM
  #13
OG Fabricator

CRMB's Avatar

Join Date: Jan 2006
Location: Saint Helens, OR, USA
Posts: 661
Default Re: Pics of your tig torch setup :)

You hold it like a pencil. I dont remember the cables being much of a concern but it has been more then a few years since I picked up a tig torch.
CRMB is offline
Reply With Quote
Old 11-15-2011, 02:53 PM
  #14
Honda-Tech Member

RickyLee53's Avatar

Join Date: Oct 2008
Location: Rotherham, S Yorks, UK
Posts: 357
Default Re: Pics of your tig torch setup :)

Originally Posted by ToxicFabrication View Post
Those clear pyrex cups (gas savers) I have one, and used it a hand full of times. To get gas coverage comparable to a standard #12 cup I have the raise the regulator to around 40-55cfm. More like gas waster imo.
I found exactly the same thing. Waste of money.

Originally Posted by CRMB View Post
You hold it like a pencil. I dont remember the cables being much of a concern but it has been more then a few years since I picked up a tig torch.
You'll need forearms like popeye to hold the weight of the cable I would have thought.
RickyLee53 is offline
Reply With Quote
Old 11-15-2011, 08:40 PM
  #15
Honda-Tech Member
iTrader: (1)

9295EJ-t's Avatar

Join Date: Jan 2006
Location: Jacksonville, fl, USA
Posts: 639
Default Re: Pics of your tig torch setup :)

typical weapon of choice

Name:  IMG_3720.jpg
Views: 720
Size:  86.9 KB
9295EJ-t is offline
Reply With Quote
Old 11-16-2011, 06:59 AM
  #16
OG Fabricator

Join Date: Jun 2009
Location: DFW, TX
Posts: 606
Default Re: Pics of your tig torch setup :)

Originally Posted by HellaFab View Post
CK large diameter gas lense (1 1/8" iirc) on a WP #17 torch. air cooled.


I need to get some more lenses.... i cracked mine.
same exact setup i use and LOVE It!
russianvr4 is offline
Reply With Quote
Old 11-16-2011, 05:25 PM
  #17
Honda-Tech Member

Join Date: Dec 2009
Posts: 29
Default Re: Pics of your tig torch setup :)

I can't get a good hang of welding with a 12. It seems too wide for moving around tight spaces.
AllMotrGoesSlwr is offline
Reply With Quote
Old 11-16-2011, 05:38 PM
  #18
Honda-Tech Member
iTrader: (1)

9295EJ-t's Avatar

Join Date: Jan 2006
Location: Jacksonville, fl, USA
Posts: 639
Default Re: Pics of your tig torch setup :)

Originally Posted by AllMotrGoesSlwr View Post
I can't get a good hang of welding with a 12. It seems too wide for moving around tight spaces.
but you can hang the tungsten out at least an inch making maneuvering super easy (as long as nothing is bumping the cup)
9295EJ-t is offline
Reply With Quote
Old 11-16-2011, 07:48 PM
  #19
Honda-Tech Member

Join Date: Dec 2009
Posts: 29
Default Re: Pics of your tig torch setup :)

I understand that, but it seems like I am always clanking it into ****. I just can't hang with the big cups, man.
AllMotrGoesSlwr is offline
Reply With Quote
Old 11-16-2011, 08:51 PM
  #20
Honda-Tech Member

Boosted_B_Series's Avatar

Join Date: Nov 2006
Location: Tuning in, KY, USA
Posts: 1,680
Default Re: Pics of your tig torch setup :)

Took me some practice to get used to the large cup, now just every now an then I need to ditch the #12 to get into tight spots. A smaller torch has helped alot.
Boosted_B_Series is offline
Reply With Quote
Old 11-16-2011, 11:06 PM
  #21
Honda-Tech Member

Luserkid's Avatar

Join Date: Oct 2002
Location: Cali
Posts: 12,653
Default Re: Pics of your tig torch setup :)

My setups for everything but AL.

Name:  photo-2.jpg
Views: 1070
Size:  74.1 KB
Luserkid is offline
Reply With Quote
Old 11-17-2011, 09:59 AM
  #22
Honda-Tech Member

batboyvaj's Avatar

Join Date: Jan 2002
Location: st paul, mn
Posts: 988
Default Re: Pics of your tig torch setup :)

What are you guys using for your argon flow rates with the #12 cup?
batboyvaj is offline
Reply With Quote
Old 11-17-2011, 11:33 AM
  #23
Honda-Tech Member

Agtronic's Avatar

Join Date: Apr 2003
Location: Montreal, Quebec, Canada
Posts: 988
Default Re: Pics of your tig torch setup :)

Nice setups!

It took me a little while to get used to the #12 also. At first it feels like you're welding with a shot glass at the end of your torch. It also takes little time to get a feel for the right gas flow rates. (True of any cup change).

I use a WP-17 with the regular gas lens and a #8 for anything that doesn't need to be super clean (AL, or SS that I will clean after welding). For SS pipe and tubing that needs to come out clean, I use the large gas lens with a #12 cup.

For gas flow, I use ~12 cfh for the small gas lens, or like ~20 when using more stick out, but it depends on the joint I'm welding, and where it's located etc ...

For the large gas lens, I usually always set it at ~20-22 cfh.

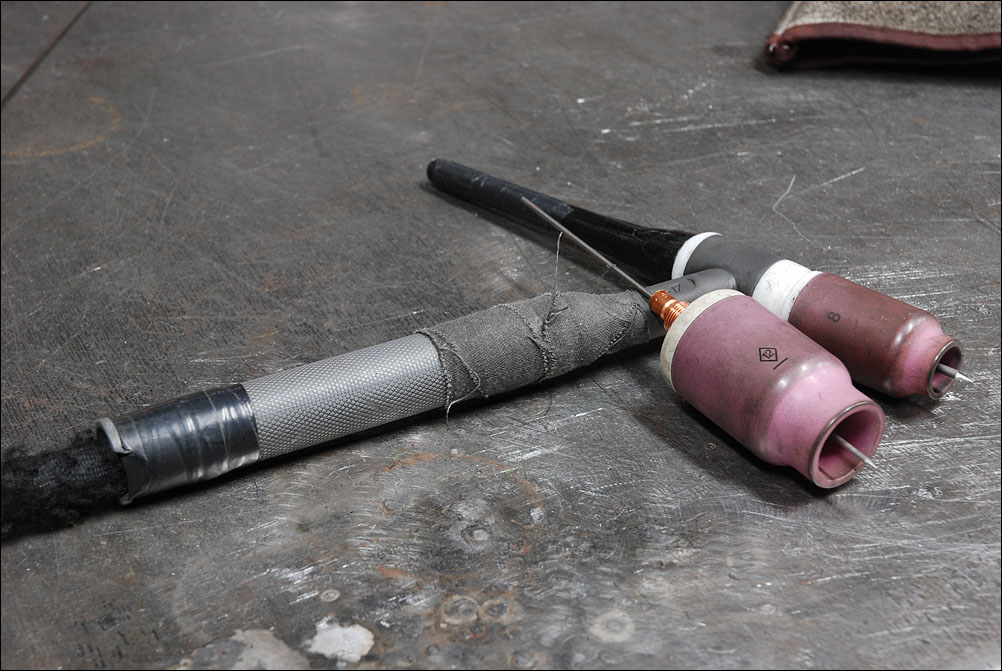

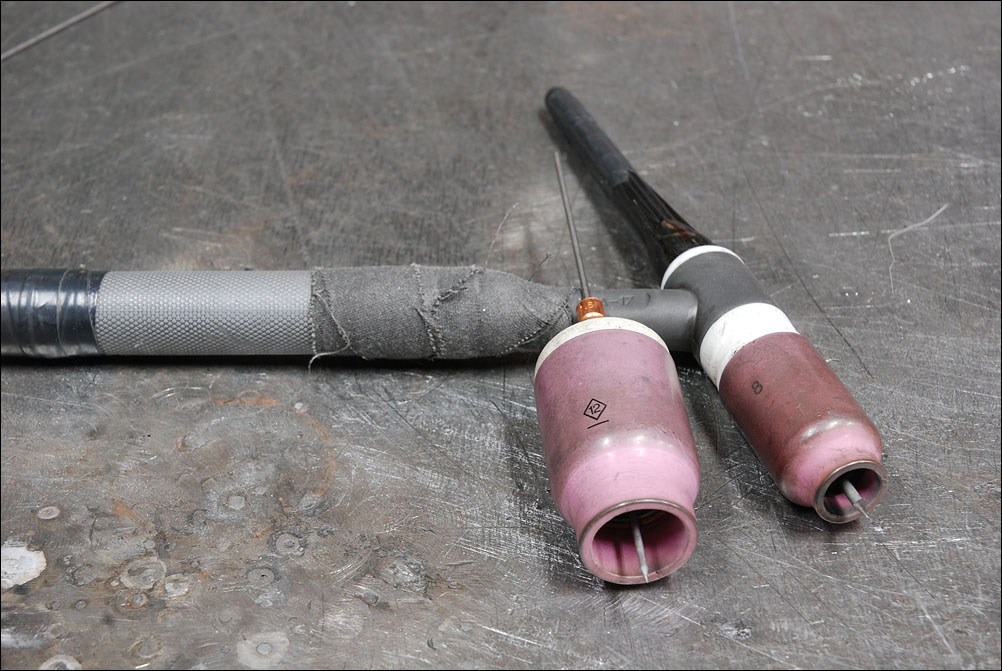

My torch has taken a beating and a half, I tend to break things when I get angry. Last time I whipped it against a chair and it hit the top of the chair back and bend into a U shape. I unbent it and it still works fine. But just recently I threw it down and the back-cap pulled out from the back and took the threads in the body out with it. So I need to get a replacement soon. Not sure if I want to get something different or not ...



Agtronic is offline
Reply With Quote
Old 11-17-2011, 09:47 PM
  #24
Honda-Tech Member

Boosted_B_Series's Avatar

Join Date: Nov 2006
Location: Tuning in, KY, USA
Posts: 1,680
Default Re: Pics of your tig torch setup :)

Originally Posted by batboyvaj View Post
What are you guys using for your argon flow rates with the #12 cup?
I normally always set mine to 15 cfh. Excessive stick out, 20-25 cfh
Boosted_B_Series is offline
Reply With Quote
Old 11-17-2011, 11:03 PM
  #25
I Deliver

EJAYATE's Avatar

Join Date: Jun 2004
Posts: 1,036
Default Re: Pics of your tig torch setup :)

Havent seen any one post this one. Wp-125w. I use a wp-20 sometimes too.
Name:  3520dd4c.jpg
Views: 343
Size:  109.3 KB
EJAYATE is offline
Reply With Quote
