Old 12-01-2016, 08:02 PM
  #26
Honda-Tech Member
Thread Starter

BlackbirdFabwrx's Avatar

Join Date: Jan 2011
Posts: 47
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

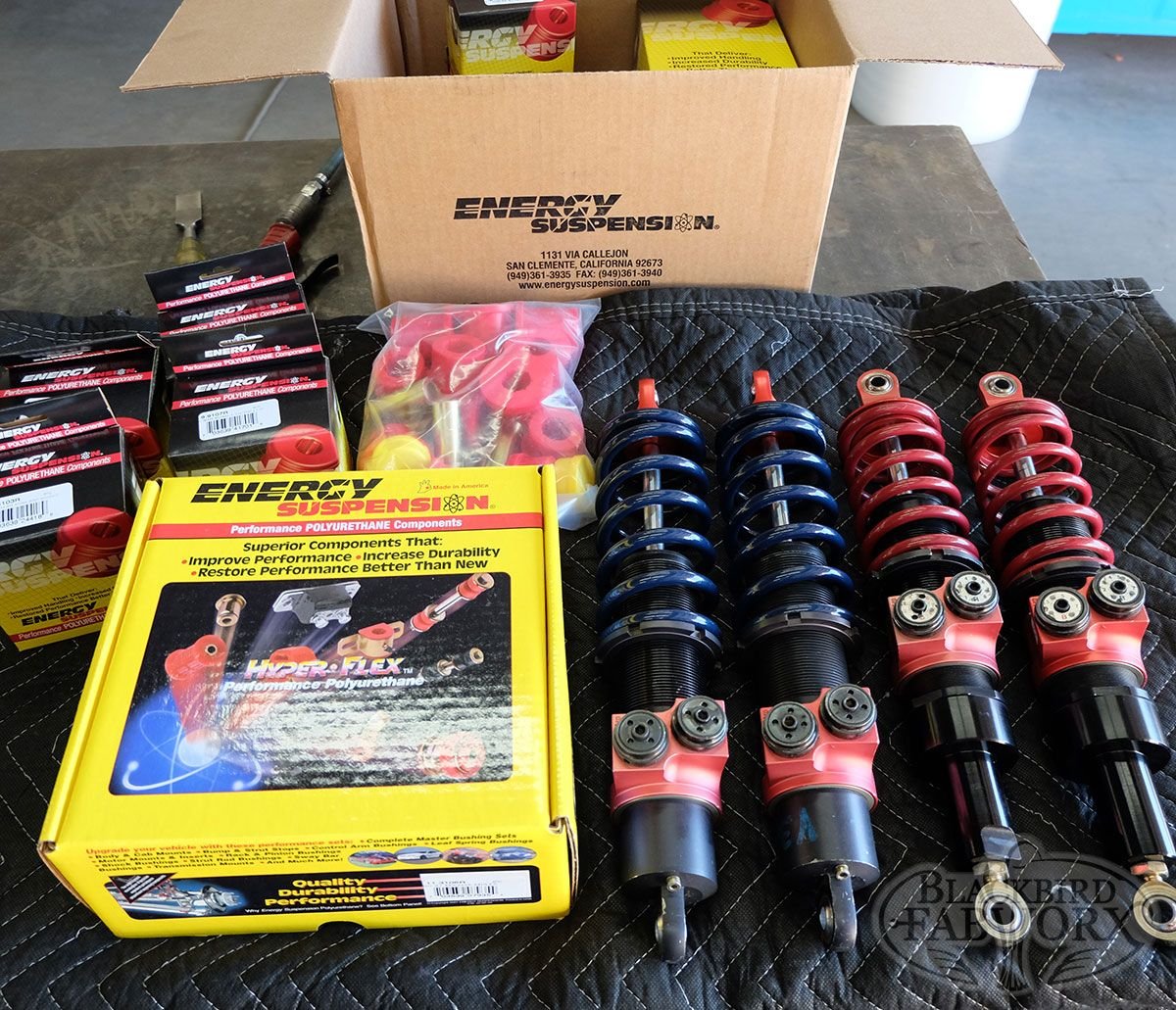

Serious builds deserve serious hardware, and those are Koni 2822 four way adjustable coilovers going on the car.
Serious hardware.



We also received a box full of bushings for the car from Energy suspension
Suspension work continues!
BlackbirdFabwrx is offline
Old 12-08-2016, 04:19 PM
  #27
Honda-Tech Member
Thread Starter

BlackbirdFabwrx's Avatar

Join Date: Jan 2011
Posts: 47
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Front frame very close to done, missing shock mounts and a few other small bits, but the layout is pretty much there -



Rear suspension started sprouting control arms today!

BlackbirdFabwrx is offline
Old 12-12-2016, 06:57 PM
  #28
Honda-Tech Member
Thread Starter

BlackbirdFabwrx's Avatar

Join Date: Jan 2011
Posts: 47
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Rear arms fabricated -



Once we're done with shock mounting tabs the rear suspension is essentially done.
We got our model to work so linear the shock literally compresses almost exactly the same distance with every inch of suspension travel.
Gotta love that
BlackbirdFabwrx is offline
Old 12-13-2016, 04:02 PM
  #29
I like to party
iTrader: (1)

2LEM1's Avatar

Join Date: Mar 2008
Location: Yay Area, CA
Posts: 4,377
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Super dope build guys
2LEM1 is offline
Old 12-16-2016, 06:02 AM
  #30
Honda-Tech Member
Thread Starter

BlackbirdFabwrx's Avatar

Join Date: Jan 2011
Posts: 47
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

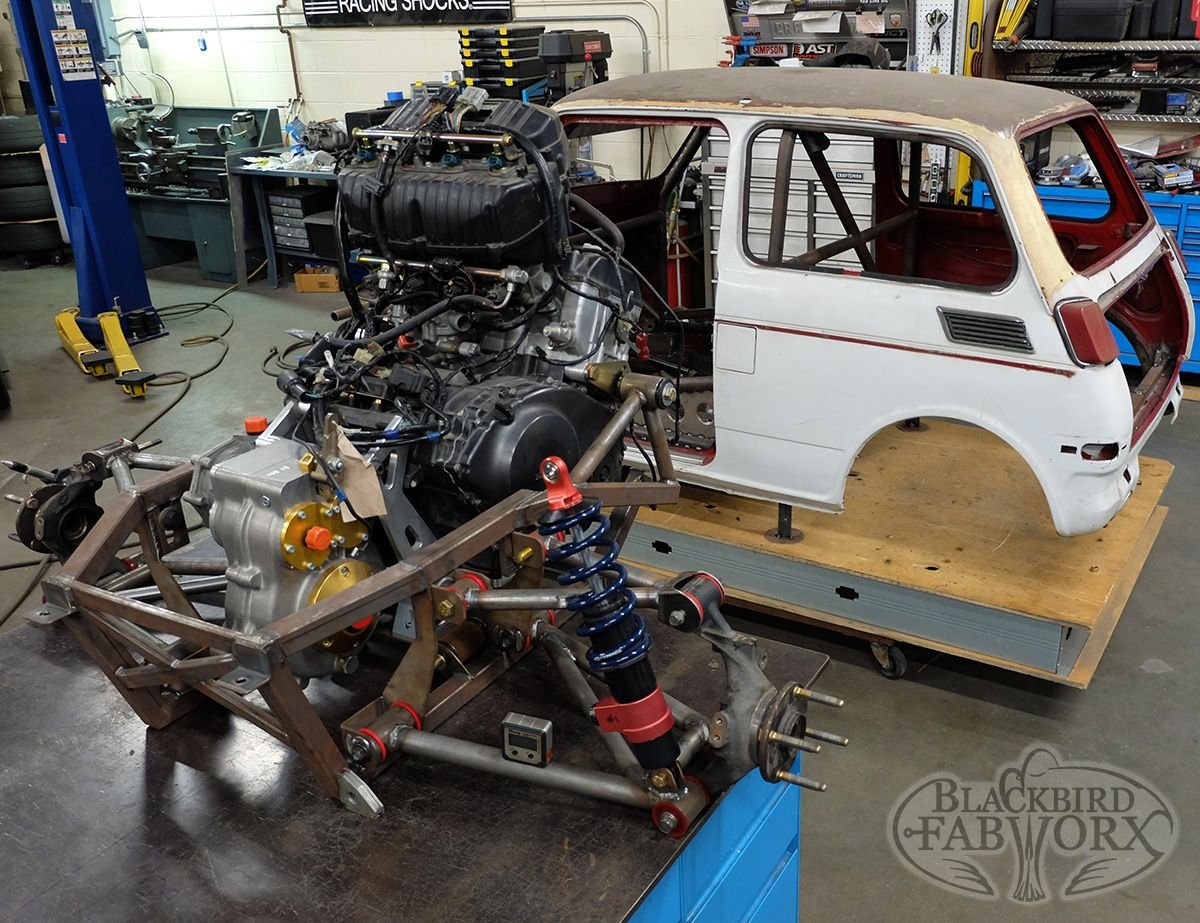

The rear suspension on our mid-engine madness project N1000RR is now finalized geometry-wise.
Still need to add a few tabs and mounting brackets for the sway bar, but it's getting oh so close now to roller-day
BlackbirdFabwrx is offline
Old 12-17-2016, 08:08 AM
  #31
Honda-Tech Member
Thread Starter

BlackbirdFabwrx's Avatar

Join Date: Jan 2011
Posts: 47
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Is there anyone reading this?
Make a sound

With the rear suspension mostly in place it was time to tackle the front.
Made the first LCA and on to mocking up the inboard shocks and verify the measurements.
Ignore the length of the pushrod, it's a good few inches too long -


Last edited by BlackbirdFabwrx; 12-17-2016 at 08:44 AM.
BlackbirdFabwrx is offline
Old 12-17-2016, 08:16 AM
  #32
Honda-Tech Member

Join Date: Aug 2016
Posts: 399
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

I am! One of the coolest build threads going on right now. The fab work is badass!
k20z1ej1 is offline
Old 12-17-2016, 08:17 AM
  #33
Plead da Fif

It Wasn't Me's Avatar

Join Date: Sep 2007
Location: DV Ent.
Posts: 7,383
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Originally Posted by BlackbirdFabwrx View Post
Is there anyone reading this?
2,200 views. They're following.

There are only so many times one can offer empty compliments before crossing the line into ****-slobbing territory.

Consider it... silent admiration.
It Wasn't Me is offline
Old 12-17-2016, 08:38 AM
  #34
Honda-Tech Member
Thread Starter

BlackbirdFabwrx's Avatar

Join Date: Jan 2011
Posts: 47
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Originally Posted by It Wasn't Me View Post
There are only so many times one can offer empty compliments before crossing the line into ****-slobbing territory.
Compliments are nice, but not what I'm after.
Hoping for some discussion... in some regards this project being so unusual allows us to show more than we normally do on race cars.
Readers are encouraged to discuss, ask questions, anything in mind, I'm happy to share.
BlackbirdFabwrx is offline
Old 12-17-2016, 10:30 AM
  #35
-Intl Steve Krew

Caoboy's Avatar

Join Date: Dec 2003
Location: Central Valley, CA
Posts: 4,733
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

I'm admiring the fabrication, my day job is sheet metal fabrication, would love to be doing something like you are for a living instead.
Caoboy is offline
Old 12-17-2016, 12:23 PM
  #36
Steve at Heart

Bently_Coop's Avatar

Join Date: Dec 2005
Location: Seattle
Posts: 2,979
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Originally Posted by It Wasn't Me View Post
2,200 views. They're following.

There are only so many times one can offer empty compliments before crossing the line into ****-slobbing territory.

Consider it... silent admiration.
Kind of where I am at.

Originally Posted by BlackbirdFabwrx View Post
Compliments are nice, but not what I'm after.
Hoping for some discussion... in some regards this project being so unusual allows us to show more than we normally do on race cars.
Readers are encouraged to discuss, ask questions, anything in mind, I'm happy to share.
Have you seen the VFR800 swapped N600? pretty neat, not the same level of work you guys are putting in though.
Bently_Coop is offline
Old 12-17-2016, 01:08 PM
  #37
Honda-Tech Member
Thread Starter

BlackbirdFabwrx's Avatar

Join Date: Jan 2011
Posts: 47
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Originally Posted by Bently_Coop View Post
Have you seen the VFR800 swapped N600? pretty neat, not the same level of work you guys are putting in though.
Yeah, the one that CCrunner built is cool.
His build log on LocostUSA is great and has all bunch of good frankensteining examples - LocostUSA.com ? View topic - ccrunner's N600 VFR800 repower
Totally different state of mind for the two builds.
CCR went after a fun street / show / toy car with all kinds of touches to keep the original feel but still custom, you can go for a couple hours drive in that car.

We went after a more focused go fast machine that is meant to put a stupid smile on your face when on track.
You can drive it to the nearby Supercar Sunday meet and some local canyon runs, but otherwise it's a track car with a license plate.

No wrong answers here, it's all fun
BlackbirdFabwrx is offline
Old 12-19-2016, 08:26 PM
  #38
Honda-Tech Member
Thread Starter

BlackbirdFabwrx's Avatar

Join Date: Jan 2011
Posts: 47
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

We got both FLCAs on the car today and I couldn't help myself sticking tires on the front end to get a visual.. along with the confirmation that this thing is guaranteed to look insane

BlackbirdFabwrx is offline
Old 12-19-2016, 08:42 PM
  #39
-Intl Steve Krew

Caoboy's Avatar

Join Date: Dec 2003
Location: Central Valley, CA
Posts: 4,733
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

13" wheels eh? It definitely doesn't seem that small until you start thinking about it...
Caoboy is offline
Old 12-19-2016, 09:06 PM
  #40
Honda-Tech Member
Thread Starter

BlackbirdFabwrx's Avatar

Join Date: Jan 2011
Posts: 47
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Yeah, haha..
13's look huge on this car, probably because it came with 10's!
BlackbirdFabwrx is offline
Old 12-21-2016, 03:40 PM
  #41
GDD Lonely Krew

the_unknown's Avatar

Join Date: Feb 2005
Location: Reseda, CA, USA
Posts: 857
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Only posting so you know we're here watching. This thing is facking pimp... I hope to be able to have the skills/tools to do something like this one day. Keep on it guys and keep us up to date
the_unknown is offline
Old 12-22-2016, 10:49 AM
  #42
Honda-Tech Member
Thread Starter

BlackbirdFabwrx's Avatar

Join Date: Jan 2011
Posts: 47
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

As we draw closer to roller day, Frank is becoming more and more anxious.. he's trying to stay out of the way for the most, but sometimes he'll do things like playing weld inspector

BlackbirdFabwrx is offline
Old 12-22-2016, 01:45 PM
  #43
-Intl Steve Krew

Caoboy's Avatar

Join Date: Dec 2003
Location: Central Valley, CA
Posts: 4,733
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Is that tubing running through the firewall and tying into the cage?
Caoboy is offline
Old 12-22-2016, 02:30 PM
  #44
Honda-Tech Member
Thread Starter

BlackbirdFabwrx's Avatar

Join Date: Jan 2011
Posts: 47
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Yes, right to the node between the front leg and the dash bar
BlackbirdFabwrx is offline
Old 12-23-2016, 02:10 PM
  #45
Honda-Tech Member
Thread Starter

BlackbirdFabwrx's Avatar

Join Date: Jan 2011
Posts: 47
Default Happy roller day!

We're finishing 2016 with a bang - the N1000RR has hit ground for the first time!
It took a few months of gathering parts and a few more to design everything.
Had to figure out many challenges along the way, but it is happening and we have arrived at this huge milestone in the life of such project.

What a great way to end 2016 with a bang!
Looking forward to drive this baby in 2017



N1000RR, now available with 100% more roll-ability!



Frank was mighty impressed



Still light enough for this crowd pleaser*












* I am ready for my advil
BlackbirdFabwrx is offline
Old 12-23-2016, 02:19 PM
  #46
-Intl Steve Krew

Caoboy's Avatar

Join Date: Dec 2003
Location: Central Valley, CA
Posts: 4,733
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Loving those stitch welds on the lower door area.

Also that front suspension design looks very unique. It will be interesting to see how it will look with the 'hood popped'


The stitch welds on the A pillar gussets, are they laid out inline with the dimples for strength or aesthetics or?
Caoboy is offline
Old 12-23-2016, 07:08 PM
  #47
Honda-Tech Member
iTrader: (6)

kingofbattle909's Avatar

Join Date: Jun 2008
Posts: 1,316
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

kingofbattle909 is offline
Old 12-24-2016, 10:02 AM
  #48
Honda-Tech Member
Thread Starter

BlackbirdFabwrx's Avatar

Join Date: Jan 2011
Posts: 47
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Originally Posted by Caoboy View Post
Loving those stitch welds on the lower door area.

Also that front suspension design looks very unique. It will be interesting to see how it will look with the 'hood popped'
Yeah, we're going to reconnect the nose section as soon as we have the fuel tank and radiator in there.
It'll be interesting for sure
Originally Posted by Caoboy View Post
The stitch welds on the A pillar gussets, are they laid out inline with the dimples for strength or aesthetics or?
Both!
BlackbirdFabwrx is offline
Old 12-26-2016, 08:32 AM
  #49
Honda-Tech Member

Join Date: Mar 2013
Location: Richmond, VA
Posts: 223
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Ok, I'll bite. What ratio are you using on the rockers? What spring rates are you going to start with in relation to the rocker set up? How will this car (work of art in fab) potentially corner and will there be any bias to one side or the other or will you try to achieve 50/50/50/50 with an average size driver in place? BTW, you guys get all the fun jobs, I am jealous.
Regards
Dave
smilindave is offline
Old 01-01-2017, 08:02 AM
  #50
Honda-Tech Member
Thread Starter

BlackbirdFabwrx's Avatar

Join Date: Jan 2011
Posts: 47
Default Re: Honda N600 mid-engine CBR1000RR street / track build @ Blackbird Fabworx

Hi Dave,

Thanks for the kind words, I've been out of town for the holidays and just saw your post
We're using a 5:3 ratio on the rockers, spring rates are 200 Fr / 275 Rr as a starting point, and we're going to build pickup points for front and rear sway bars, though it is likely that we will only be running a front bar at the beginning.
I'm expecting to do a fair amount of testing and tuning at the beginning with the owner of the car to get it to work best for him, he is a high-intermediate level driver that had been on track many times before but with a completely different platform (high power FF) so it'll take some getting used to.

It's hard to predict the exact weight bias, but I am hoping to end up in the neighborhood of 45/55 rear bias, though we might end up closer to 40/60 which is still A-okay in my book.
We have a few component that we're going to play with in terms locating the weight in order to achieve the Fr / Rr weight dist and 50/50 side to side w/ driver.
BlackbirdFabwrx is offline
