Engine tuck and engine bay shave

Old 04-10-2010, 07:17 AM
  #26
Honda-Tech Member

radex7's Avatar

Join Date: Jul 2008
Location: Willows, CA
Posts: 555
Default Re: Engine tuck and engine bay shave

Man, your thread came just in time! I was/am at the same stage, I just cannot fully commit to work... I have a few questions for you and if you don't mind sharing your insights I would really appreciate it.
1. Weren't you concerned about welding so close to gas lines? You know that masking tape doesn't really do anything but keeps the dirt out
Name:  DSCF7006.jpg
Views: 2287
Size:  49.5 KB

2. How did you remove your brake line joining the pass side with the the rear? Was it a lot of trouble?

3. Most of all - what welder do you have? I just arranged a purchase of a dual mig that I will be learning with.

Great start man. I would invite you over to my thread but there isn't that much going on over there. Thumbs up for organizing hoses and all the little crap - it will come in handy.

Subscribed.
radex7 is offline
Old 04-10-2010, 07:28 AM
  #27
Honda-Tech Member
Thread Starter

fabmaster's Avatar

Join Date: Sep 2009
Posts: 177
Default Re: Engine tuck and engine bay shave

Originally Posted by radex7 View Post
Man, your thread came just in time! I was/am at the same stage, I just cannot fully commit to work... I have a few questions for you and if you don't mind sharing your insights I would really appreciate it.
1. Weren't you concerned about welding so close to gas lines? You know that masking tape doesn't really do anything but keeps the dirt out


I soaked a rag in water and wrapped it around the lines while welding

2. How did you remove your brake line joining the pass side with the the rear? Was it a lot of trouble?

No trouble at all. One quick snip with the tin snips and they were off. hahaha I'm rerunning them behind the firewall so I'll just flare and connect back there

3. Most of all - what welder do you have? I just arranged a purchase of a dual mig that I will be learning with.

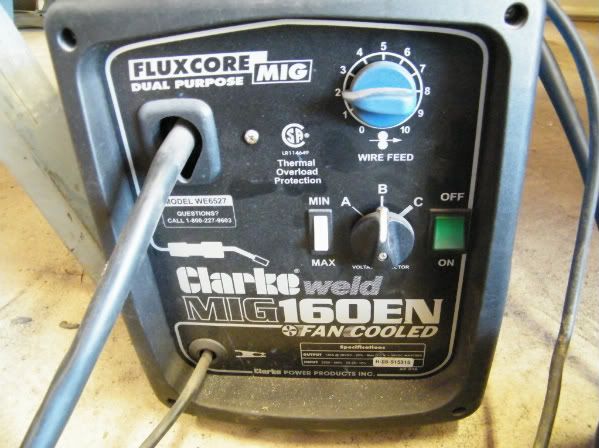

This is the welder I'm using but I'm having some trouble with the thin metal. I'm blowing through but have just been told that if I put a piece of copper or brass behind the weld it should help


Great start man. I would invite you over to my thread but there isn't that much going on over there. Thumbs up for organizing hoses and all the little crap - it will come in handy.

Subscribed.
fabmaster is offline
Old 04-10-2010, 08:12 AM
  #28
Honda-Tech Member

radex7's Avatar

Join Date: Jul 2008
Location: Willows, CA
Posts: 555
Default Re: Engine tuck and engine bay shave

I see, kind of a heat sink. Thanks a lot, and keep it up!
radex7 is offline
Old 04-10-2010, 06:19 PM
  #29
Honda-Tech Member
Thread Starter

fabmaster's Avatar

Join Date: Sep 2009
Posts: 177
Default Re: Engine tuck and engine bay shave

Did more polishing today until my friend brought me his sand blaster. I did a little before it got to dark. It works great for getting in those hard to reach places.
Name:  DSCF7048.jpg
Views: 1447
Size:  44.9 KB
fabmaster is offline
Old 04-11-2010, 02:31 AM
  #30
Honda-Tech Member

skipbudlong's Avatar

Join Date: Nov 2008
Location: Gardena
Posts: 332
Default Re: Engine tuck and engine bay shave

Looking really good man. All you need after you're finished is to change that hideous front end.
skipbudlong is offline
Old 04-11-2010, 07:02 AM
  #31
Honda-Tech Member
Thread Starter

fabmaster's Avatar

Join Date: Sep 2009
Posts: 177
Default Re: Engine tuck and engine bay shave

Originally Posted by skipbudlong View Post
Looking really good man. All you need after you're finished is to change that hideous front end.
I'm keeping the 240 headlights but I am going to be glassing a new front bumper cover.
fabmaster is offline
Old 04-11-2010, 07:13 AM
  #32
PHANTOM MENACE
iTrader: (2)

24TEN's Avatar

Join Date: May 2005
Location: SYCUAN NINE, CA, USA
Posts: 6,032
Default Re: Engine tuck and engine bay shave

If you ever have a chance run your vin through CARFAX because I'm almost positive that's the same car I had seen here in San Diego. Good job on the progress, can't wait to see more! Do you know what bumper you'll be going with?
24TEN is offline
Old 04-11-2010, 02:30 PM
  #33
Honda-Tech Member
Thread Starter

fabmaster's Avatar

Join Date: Sep 2009
Posts: 177
Default Re: Engine tuck and engine bay shave

Originally Posted by 24TEN View Post
If you ever have a chance run your vin through CARFAX because I'm almost positive that's the same car I had seen here in San Diego. Good job on the progress, can't wait to see more! Do you know what bumper you'll be going with?
I'll see about running the vin. The front end will be one-off made by me.
fabmaster is offline
Old 04-11-2010, 03:05 PM
  #34
PHANTOM MENACE
iTrader: (2)

24TEN's Avatar

Join Date: May 2005
Location: SYCUAN NINE, CA, USA
Posts: 6,032
Default Re: Engine tuck and engine bay shave

Nice, I'll definitely be checking in frequently for progress. I love seeing things take shape and seeing the thought process behind it.
24TEN is offline
Old 04-12-2010, 11:17 AM
  #35
Honda-Tech Member

Join Date: Sep 2009
Location: Spokane
Posts: 23
Default Re: Engine tuck and engine bay shave

updates????????????
b18a1da is offline
Old 04-12-2010, 03:08 PM
  #36
Honda-Tech Member
Thread Starter

fabmaster's Avatar

Join Date: Sep 2009
Posts: 177
Default Re: Engine tuck and engine bay shave

I just did some more blasting today (trying to beat the rain) and I'm designing the linkage to tuck the pressure assist and a mount to tuck the wiper motor but still use it.
Name:  DSCF7049.jpg
Views: 1499
Size:  77.0 KB

I made some calls and I am going to be able to use someones tig later this week. I am tired of blowing through the firewall with my fluxcore.
fabmaster is offline
Old 04-13-2010, 07:56 AM
  #37
Honda-Tech Member

REAPER101's Avatar

Join Date: Apr 2005
Location: omaha, ne, usa
Posts: 280
Default Re: Engine tuck and engine bay shave

wow its going to look really clean good stuff
REAPER101 is offline
Old 04-13-2010, 03:47 PM
  #38
Honda-Tech Member
Thread Starter

fabmaster's Avatar

Join Date: Sep 2009
Posts: 177
Default Re: Engine tuck and engine bay shave

While I wait to use my friends tig I decided to get some other things done. I am tucking the wiper motor but I am still going to be able to use the wipers.

With the motor, removed the motor and started making a new bracket for the motor. Every bolt was at a different angle which made it fun.
Name:  DSCF7066.jpg
Views: 1503
Size:  48.3 KB
Name:  DSCF7067.jpg
Views: 1450
Size:  45.9 KB
Name:  DSCF7059.jpg
Views: 1478
Size:  34.7 KB
Name:  DSCF7060.jpg
Views: 1455
Size:  38.9 KB
Name:  DSCF7062.jpg
Views: 1454
Size:  38.2 KB
Name:  DSCF7065.jpg
Views: 1445
Size:  33.6 KB

Then I went inside and started cutting out metal for the new motor placement.
Name:  DSCF7068.jpg
Views: 1447
Size:  55.0 KB
Name:  DSCF7069.jpg
Views: 1452
Size:  62.3 KB

Set in the motor to get an idea of clearance.
Name:  DSCF7070.jpg
Views: 1445
Size:  63.9 KB

After some more trimming I made legs to attach the motor to the car. I used some temp hardware to mock it up.
Name:  DSCF7071.jpg
Views: 1450
Size:  60.1 KB
Name:  DSCF7072.jpg
Views: 1443
Size:  54.2 KB
Name:  DSCF7075.jpg
Views: 1447
Size:  32.8 KB

Once I weld the original driveshaft hole and mount holes shut, this will be a functional wiper motor tuck.
Name:  DSCF7073.jpg
Views: 1463
Size:  58.0 KB

Last edited by fabmaster; 04-14-2010 at 12:19 AM.
fabmaster is offline
Old 04-13-2010, 05:57 PM
  #39
Honda-Tech Member

REAPER101's Avatar

Join Date: Apr 2005
Location: omaha, ne, usa
Posts: 280
Default Re: Engine tuck and engine bay shave

wow thats very creative good job
REAPER101 is offline
Old 04-13-2010, 11:45 PM
  #40
Honda-Tech Member

ls_efhatch's Avatar

Join Date: Jul 2006
Location: pensacola, florida, usa
Posts: 139
Default Re: Engine tuck and engine bay shave

wow man very creative i dnt have a welder thats worth a flip...the mount for the wiper would be awesome cuz u need the wipers but that thing is so ugly haha
ls_efhatch is offline
Old 04-14-2010, 11:34 PM
  #41
Honda-Tech Member

Join Date: Sep 2009
Location: Spokane
Posts: 23
Default Re: Engine tuck and engine bay shave

dude start making more and clean them up and sell them things
b18a1da is offline
Old 04-15-2010, 04:46 AM
  #42
Honda-Tech Member

dirtragz's Avatar

Join Date: Oct 2008
Location: al
Posts: 163
Default Re: Engine tuck and engine bay shave

Originally Posted by b18a1da View Post
dude start making more and clean them up and sell them things
i agree , 50 bux ea sounds fair for a diy . powder coat them and get 80 ea
dirtragz is offline
Old 04-15-2010, 07:04 AM
  #43
Honda-Tech Member
Thread Starter

fabmaster's Avatar

Join Date: Sep 2009
Posts: 177
Default Re: Engine tuck and engine bay shave

Originally Posted by dirtragz View Post
i agree , 50 bux ea sounds fair for a diy . powder coat them and get 80 ea
The only problem is having to make sure that the purchaser doesn't cut away too much metal.
fabmaster is offline
Old 04-15-2010, 07:16 AM
  #44
Honda-Tech Member

ToTriggerHappy's Avatar

Join Date: Jan 2010
Location: The Swamp
Posts: 426
Default Re: Engine tuck and engine bay shave

Nice!! keep up the good work. SUBSCRIBED!
ToTriggerHappy is offline
Old 04-16-2010, 07:35 PM
  #45
Honda-Tech Member
Thread Starter

fabmaster's Avatar

Join Date: Sep 2009
Posts: 177
Default Re: Engine tuck and engine bay shave

I've been working on the linkage to transfer the forward motion of the brake pedal, to a lateral motion to plunge the pressure assist once it is mounted inside the firewall. I started with cardboard templates and then transfered the idea to sheet stock.
Name:  DSCF7078.jpg
Views: 1444
Size:  32.2 KB
Name:  DSCF7079.jpg
Views: 1453
Size:  28.9 KB

Since this is for the brakes, I don't want to risk a lightweight setup, so I welded on a layer of thicker stock once the bends were right.
Name:  DSCF7083.jpg
Views: 1449
Size:  32.7 KB

I tested and retested until I finalized the pivot points for the most motion with the least binding.
Name:  DSCF7085.jpg
Views: 1454
Size:  34.5 KB

I'm using the stock pin hole through the brake bedal bar for my first linkage point. I had to make a bracket to lock into that hole and then transfer to the plate I just made
Name:  DSCF7087.jpg
Views: 1443
Size:  36.6 KB
Name:  DSCF7088.jpg
Views: 1439
Size:  32.0 KB

Here you can see the stock hole once the original pressure assist bracket was removed. I mounted my new bracket and then installed the plate. From this I was able to build a mount for the pivot point.
Name:  DSCF7092.jpg
Views: 1446
Size:  50.9 KB
Name:  DSCF7093.jpg
Views: 1440
Size:  42.2 KB
Name:  DSCF7096.jpg
Views: 1446
Size:  46.0 KB

I welded in the bracket for the pivot. You can see that when the brake is pushed, the plate transfers the motion sideways. I still have to mount the pressure assist and then weld up an arm to link the end of the plate to the plunger.
Name:  DSCF7101.jpg
Views: 1449
Size:  45.8 KB
Name:  DSCF7102.jpg
Views: 1446
Size:  44.5 KB

I'll be mounting everything this weekend and then I can post pics that better show what is going on.
fabmaster is offline
Old 04-17-2010, 07:56 AM
  #46
Honda-Tech Member

ken9's Avatar

Join Date: Nov 2008
Location: Ontario, Kanada
Posts: 1,806
Default Re: Engine tuck and engine bay shave

o.k
ken9 is offline
Old 04-17-2010, 08:37 PM
  #47
Honda-Tech Member
Thread Starter

fabmaster's Avatar

Join Date: Sep 2009
Posts: 177
Default Re: Engine tuck and engine bay shave

Hopefully these will help explain things.

I built a new mount for the pressure assist and got multiple anchor points to make everything solid.
Name:  DSCF7111.jpg
Views: 1453
Size:  48.4 KB
Name:  DSCF7112.jpg
Views: 1444
Size:  49.1 KB

Here you can see why I needed to make the forward motion of the pedal turn 90 degrees to plunge the pressure assist. It is now inside and turned 90 degrees. Don't mind the spider web, I have the previous owner to thank for a hugh [email protected]%k.
Name:  DSCF7119.jpg
Views: 1515
Size:  74.4 KB
Name:  DSCF7115.jpg
Views: 1445
Size:  75.7 KB

Now when you look through the steering column brace(which was nice and open for my new bracket) you can see that the plate I made lines up with the plunger and all I have to do is make a bar that connects the two.
Name:  DSCF7116.jpg
Views: 1442
Size:  45.4 KB
fabmaster is offline
Old 04-17-2010, 09:03 PM
  #48
Honda-Tech Member

radex7's Avatar

Join Date: Jul 2008
Location: Willows, CA
Posts: 555
Default Re: Engine tuck and engine bay shave

Sweet weeping Jesus!!! You are getting really creative with this thing. Awesome fab work.
radex7 is offline
Old 04-17-2010, 09:20 PM
  #49
Honda-Tech Member
Thread Starter

fabmaster's Avatar

Join Date: Sep 2009
Posts: 177
Default Re: Engine tuck and engine bay shave

Originally Posted by radex7 View Post
Sweet weeping Jesus!!! You are getting really creative with this thing. Awesome fab work.
Hahaha, thanks man. Just trying to do it right the first time.
fabmaster is offline
Old 04-18-2010, 10:50 AM
  #50
Honda-Tech Member

Join Date: Sep 2009
Location: Spokane
Posts: 23
Default Re: Engine tuck and engine bay shave

dude mad props with all this custom stuff i hope u finsh this thread
b18a1da is offline
