How to install wheel bearings/lower ball joints (pic intensive)

Reply



Thread Tools Search this Thread
Old 03-21-2006, 10:03 AM   #1
Thread Starter

TGO-MD's Avatar

Join Date: Mar 2006
Posts: 23
Default How to install wheel bearings/lower ball joints (pic intensive)

After searching the usual spots for a lower ball joint replacement write up, I came up empty handed. I needed to replace a wheel bearing and 2 lower ball joints. The more I searched the more I read:

“I just get them done at a shop.”

Armed with my Helms, my tools, and the Force, I embarked on an enlightening journey to demystify the LBJ removal/install. As well as see how the wheel bearing removal/install went as well.

Let’s start with the wheel bearing first. The following assumptions are made:

1. Spindle has been removed from the vehicle
2. You have a hydraulic press
3. You have arbor plates
4. You have an assortment of pressing shims
5. Knuckle ring has been removed
6. Circlip has been removed
7. Screws that attached the splash guard from the spindle have been removed
a. Using a small vise grip, I was able to break them free and remove them

The tool called out for in the Helms to shim the spindle against the base is:

HUB DIS/ASSEMBLY BASE – Part # 07GAF-SD40700

When I took this part number to the Acura dealership, they told me that this part did not exist. They looked through their sources and could not find anything that would match up to it. The service rep was very helpful but could not get me this part. After some pondering I decided to go to Orchard Hardware Supply. They carry a lot of metal stock. What I found that worked PERFECTLY was:

PLAT STL-SQUARE by Steel Works
SKU # 1133032

The following is covered in the Acura Helms pages 18-13 through 18-15.

Some close-ups of the bars in action:
Name:  Anotherangleofsquarestockshim.jpg
Views: 570
Size:  15.0 KB

Now the big picture:
Name:  Pressingoutthehublargeview.jpg
Views: 605
Size:  71.1 KB

Yet another angle of the driver pushing out the hub:
Name:  Pressingthehubtopview.jpg
Views: 1338
Size:  106.3 KB

After the hub was pressed out, there was a piece that stayed with the hub:

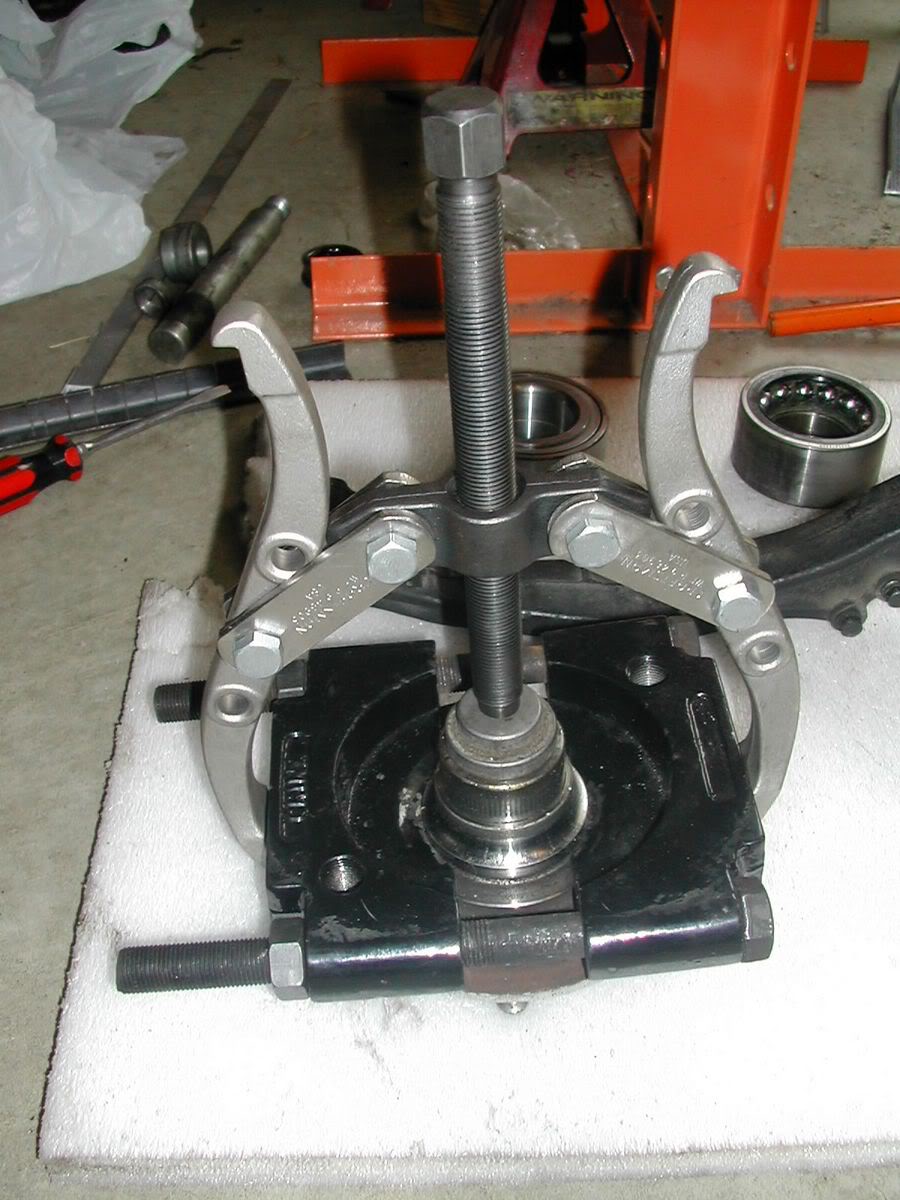

Using a gear puller and some driver shims, I removed it from the hub. The whole assembly looked like this:
Name:  Gearpullerassemblytoremovewheelbear.jpg
Views: 706
Size:  141.5 KB

After the hub was cleared of the wheel bearing piece, the parts were laid out as such. Naked spindle and wheel bearings:
Name:  Spindleandwheelbearing2withcomment.jpg
Views: 1835
Size:  98.0 KB

I kept the old wheel bearing because I used it as a backing when pressing in the new wheel bearing. Instead of using the tool called out for in the Helms:

SUPPORT BASE Part # 07965-SD90100
Name:  PressinginthewheelbearingLBJangleco.jpg
Views: 595
Size:  131.3 KB

After the wheel bearing was installed, the circlip, splash guard and splash guard screws were installed. Now goes the hub goes in:
Name:  Pressinghubbackintospindlecopycomme.jpg
Views: 1192
Size:  126.1 KB

Presto ala KAZAM! The wheel bearing is done.

Now for the lower ball joint. For tiiite-ness factor, I’ll call it the LBJ. Both LBJs had the to be replaced due to damaged threads. I purchased the LBJs from Kragen. I was lucky that there were in stock. The person behind the counter told me that they are usually special order parts.

I started looking for a tool to press these out of the spindle as well as press them into the spindle. I came across this tool from Autozone (part # 27023):

The rental cost was $100.00. You get the money back after you return the rental tool. I tried to use this tool to remove the LBJ and I got absolutely no where. After getting quotes to remove the LBJ, I headed over to H-T to see what they had to say. After searching the “hammer” it out idea was beginning to sound good. The only issue with that is how am I going to stop the LBJ from moving on its axis.

After a little amount of profound brain activities in my head, I came up with this:
Name:  ShimmedLBJreadyforhammertimecopywit.jpg
Views: 577
Size:  100.3 KB

The LBJ has been secured by using an assortment of driver attachments. The attachments were secured to the LBJ using the caster nut.

After securing the LBJ, the BFH came out to play:
Name:  HammertimeontheLBJwithshim_rotated_.jpg
Views: 598
Size:  102.7 KB

Once the “distance to hammer out” was reached, the LBJ was still in the spindle. Here is where a extra deep 17mm Craftsmen socket comes in handy. Slide the socket over the LBJ and hammer it out . (No pics )

Once the old and defunct LBJ comes out you need to prep the new LBJ so that it can be pressed in. You need to remove the retaining ring (use two needle nose pliers) and remove the boot. Be careful not to tear the rubber boot.

Place the new LBJ into the spindle where the old LBJ was hammered out. Attach the appropriate sleeve from the LBJ press so that the massive c-clamp tool will press evenly:
Name:  LBJpressinglargeview.jpg
Views: 871
Size:  99.5 KB

When using the above method, the tool does the job quite nicely. You will have to add a shim over the adapter so that the LBJ is completely pressed into the LBJ. Again, I did not take a picture of the extra shim that I added.

Within minutes, the LBJ was hammered out and pressed in.

M-
TGO-MD is offline   Reply With Quote
Old 03-21-2006, 10:08 AM   #2
Honda-Tech Member

B_CRUZ!'s Avatar

Join Date: Nov 2001
Location: CALIFORNIA
Posts: 15,383
Default Re: How to install wheel bearings/lower ball joints (TGO-MD)

great write up!
B_CRUZ! is offline   Reply With Quote
Old 03-21-2006, 10:29 AM   #3
Member

haccord2.2's Avatar

Join Date: Mar 2003
Location: Norwalk, IA
Posts: 1,094
Default Re: How to install wheel bearings/lower ball joints (B. Cruz)

Sweet write up I have done all of that before it is fun! Man that is a good idea with the gear puller and driver shims setup after you get the hub pressed out and need to remove the part of the bearing that stays with the hub. Also that looks like almost the same Harbor Freight press I use lol.
haccord2.2 is offline   Reply With Quote
Old 03-21-2006, 04:20 PM   #4
Thread Starter

TGO-MD's Avatar

Join Date: Mar 2006
Posts: 23
Default

This board moves fast. Bump to share the info.
TGO-MD is offline   Reply With Quote
Old 03-21-2006, 04:46 PM   #5
Member

ProJectCvic's Avatar

Join Date: Dec 2002
Location: Midwest, USA
Posts: 2,497
Default Re: (TGO-MD)

thanks for sharing man
ProJectCvic is offline   Reply With Quote
Old 03-21-2006, 04:58 PM   #6
Honda-Tech Member

suspendedHatch's Avatar

Join Date: Jan 2004
Location: Locash
Posts: 4,408
Default Re: How to install wheel bearings/lower ball joints (TGO-MD)

Quote:
Originally Posted by TGO-MD
After searching the usual spots for a lower ball joint replacement write up, I came up empty handed. I needed to replace a wheel bearing and 2 lower ball joints. The more I searched the more I read:

“I just get them done at a shop.”

Armed with my Helms, my tools, and the Force, I embarked on an enlightening journey to demystify the LBJ removal/install. As well as see how the wheel bearing removal/install went as well.

Let’s start with the wheel bearing first. The following assumptions are made:

1. Spindle has been removed from the vehicle
2. You have a hydraulic press
...
STOP READING

Hence, “I just get them done at a shop.”
suspendedHatch is offline   Reply With Quote
Old 03-21-2006, 05:02 PM   #7

professor poon's Avatar

Join Date: Dec 2005
Location: CA, USA
Posts: 1,245
Default Re: How to install wheel bearings/lower ball joints (suspendedHatch)

Quote:
Originally Posted by suspendedHatch
...
STOP READING

Hence, “I just get them done at a shop.”
lol precisely

56K = owned on this thread
professor poon is offline   Reply With Quote
Old 03-21-2006, 06:17 PM   #8
Honda-Tech Member
iTrader: (1)

Lewy. Dee Ayy's Avatar

Join Date: Oct 2005
Location: Dont trip.
Posts: 3,825
Default Re: How to install wheel bearings/lower ball joints (TGO-MD)

i spy another fisherman with a red eg hatch :-)
Lewy. Dee Ayy is offline   Reply With Quote
Old 03-23-2006, 09:42 AM   #9
Thread Starter

TGO-MD's Avatar

Join Date: Mar 2006
Posts: 23
Default

You spy correctly. Trout, bass, and deep sea fishing.

Can't beat running 4lb test with a 2lb leader and landing a fiesty one. The sound of the drag being pulled by the fish is almost if not as good as the sound of mad vTAk.

M-
TGO-MD is offline   Reply With Quote
Old 09-18-2007, 01:21 PM   #10

mjr125's Avatar

Join Date: Jan 2007
Posts: 1
Default Re: How to install wheel bearings/lower ball joints (TGO-MD)

Please help ....... I currently have the knuckle off the car and in a press. It is setup identical to TGO-MD's second pic. The problem that I am having is that I can't get the hub to budge, but the two metal support rods are bending like crazy. I bought 1/2" x 1/2" stainless steel 416, Grainger Item #5UE11 and they cost me $20 bucks each. I can't comprehend anything being strong enough to withstand the necessary force to get the hub out. What am I missing? Anyone else have this problem?
mjr125 is offline   Reply With Quote
Old 09-18-2007, 01:50 PM   #11
Honda-Tech Member

instrument's Avatar

Join Date: Jan 2006
Location: n.c.
Posts: 3,326
Default

i don't see how this write up helps us.
hands up to everyone with hydraulic presses in their garages?!?!?!?!!
instrument is offline   Reply With Quote
Old 09-18-2007, 02:07 PM   #12
Honda-Tech Member

crxses's Avatar

Join Date: Feb 2004
Location: Chicago, IL
Posts: 262
Default Re: (instrument)

I have one sitting in my closet right now, don't you???
crxses is offline   Reply With Quote
Old 09-18-2007, 04:24 PM   #13
Honda-Tech Member

killafred187's Avatar

Join Date: Apr 2007
Location: west covina, ca, usa
Posts: 269
Default Re: How to install wheel bearings/lower ball joints (TGO-MD)

thanks man!!!
killafred187 is offline   Reply With Quote
Old 09-18-2007, 04:25 PM   #14
Honda-Tech Member

Boost_V's Avatar

Join Date: May 2007
Location: NJ, USA
Posts: 3,332
Default Re: How to install wheel bearings/lower ball joints (killafred187)

Thank you. great, clear pics, with labels
Boost_V is offline   Reply With Quote
Old 09-18-2007, 04:29 PM   #15
Honda-Tech Member

drtysohc's Avatar

Join Date: Oct 2006
Location: Lees Summit/Kansas City, MO, USA
Posts: 483
Default

i'm sure someone you know has a press. ask around. they're not that expensive, and have plenty of uses.
drtysohc is offline   Reply With Quote
Old 09-18-2007, 04:42 PM   #16

Azn Kenny's Avatar

Join Date: Aug 2005
Location: FL, USA
Posts: 946
Default

You are the man! A true DIY'er.
Azn Kenny is offline   Reply With Quote
Old 11-30-2007, 07:01 AM   #17
Honda-Tech Member

HatchbackSqueegee's Avatar

Join Date: Oct 2004
Location: Bay in CA
Posts: 557
Default Re:

"LBJ has been secured by using an assortment of driver attachments"

What are those driver attachments? and where would I find them? Also what is that adapter you used on the C clamp to press the LBJ back in? Did you do your own UBJ too?
HatchbackSqueegee is offline   Reply With Quote
Old 02-01-2008, 11:36 AM   #18
Honda-Tech Member

akandok's Avatar

Join Date: Oct 2002
Location: Sacramento, Ca
Posts: 2,256
Default

I also wanted to know where you get these shims and attachments
akandok is offline   Reply With Quote
Old 02-01-2008, 11:44 AM   #19
Resident Gearhead
iTrader: (1)

BryanM.'s Avatar

Join Date: Aug 2007
Location: Midcoast Maine, USA
Posts: 5,581
Default Re: How to install wheel bearings/lower ball joints (TGO-MD)

TGO-MD

Thanks I gotta do a ball joint soon and its gonna get done your way.
BryanM. is offline   Reply With Quote
Old 02-01-2008, 11:53 AM   #20
Member

crazyguy's Avatar

Join Date: Jun 2007
Location: LA, CA
Posts: 2,726
Default Re: How to install wheel bearings/lower ball joints (TGO-MD)

very nice write up.i just rplaced the lower ball joint a few weeks ago. man.took me hours.
crazyguy is offline   Reply With Quote
Old 02-01-2008, 11:55 AM   #21
Honda-Tech Member

Relic1's Avatar

Join Date: Oct 2002
Location: chicago burbs, Il, USA
Posts: 4,941
Default

if you don't have access to a small enough or thin enough gear puller to pull the bearing race, cut a slot in the race with a cut off wheel, place a cold cut chissel in the slot and whack it with a hammer. the race will snap right off.
Takes less than 1/2 the time as the puller.

it was also a great tme to upgrade the wheel studs.

but great write up, reminded me of when I did mine.
Relic1 is offline   Reply With Quote
Old 02-01-2008, 06:47 PM   #22
Honda-Tech Member

akandok's Avatar

Join Date: Oct 2002
Location: Sacramento, Ca
Posts: 2,256
Default Re: (Relic1)

Quote:
Originally Posted by akandok
I also wanted to know where you get these shims and attachments
akandok is offline   Reply With Quote
Old 04-23-2008, 05:19 PM   #23
Honda-Tech Member
iTrader: (1)

zrickety's Avatar

Join Date: Oct 2007
Location: Cordele, GA, US
Posts: 1,896
Default Re: (akandok)

in for shims and attachments...harbor freight?
zrickety is offline   Reply With Quote
Old 04-23-2008, 07:04 PM   #24
Junior Member

Dan8yourV8's Avatar

Join Date: Feb 2008
Location: conowingo, md
Posts: 78
Default Re: How to install wheel bearings/lower ball joints (B_CRUZ!)

yep
Dan8yourV8 is offline   Reply With Quote
Old 06-14-2008, 07:15 PM   #25
Honda-Tech Member

Tyson's Avatar

Join Date: Apr 2002
Location: I am Tyson
Posts: 18,162
Default Re: How to install wheel bearings/lower ball joints (TGO-MD)

Quote:
Originally Posted by TGO-MD
After the wheel bearing was installed, the circlip, splash guard and splash guard screws were installed
dont forget that circlip!
Tyson is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Schley Lower Ball Joint Air Hammer Tool thelizard_king Suspension & Brakes 8 08-10-2017 08:28 PM
Front lower ball joint replacement advice 97 Accord SE zorobabel Honda Accord (1990 - 2002) 30 07-22-2017 02:04 PM
My no good, horrible, very bad wheel stud experience user456101 Honda Accord & Crosstour (2003 - 2012) 1 10-13-2016 07:20 AM
Lower ball joint controversy eghatch9295 Honda Civic / Del Sol (1992 - 2000) 2 02-23-2016 07:17 AM
Dangers of crap aftermarket parts NMJimCRV Honda Element & CR-V 16 02-21-2016 07:59 PM


Tags
1995, 2002, accord, ball, bearing, bearings, bone, buddies, civic, honda, install, joint, red, removing, replacement, wheel

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -8. The time now is 04:01 PM.



  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
