Default B16 Bottom End Assembly - Complete Walk through - Maybe Sticky

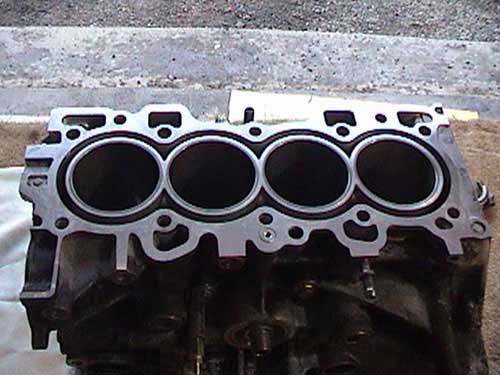

With the engine back from getting machined and cleaned, set the motor on a clean area.

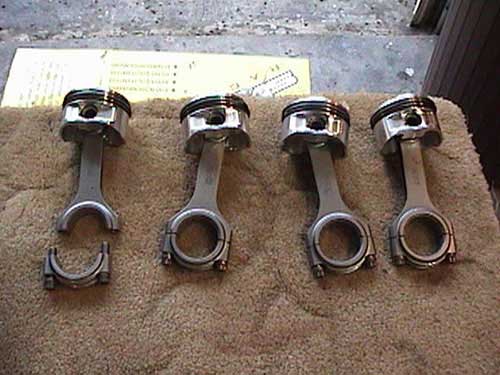

Many motor shops will tell you which piston to use in which cylinder even though all cylinders and pistons should be the same size.

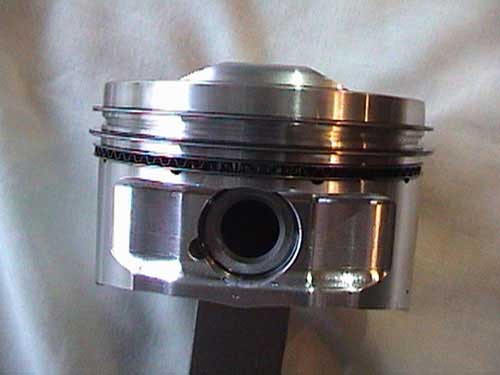

Make sure the wrist-pin is lubed and the gaps are placed correctly. Never put a cap inline with the pin or in a thrust area.



Get a rag and oil the cylinders heavily prior installing the pistons.

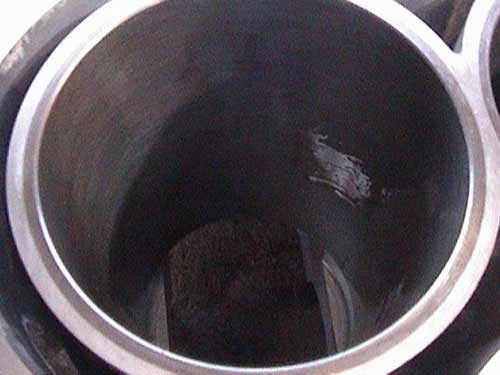

There should be plenty of oil on the cylinder walls.

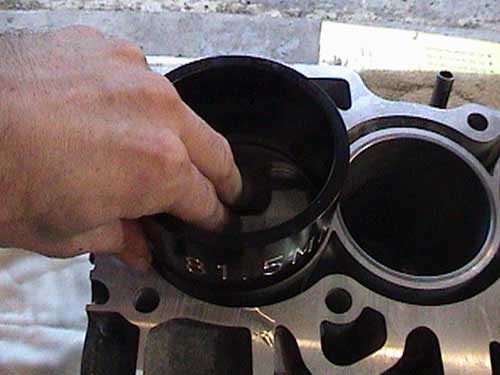

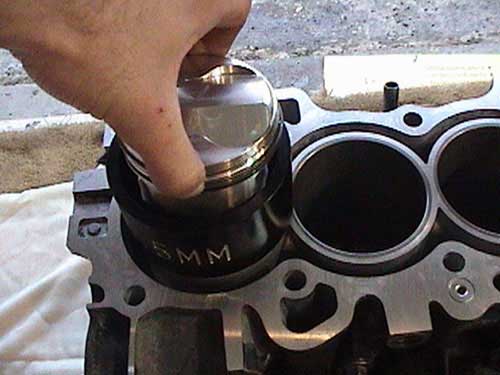

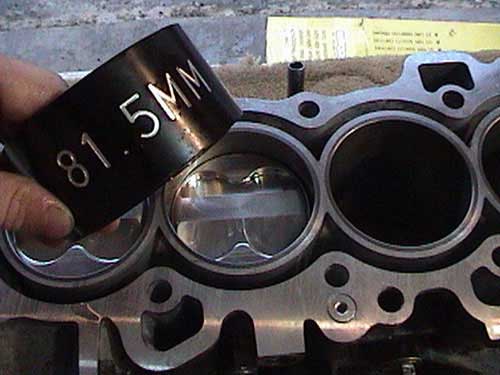

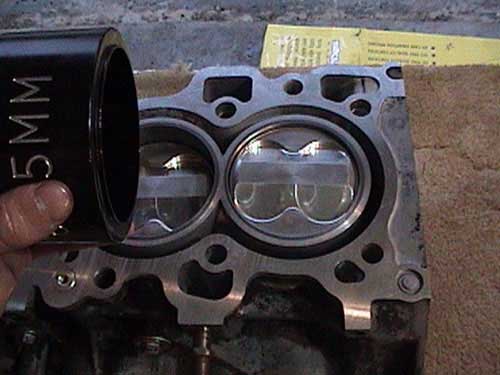

Take your ring compressor (I love my ARP one), oil the inside heavily and compress the rings on the piston.

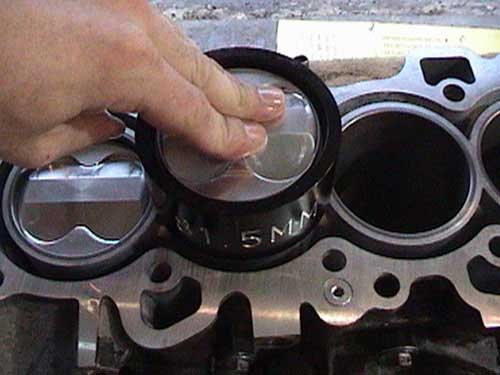

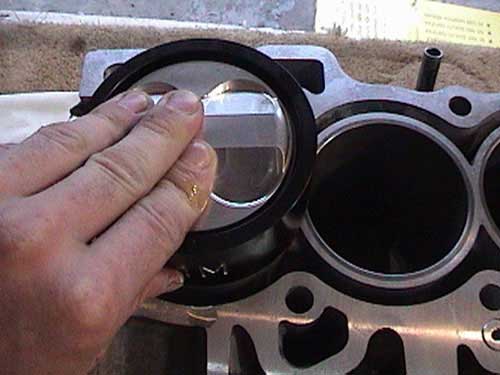

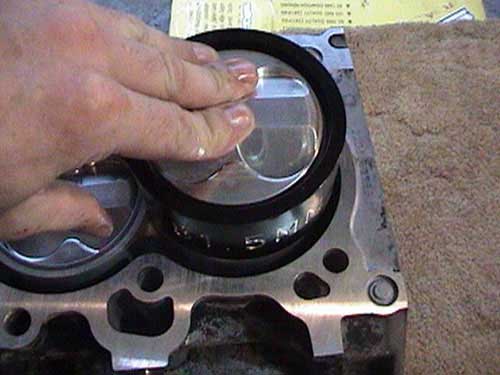

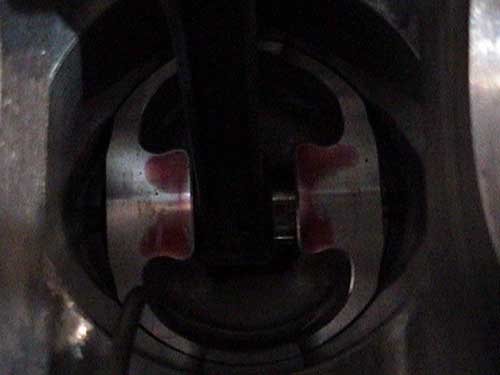

Push the piston into the cylinder gently, if a ring gets caught on the cylinder wiggle it around a little while pushing. Do not force it, it does not take much to break a ring.

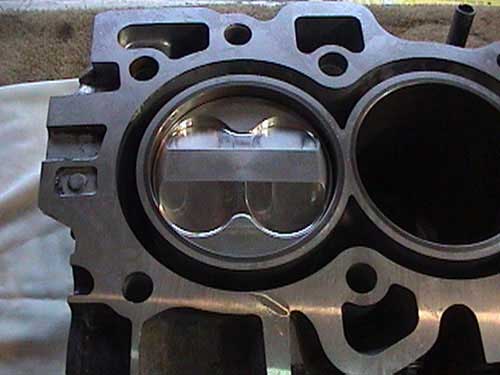

There she goes.



That is one done.



Repeat the process for the other 3, making sure that each cylinder and piston is well oiled, along with the ring compressor.



That is two done

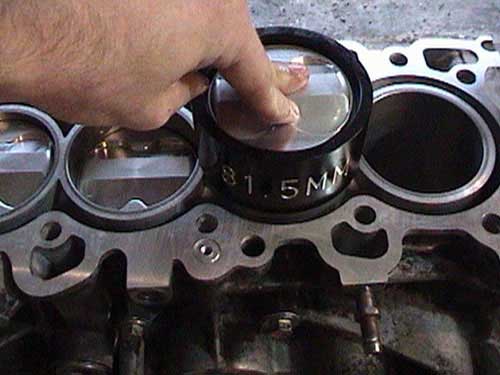

Pushing in the 3rd one

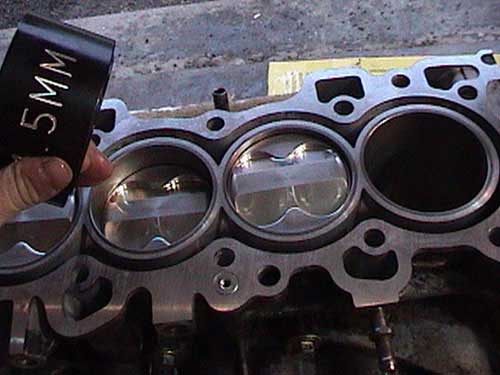

That is three done.



Pushing in the last one.



That is four done.

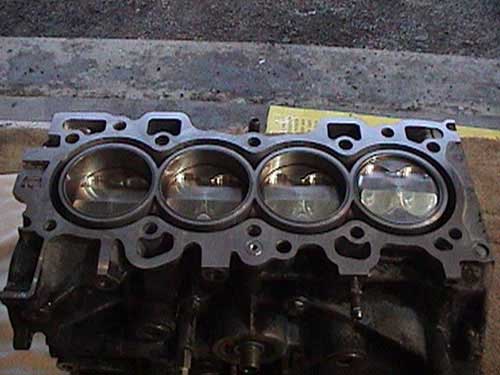

Well theres a half way built bottom end

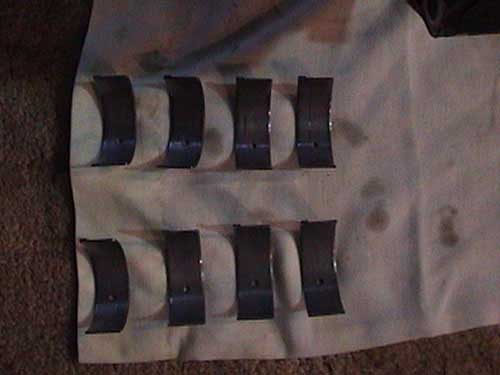

Laying out the rod bearings. There is not a difference between the upper or lower ones.



Here is a rod cap.



Notice the notch in the corner.



Notice the notch in the corner of the rod bearing.



Match the notches up and push the bearing into the rod cap.

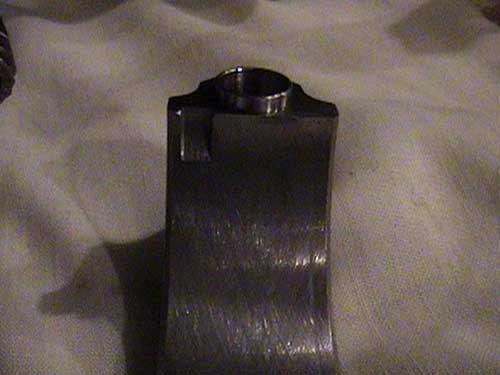

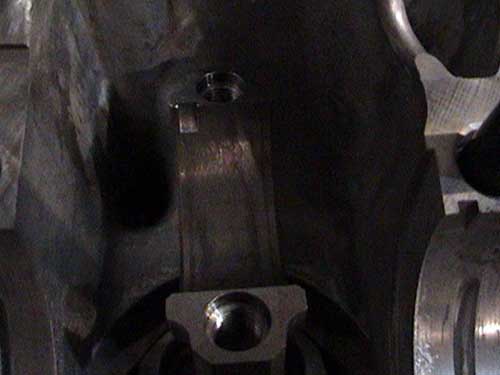

Here is the bottom of the rod. Once again, notice the notch.

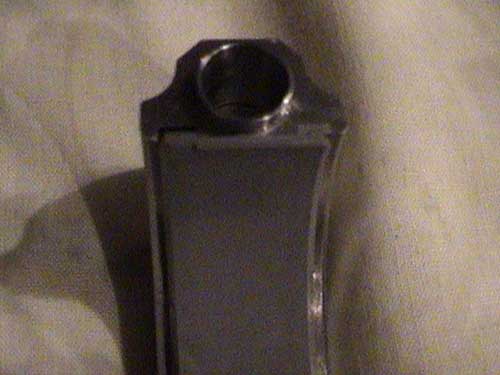

Match the notches up and push the bearing into the rod

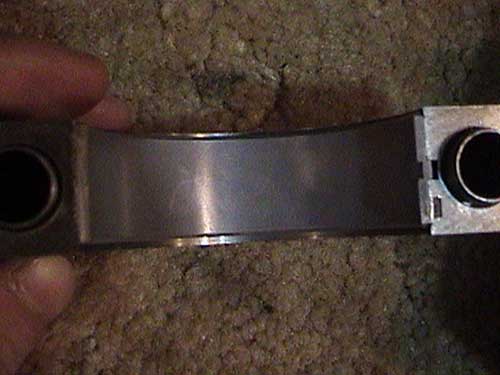

Lube up the rod bearings on the rods.



Lube up the rod bearings on the rod caps.

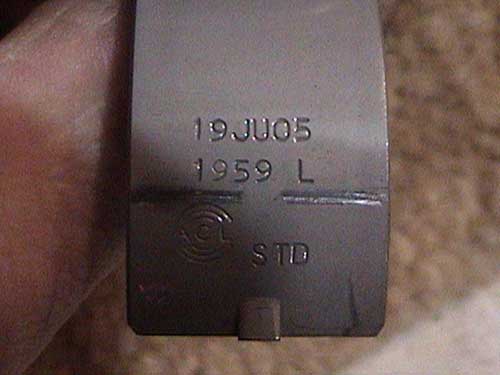

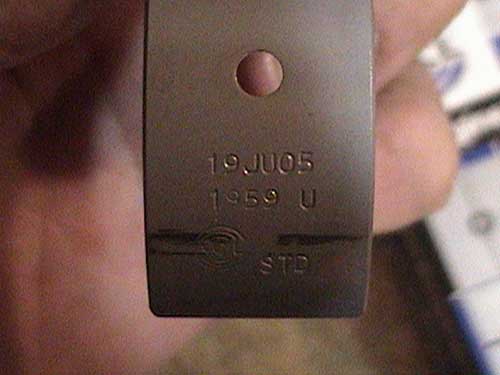

Here is the main bearing. On ACL bearings that have a U or an L to distinguish the upper and lower bearings. This is an upper bearing, meaning that it goes into the block.



This is the lower bearing, meaning it goes on the main cap.

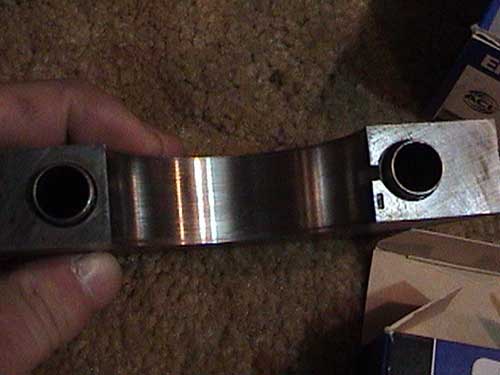

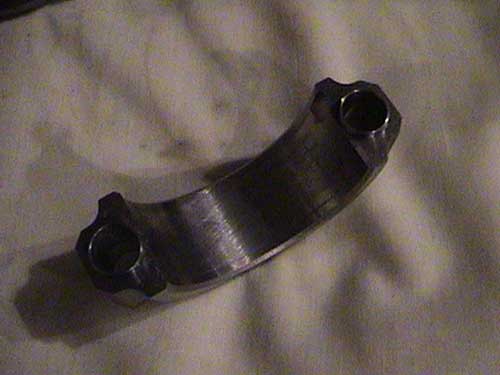

Here is a main cap. Once again there is that notch.



Line up the notches and push the bearing into the main cap.

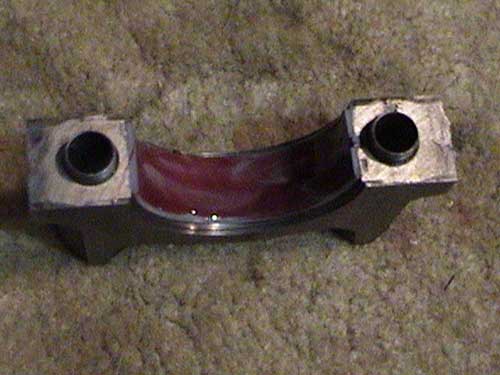

Lube the bearing in the main cap.

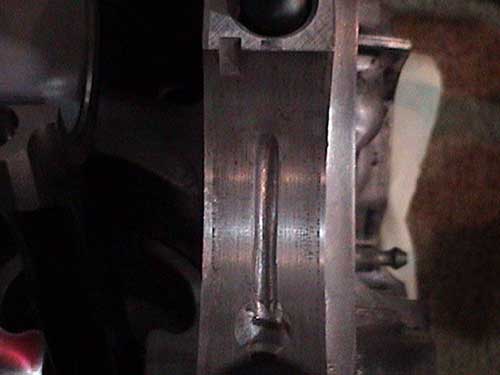

On to the block. yep, there is that notch.

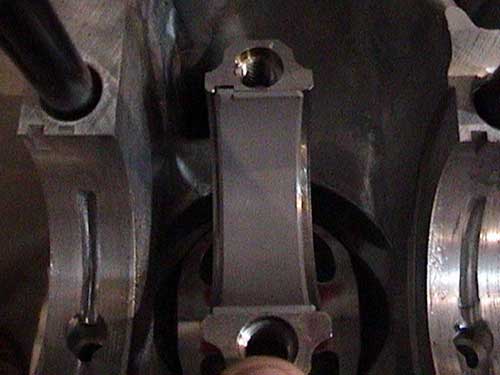

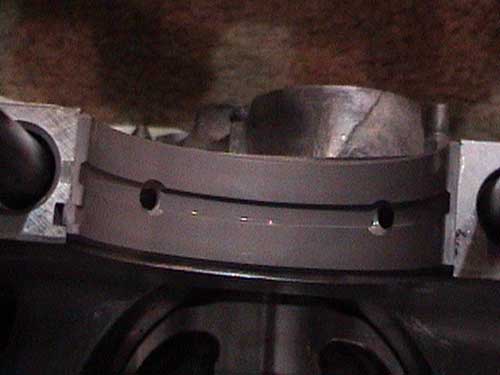

Match the notches up and push the bearing into the block.

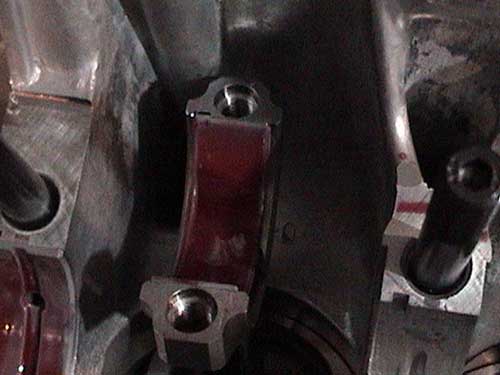

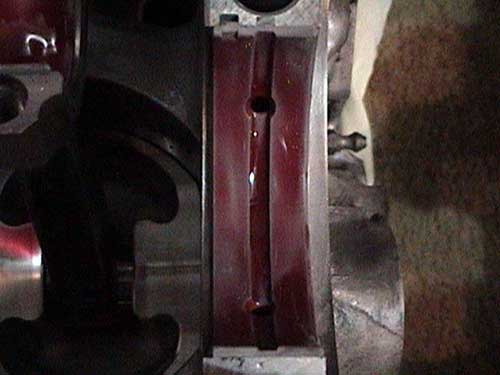

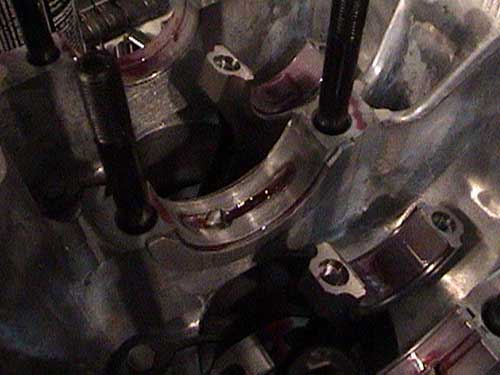

Lube it up.



I also like putting more assembly lube on the wrist pin.



The thrust washers are inserted. If you put assembly lube on the back of them, they will stay in place while you get the crank in.



With everything lubed, its time to drop the crank in.



Looks good lets start bolting up things



Rotate the crank until the 2 middle rods or 2 end rods line up.



In my case the middle rods lined up first.

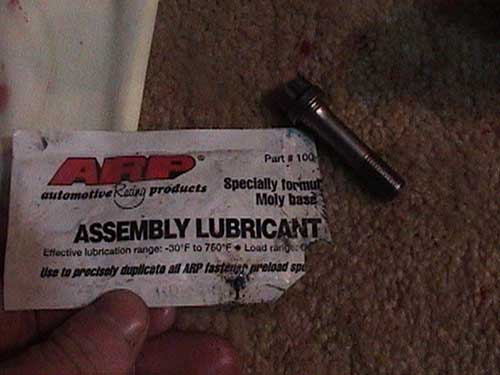

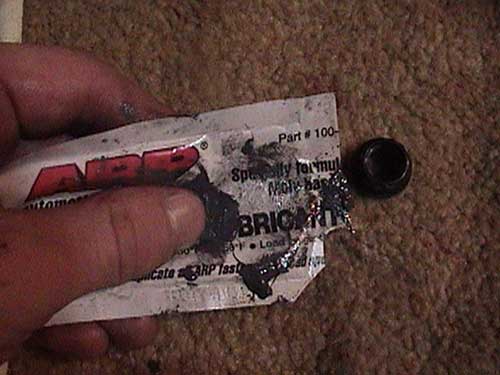

Lube the ARP bolt with ARP lube.

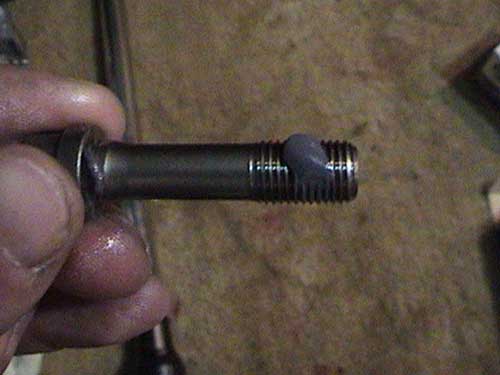

Looks good... now smear it on the threads



Place the rod cap on



Well place both rod caps on

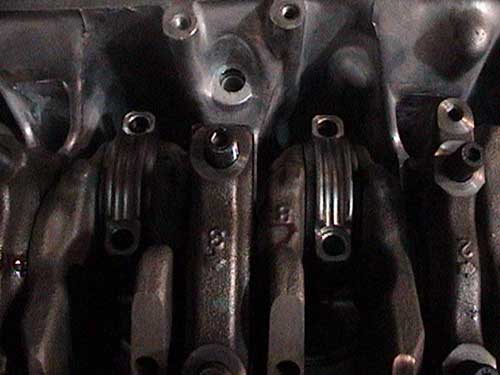

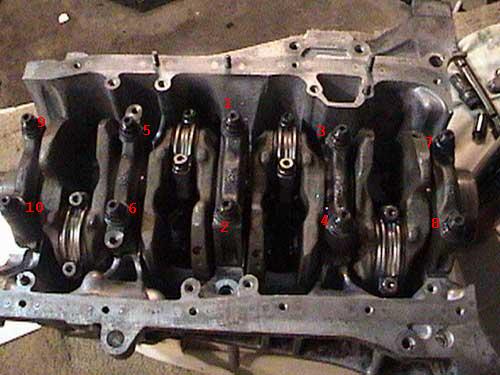

The correct order is labeled above

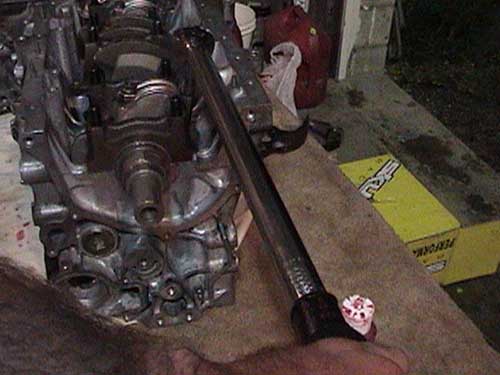

Torque them down according to specs. I always torque them first to half the final torque specs. then increase in increments of 10 until the specified torque is reached.



Still tightening.

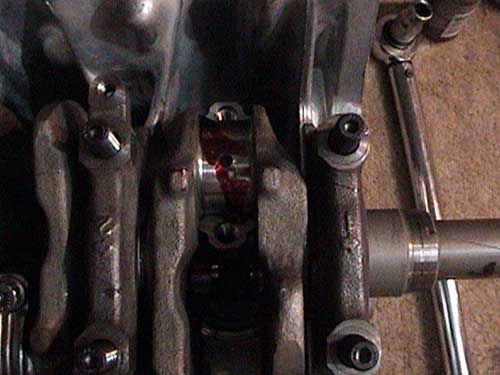

Rotate the crank until the end rods line up.



Forgot to mention on the middle two, I like putting assembly lube on the crank too.

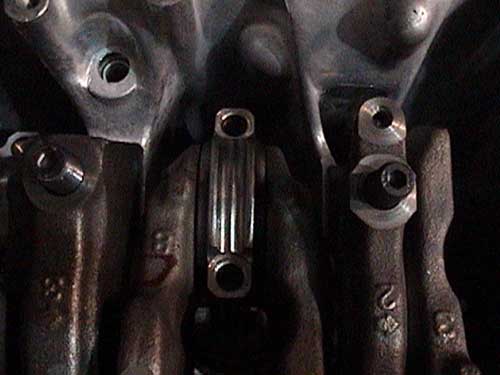

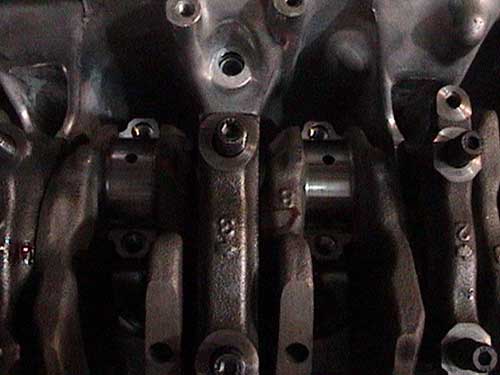

Tighten those rod caps up too.



Well the rods are done, moving onto the mains.

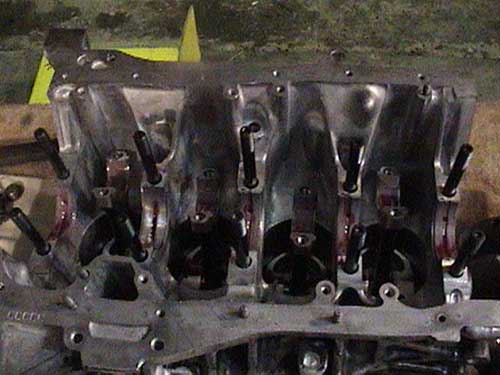

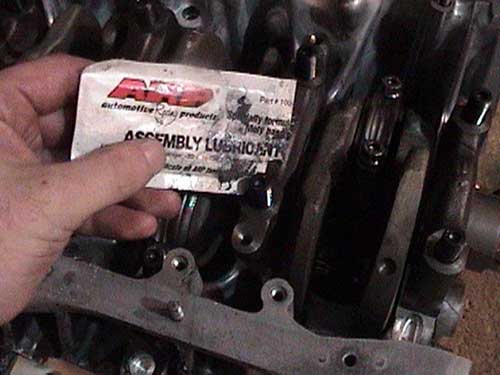

Lube the ARP main bolts with ARP lube.

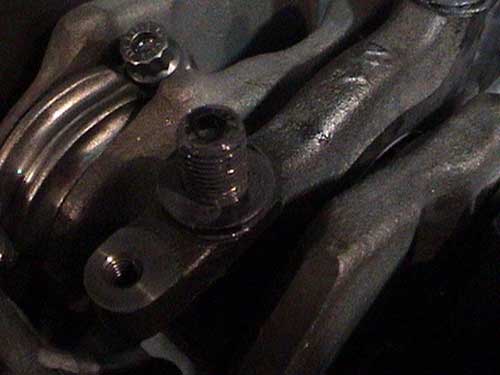

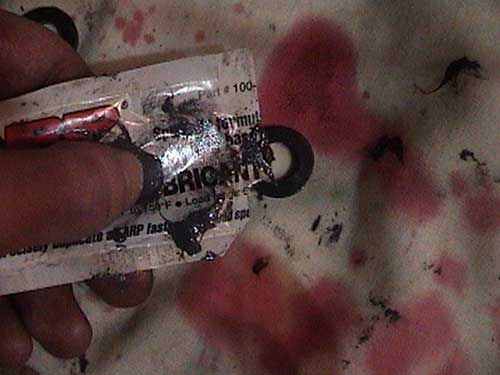

Lube the ARP main bolt washers with ARP lube. This will lessen the friction between the block and head of the bolt.

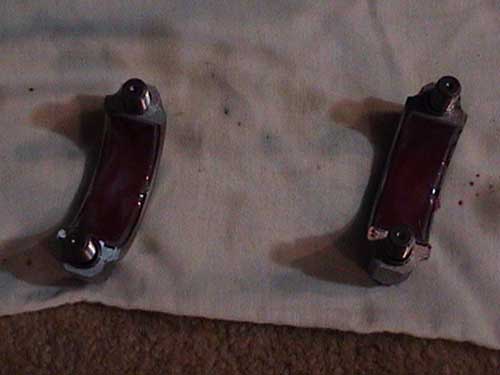

Lube the ARP main bolt nuts with ARP lube. Just put a little lube on the bottom side of the nut, to lessen friction.



Looks lubed to me.

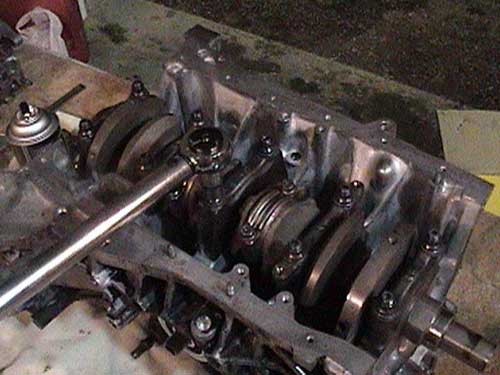

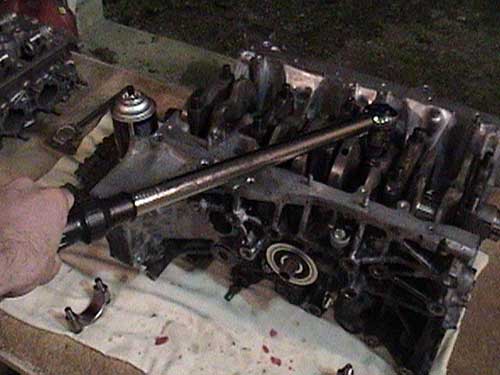

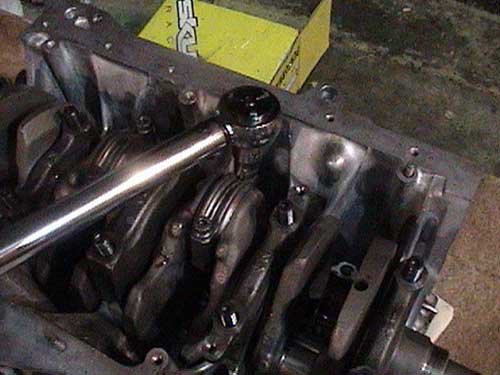

Start tightening the main bolts. I always torque them first to half the final torque specs. then increase in increments of 10 until the specified torque is reached. For example torque specs were 70. I started at 30 tightening all of them then 40 then 50 then 60 then 70. Then doubling checking them.

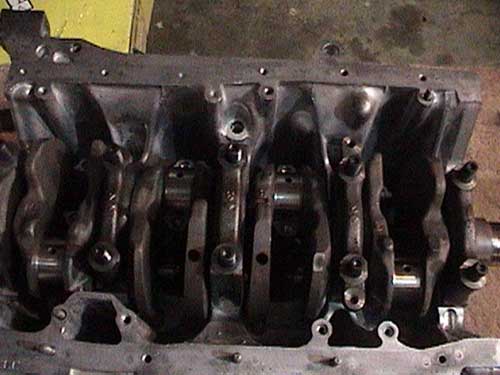

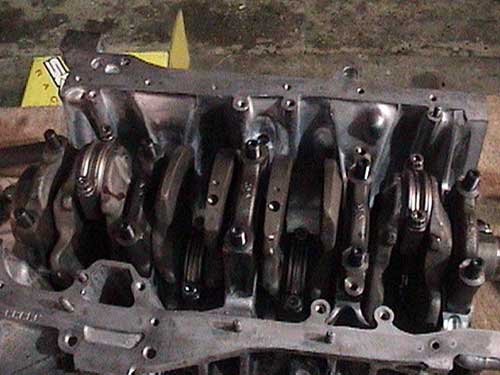

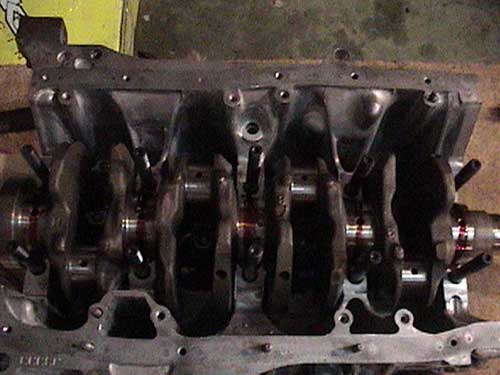

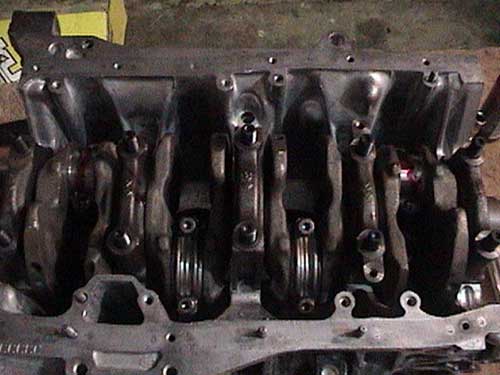

Well the crank and rods are bolted in.

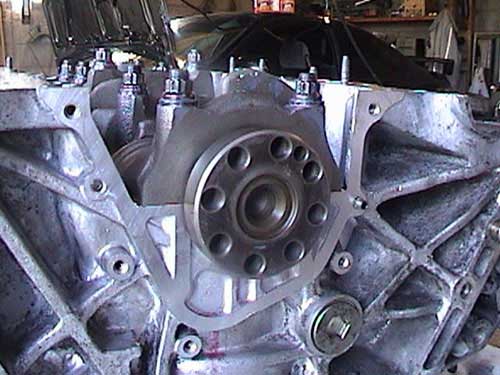

Rear main.



Rear main seal.

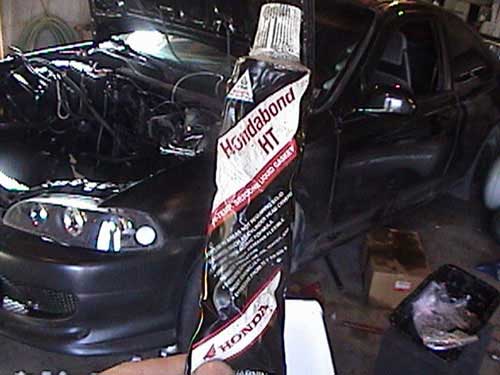

This stuff is pricey but well worth it.

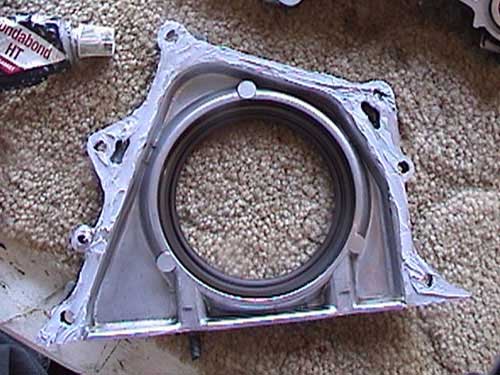

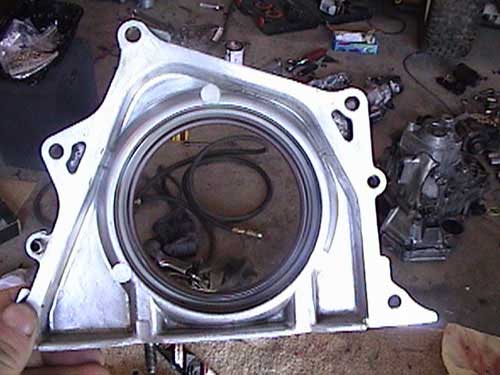

Rear main seal all Hondabond-ed up and ready.

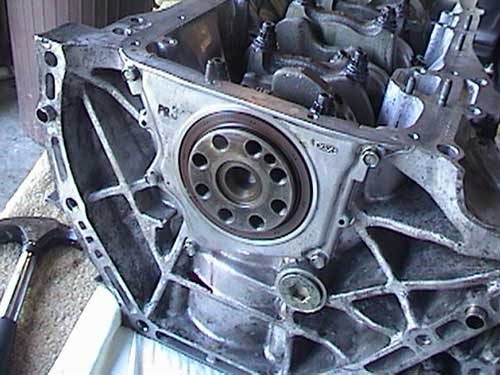

Well the rear main is ready to roll.



Scatter shield.



It goes here.

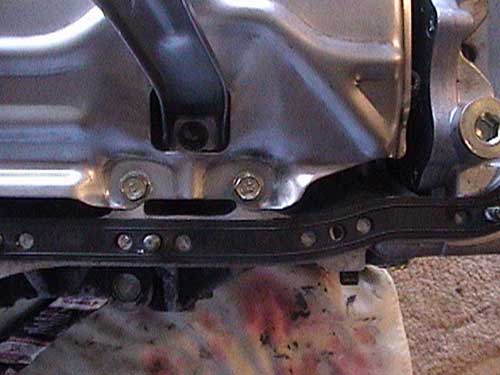

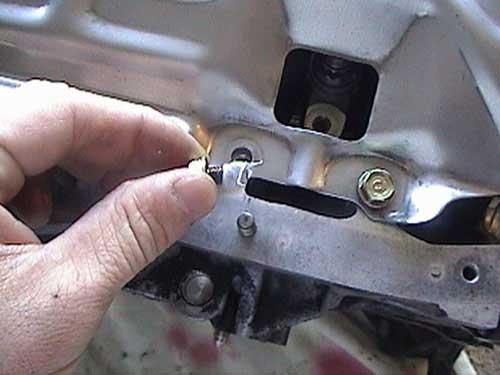

I like to Hondabond these bolts, since lock tight would be a bad idea.

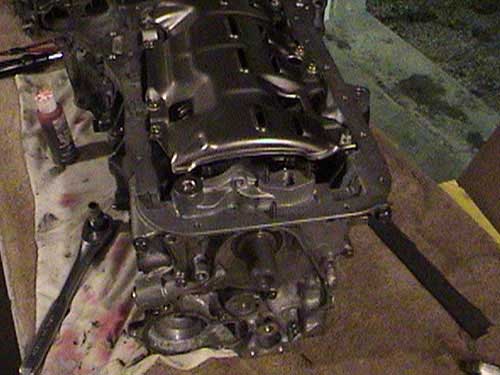

Well the scattershield is on.



The oil pump all cleaned with brakekleen and ready to go.

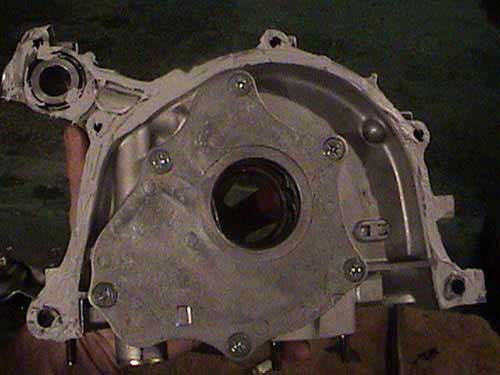

Hondabond-ed and ready to roll.



Yea that's where the oil pump is going... make sure the meeting surface is oil free.



Now its time for the oil pick up.

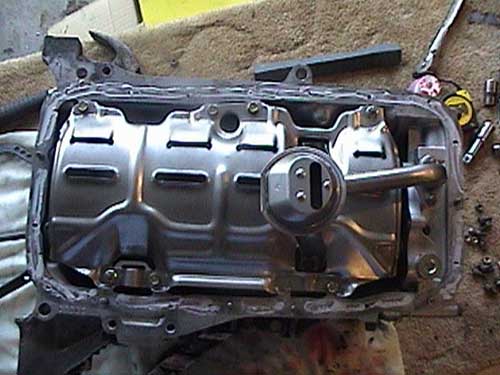

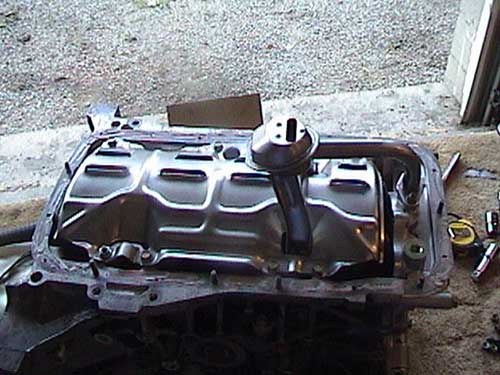

Put the oil pick-up on.

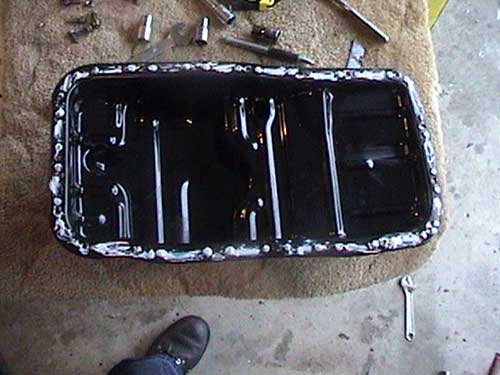

I like to put some Hondabond on the block and oil pan.



Just like that. It will push the gasket out some when tightening since it'll be slippy, so don't over tighten the bolts.

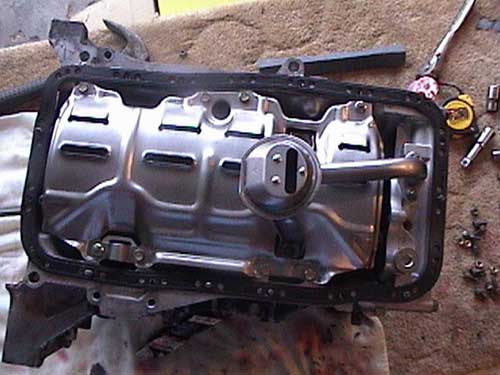

Line up the oil pan gasket on the block.



Like this.

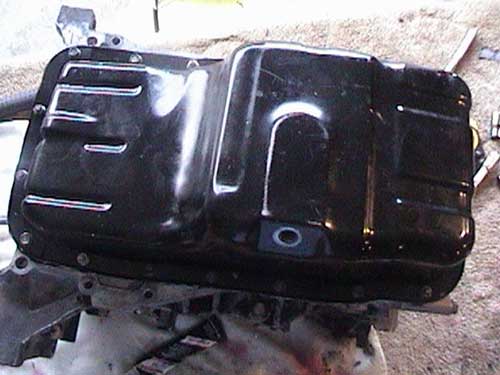

Then finish up by bolting the oil pan on. The bottom end is now done.

Last edited by doublejz; 06-11-2009 at 11:42 AM.
doublejz is offline   Reply With Quote
Old 03-16-2007, 09:57 AM   #2
Honda-Tech Member
Thread Starter

doublejz's Avatar

Join Date: Aug 2003
Location: Greensburg, PA, USA
Posts: 1,873
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (doublejz)

Note this is after everything has been plastiguaged and checked for clearances.
doublejz is offline   Reply With Quote
Old 03-16-2007, 10:18 AM   #3
Honda-Tech Member

Winlight's Avatar

Join Date: Feb 2007
Location: Lincoln, CA
Posts: 318
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (doublejz)

nice work
Winlight is offline   Reply With Quote
Old 03-16-2007, 10:19 AM   #4
Junior Member

Forty04's Avatar

Join Date: Apr 2006
Location: Grand Rapids, MI, United States
Posts: 254
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (Winlight)

beautiful!
Forty04 is offline   Reply With Quote
Old 03-16-2007, 10:24 AM   #5
Honda-Tech Member

hardEH2's Avatar

Join Date: Mar 2007
Location: Sesame Street
Posts: 350
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (doublejz)

good stuff, should be thrown into FAQs, good job man.
hardEH2 is offline   Reply With Quote
Old 03-16-2007, 10:29 AM   #6

Join Date: Oct 2006
Location: USA
Posts: 1,745
Default

Damn im not even done reading but it looks crazy good thanks for teh great walkthough
Felliph3 is offline   Reply With Quote
Old 03-16-2007, 10:31 AM   #7

Join Date: Mar 2007
Location: trial member
Posts: 143
Default

nice pics it should help some people out, it should def get stickied
liquid:cooled is offline   Reply With Quote
Old 03-16-2007, 10:39 AM   #8
Honda-Tech Member
iTrader: (2)

RICE POLICE SIP's Avatar

Join Date: Nov 2002
Location: Sin City, NV, usa
Posts: 5,166
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (hardEH2)

nice write up! I think if you posted up the plastic gauging and how you came up with what bearings would help just a little bit more. But still a great write up non the less!!
RICE POLICE SIP is offline   Reply With Quote
Old 03-16-2007, 10:50 AM   #9
Honda-Tech Member

Syndacate's Avatar

Join Date: Jan 2006
Location: Rochester, New York -> Santa Clara, CA
Posts: 10,445
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (RICE POLICE SIP)

Nice man, this should be put up as an FAQ.
Syndacate is offline   Reply With Quote
Old 03-16-2007, 10:54 AM   #10

93eg2james's Avatar

Join Date: May 2006
Location: in yo fridge eatin yo foodz
Posts: 1,567
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (RICE POLICE SIP)

Awesome Writeup dude! PM a mod, this should def go in the FAQ's! Awesome work!
93eg2james is offline   Reply With Quote
Old 03-16-2007, 10:57 AM   #11
Honda-Tech Member

Luserkid's Avatar

Join Date: Oct 2002
Location: Cali
Posts: 12,653
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (doublejz)

Quote:
Originally Posted by doublejz
Note this is after everything has been plastiguaged and checked for clearances.
Seriously along with the ring gap and such. Those are the most important in building a motor. Also the machine shop wanted you to use which piston in which cylinder because they used that piston for that cylinder when they bored it.

Other then missing a few things this is a good write up
Luserkid is offline   Reply With Quote
Old 03-16-2007, 11:00 AM   #12
Honda-Tech Member

.I.Need.Money.'s Avatar

Join Date: May 2006
Location: The North West
Posts: 1,094
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (doublejz)

Good stuff!
.I.Need.Money. is offline   Reply With Quote
Old 03-16-2007, 11:32 AM   #13
Member

B16b-EJ8's Avatar

Join Date: Apr 2006
Location: Relocating, usa
Posts: 1,620
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (RICE POLICE SIP)

Quote:
Originally Posted by RICE POLICE SIP
nice write up! I think if you posted up the plastic gauging and how you came up with what bearings would help just a little bit more. But still a great write up non the less!!
x2
B16b-EJ8 is offline   Reply With Quote
Old 03-16-2007, 11:47 AM   #14
Honda-Tech Member

slowinteg's Avatar

Join Date: Sep 2005
Location: orange county, ca, usa
Posts: 52
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (B16b-EJ8)

slowinteg is offline   Reply With Quote
Old 03-16-2007, 12:27 PM   #15
* B A N N E D *

Join Date: Oct 2006
Location: murr town, ca
Posts: 2,118
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (slowinteg)

check for cleances with a feeler guage, also torque specs could be found under a del sol vtec trim or 99-00 civic em1

scatter tray= windage tray
spork motorsports is offline   Reply With Quote
Old 03-16-2007, 02:21 PM   #16
Honda-Tech Member
Thread Starter

doublejz's Avatar

Join Date: Aug 2003
Location: Greensburg, PA, USA
Posts: 1,873
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (spork motorsports)

plastiguage > feeler guage

Specs vary depending on parts.

As shown in the pictures, I used ARP bolts. The del sol vtec trim torq is different then the ARP. Use the specs for the parts that you purchase.

Also, to be a real PIA you can do bolt stretches using a Rod-Bolt Stretch Gauge to be 100% perfect http://www.chevyhiperformance....info/
doublejz is offline   Reply With Quote
Old 03-16-2007, 04:32 PM   #17
Honda-Tech Member
Thread Starter

doublejz's Avatar

Join Date: Aug 2003
Location: Greensburg, PA, USA
Posts: 1,873
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (doublejz)

move to FAQ...


Modified by doublejz at 8:51 PM 3/16/2007
doublejz is offline   Reply With Quote
Old 03-16-2007, 04:46 PM   #18
Honda-Tech Member

Luserkid's Avatar

Join Date: Oct 2002
Location: Cali
Posts: 12,653
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (doublejz)

Quote:
Originally Posted by doublejz
sticky me
No offense but i dont think there going to sticky this. If you PM Bense hell update the first page list of FAQs but it wont be sticky. Theres alot of good write ups out there that other people have done that if we stickied them all we wouldnt have a first page. Nothing personal.
Luserkid is offline   Reply With Quote
Old 03-16-2007, 04:48 PM   #19

Join Date: Oct 2006
Location: USA
Posts: 1,745
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (Luserkid)

Quote:
Originally Posted by Luserkid

No offense but i dont think there going to sticky this. If you PM Bense hell update the first page list of FAQs but it wont be sticky. Theres alot of good write ups out there that other people have done that if we stickied them all we wouldnt have a first page. Nothing personal.
Yea true that,he wont sticky it,but im sure hell put it on the FAQs
Felliph3 is offline   Reply With Quote
Old 03-16-2007, 04:58 PM   #20
Honda-Tech Member

cambopheonix56's Avatar

Join Date: Mar 2004
Location: Iowa
Posts: 3,531
Default Re: B16 Bottom End Assembly - Complete Walk through - MaybeSticky (Felliph3)

cambopheonix56 is offline   Reply With Quote
Old 03-16-2007, 05:25 PM   #21
Junior Member

ek4h's Avatar

Join Date: Jun 2006
Location: SIN CITY
Posts: 293
Default

NICE DIY!!
ek4h is offline   Reply With Quote
Old 03-17-2007, 07:15 PM   #22
Honda-Tech Member

B18CivicEH2's Avatar

Join Date: Jan 2006
Location: KillahKallih, Ca
Posts: 2,564
Default Re: (ek4h)

nice write up man....if anyone wants another one with more details....check this GSR BLOCK ASSEMBLE
http://www.evans-tuning.com/tech1.html
B18CivicEH2 is offline   Reply With Quote
Old 03-17-2007, 08:47 PM   #23

93eg2james's Avatar

Join Date: May 2006
Location: in yo fridge eatin yo foodz
Posts: 1,567
Default Re: (B18CivicEH2)

Quote:
Originally Posted by B18CivicEH2
nice write up man....if anyone wants another one with more details....check this GSR BLOCK ASSEMBLE
http://www.evans-tuning.com/tech1.html
Wow, that was really nice! Awesome write up by those guys. The guys at Evans-tuning are amazing.
93eg2james is offline   Reply With Quote
Old 03-18-2007, 07:56 AM   #24
Honda-Tech Member
Thread Starter

doublejz's Avatar

Join Date: Aug 2003
Location: Greensburg, PA, USA
Posts: 1,873
Default Re: (93eg2james)

ok... so mine sucks compared to that one... so. *sniff* *sniff*
doublejz is offline   Reply With Quote
Old 03-18-2007, 08:58 AM   #25

Join Date: Jan 2006
Location: Fakeville, USA, USA
Posts: 838
Default Re: (doublejz)


One major problem here.

Torquing down in 5 ft-lbs increments is a very bad and unsafe practice. The break-away torque on the bolt/nut is in most cases more than 5 ft-lbs.

Also, never put hondabond over the entire oil pan gasket. You are gonna get leaks for sure. The steel pan will flex hondabond doesn't make for a good fit when it does flex. It should only be put in the corners of the oil pump and rear cover.


Other than that, good job.
F20Cteg is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
How to build a "reliable" lsvtec/b20vtec bambam All Motor / Naturally Aspirated 2147 03-14-2017 07:34 AM
Engine rebuild crankshaft problems??? _EF9 Acura Integra 30 06-12-2016 06:33 AM
Testing Waters - How much to sell a 93 civic for doublejz For Sale 2 07-09-2006 04:14 PM
What exactly is the clutch switch? pkarandi Honda Prelude 7 04-28-2006 07:47 AM
New exedy street clutch or used act street/strip clutch doublejz Tech / Misc 4 10-09-2005 09:30 AM


Tags
assembling, assembly, b16, bottom, cap, civic, end, honda, main, rear, rod, s20, seal, specs, steps, torque, walkthrough

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -8. The time now is 09:15 AM.



  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
