93 Civic DX wiper malfunctioning
#1
93 Civic DX wiper malfunctioning
Hi folks, I recently experienced a problem w/my wipers. Suddenly the low & high functions completely stopped working while Intermit would function normally. Also, mist will not work, although you can spray but the wipers wont respond in either Low or High position.
Any suggestions?
Thanks for the help!
Any suggestions?
Thanks for the help!
#2
Re: 93 Civic DX wiper malfunctioning
Found various diagnostics for wipers.
I have checked the continuity of the wiper switch & it passes, including oddly low & high. I also disassembled the cowling to gain access to wiper motor & tested it. By testing the motor by applying + & - directly from battery the wiper motor operates at both low & high speeds.
I'm at al loss. What's left in to check? The ICU? To recapp the wiper suddenly stopped woring in the low & high positions but will work in the intermitt however mist will not work either. The unit can still stray fluid...
Any wiper wizards out there?
I have checked the continuity of the wiper switch & it passes, including oddly low & high. I also disassembled the cowling to gain access to wiper motor & tested it. By testing the motor by applying + & - directly from battery the wiper motor operates at both low & high speeds.
I'm at al loss. What's left in to check? The ICU? To recapp the wiper suddenly stopped woring in the low & high positions but will work in the intermitt however mist will not work either. The unit can still stray fluid...
Any wiper wizards out there?
#5
Re: 93 Civic DX wiper malfunctioning
thanks Ron. How do I test ground wire in connector? Simply check continuity between the ground wire & hot lead in the 8P connector?
Wiper problem seemed to coincide w/a diy Fragmare had posted which detailed the installation of one wire horns using the existing relay. The diy worked. Perhaps it was a coincidence but, the next time I attempted to use the wipers I discovered that they wouldn't run on low, high, or mist & would only wipe once in interm. I had looked at wiring diagrams before doing the diy. There doesn't seem to be a connection between the diy 2 black wires going into the horn relay & wiper. Did I overlooked something?
Prior to wiper issue, I became interested in upgrading my ICU to 6G to add functionality. "Identifying ICU" & your "'97 Civic Wiper/Washer fluid sprays.." prompted me to pick up an ICU from a '97 Civic. I pulled the ICU & 10P connector. The threads reference part number 38600-SO1-A11. The ICU I pulled had #38600-SO1-A1 . Is the A11 a typo?
Thanks for advice.
Wiper problem seemed to coincide w/a diy Fragmare had posted which detailed the installation of one wire horns using the existing relay. The diy worked. Perhaps it was a coincidence but, the next time I attempted to use the wipers I discovered that they wouldn't run on low, high, or mist & would only wipe once in interm. I had looked at wiring diagrams before doing the diy. There doesn't seem to be a connection between the diy 2 black wires going into the horn relay & wiper. Did I overlooked something?
Prior to wiper issue, I became interested in upgrading my ICU to 6G to add functionality. "Identifying ICU" & your "'97 Civic Wiper/Washer fluid sprays.." prompted me to pick up an ICU from a '97 Civic. I pulled the ICU & 10P connector. The threads reference part number 38600-SO1-A11. The ICU I pulled had #38600-SO1-A1 . Is the A11 a typo?
Thanks for advice.
#7
Re: 93 Civic DX wiper malfunctioning
Brilliant! Thanks Ron!

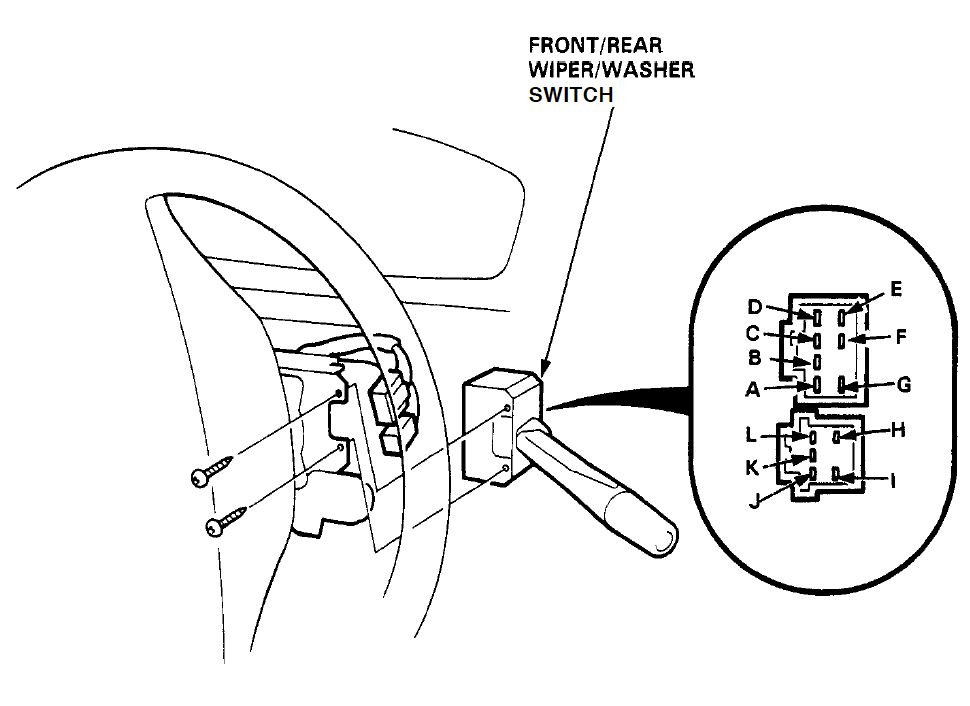

Oddly, it appears that there's no continuity between ground (A position in wire harness) & body. I don't have a rear wiper but I noticed the harness has is plugged & has a similar 6P connector that plugs into a blank on my wiper switch. I tested that ground wire & there's continuity! Very strange. I think I'm going to depin the various wires & switch them rather than attempt to figure out where I lost continuity to ground. Please advise if you agree or insight into how this might have occurred.
Oddly, it appears that there's no continuity between ground (A position in wire harness) & body. I don't have a rear wiper but I noticed the harness has is plugged & has a similar 6P connector that plugs into a blank on my wiper switch. I tested that ground wire & there's continuity! Very strange. I think I'm going to depin the various wires & switch them rather than attempt to figure out where I lost continuity to ground. Please advise if you agree or insight into how this might have occurred.
