[FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spec - Honda-Tech - Honda Forum Discussion


Honda Civic / Del Sol (1992 - 2000) EG/EH/EJ/EK/EM1 Discussion

[FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spec

Reply



Thread Tools Search this Thread
Old 05-31-2009, 01:52 AM   #1
Oh look, I can change this
Thread Starter
iTrader: (8)

deschlong's Avatar

Join Date: Nov 2008
Location: Above you
Posts: 5,518
Icon6 [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spec

Foglights are wired to function differently on the 92-95 5th Generation Civic in Japan vs. here in North America. This guide will explain how JDM Foglights are wired and how to convert a JDM OEM Foglight Harness to comply with OEM CDM/USDM specifications and legal requirements for vehicle conspicuity.

Also, often the aftermarket wiring of foglights is not acceptable for compliance with North American vehicle conspicuity laws, either. I purchased an OEM JDM Foglight wiring harness and modified it as described in this write-up to comply with North American regulations and to have OEM functionality.

The first image - OEM JDM Foglight wiring in 5th Gen Civic:


The second image: How to convert your OEM JDM Foglight Harness to function in North America and comply with vehicle conspicuity laws.



Pin locations on a USDM (not CDM) combination light switch connector, at the steering column light switch. (CDM will have an additional RED wire at PIN G for the Daytime Running Lights.) The RED/WHT wire I reference in the second image above can be seen in this pic at PIN F. (Ignore the BLK wire that comes from PIN H.)
(Image modified from user 'dnt94civic', from their JDM steering wheel/horn DIY)

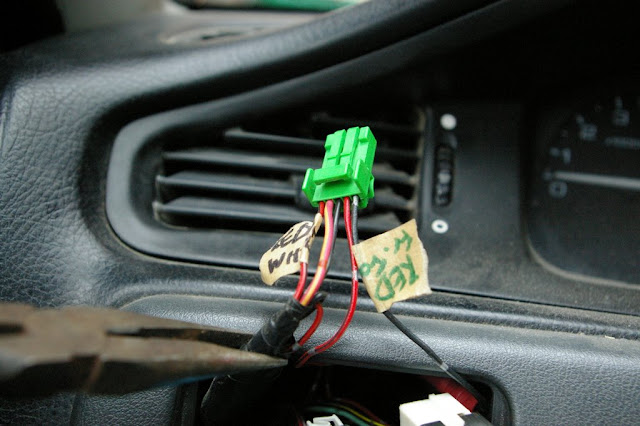

Your wiring at the connector for the dash switch will look something like this. Note the RED/BLK for PIN 4 and BLK for PIN 5 from the original JDM harness are covered and taped down where they exit the harness (bottom of pic). I added the RED/BLK and RED (well, actually a BLK, but you get the point) and connected these to my dash harness. I labelled the wires with masking tape as the correct colour they are supposed to be.

Fuse Box Connections

I make reference to the connector numbers (eg., C917) in the write up above. This is referencing the connector numbers as described in the CDM/USDM Helms manual, typically at the under-dash fuse box. I guess this can seem pretty obscure to those of you unfamiliar with this nomenclature. I've reproduced the page below as a quick reference to give you an idea of what I'm talking about. (Click it to enlarge.)

** NOTE that C917 requires either a 7.5A fuse in slot 16 or a 10A fuse in slot 17 to work.**



Last edited by deschlong; 11-02-2014 at 03:07 AM. Reason: Corrected some spelling, improved the diagrams, added photo of connector (Aug/09). Diagram mod (Mar/12). Fuse info (Nov/14)
deschlong is offline   Reply With Quote
Old 05-31-2009, 05:07 PM   #2
Honda-Tech Member
iTrader: (1)

EJ2-Fluffy's Avatar

Join Date: Nov 2002
Location: Firefox4life, So CA
Posts: 7,703
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

Awesome help mang. Thanks again!
EJ2-Fluffy is offline   Reply With Quote
Old 08-18-2009, 07:54 AM   #3
B*a*n*n*e*d

_MARS_'s Avatar

Join Date: Jan 2009
Location: USA
Posts: 627
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

This also is very good info and nicely laid out. Wish there was more info on how to install the fogs with your attention to detail instruction.
_MARS_ is offline   Reply With Quote
Old 08-18-2009, 10:07 AM   #4
Honda-Tech Member

Arthas's Avatar

Join Date: Aug 2007
Location: Pomona, CA
Posts: 6,501
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

What difference does this make?
Arthas is offline   Reply With Quote
Old 08-18-2009, 10:15 AM   #5
Honda-Tech Member

eklum's Avatar

Join Date: Aug 2005
Location: you.es.aye.
Posts: 1,815
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

yea i wasnt aware jdm fogs were illegal due to wiring or illegal for that matter.
eklum is offline   Reply With Quote
Old 08-18-2009, 10:37 AM   #6
Honda-Tech Member

fungus mungus's Avatar

Join Date: Mar 2009
Location: The Golden State
Posts: 1,694
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

Thanks for adding another useful DIY! I ran into the discovery that the JDM harness is different than the USDM harness about 6 months ago. If this had been posted back then, I probably would have made the mods to comply with US regulations.

But I didn't and I'm not going to yank out the harness now to fix it. As long as I don't run my fogs w/o my headlights (I never do), I should be fine.

fm
fungus mungus is offline   Reply With Quote
Old 08-18-2009, 10:41 AM   #7
Honda-Tech Member
iTrader: (1)

EJ2-Fluffy's Avatar

Join Date: Nov 2002
Location: Firefox4life, So CA
Posts: 7,703
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

Quote:
Originally Posted by Arthas View Post
What difference does this make?
Foglights in Japan can be turned on regardless of the orientation of the headlight (High Beams on, or low beams on).

In the US, it is road laws that make this illegal. Fogs can only be on when Low beams are on and must be off when High beams are on.

This very informative post was created to convert the JDM foglight harness to meet US regulations.
EJ2-Fluffy is offline   Reply With Quote
Old 08-18-2009, 10:43 AM   #8
Oh look, I can change this
Thread Starter
iTrader: (8)

deschlong's Avatar

Join Date: Nov 2008
Location: Above you
Posts: 5,518
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

Quote:
Originally Posted by Arthas View Post
What difference does this make?
Consult the diagrams where I have described this in the text.

Quote:
Originally Posted by eklum View Post
yea i wasnt aware jdm fogs were illegal due to wiring or illegal for that matter.
In many jurisdictions this is true. Consult your own state/provincial laws to check. One jurisdiction that I know of where you can run your fog lights independently of your headlamps is in British Columbia, but only in inclement weather when it is necessary.
deschlong is offline   Reply With Quote
Old 08-20-2009, 08:50 AM   #9
Oh look, I can change this
Thread Starter
iTrader: (8)

deschlong's Avatar

Join Date: Nov 2008
Location: Above you
Posts: 5,518
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

Bump for update with a photo of the connector.

Quote:
Originally Posted by fungus mungus View Post
Thanks for adding another useful DIY! I ran into the discovery that the JDM harness is different than the USDM harness about 6 months ago. If this had been posted back then, I probably would have made the mods to comply with US regulations.

But I didn't and I'm not going to yank out the harness now to fix it. As long as I don't run my fogs w/o my headlights (I never do), I should be fine.

fm
FM: I'd argue that you don't have to yank out the harness to fix it. You can do these mods while it's still in the car. The items you'll need are a couple blue 14-16ga wire T-taps, a thin piece of sheet metal OR a yellow wire T-taps, and the RED/BLK & RED leads from a rear defogger switch.

Reroute the WHT wire to the steering column from the fuse box, it'll reach. The fuse box RED/BLK is no longer used. Use my sheet metal trick or a yellow wire T-taps to connect it to RED/WHT. De-pin the 1-pin connector, if you need to, using a very small flat-end screwdriver. Pull out on the white plastic retainer part first though.

Crawl under the dash and insert a blue wire T-taps between the harness' WHT AFTER it passes the in-line fuse (now a 16ga wire) and RED/BLK. On the wire T-taps you'll have to poke out one hole so the wires can pass parallel through (b/c usually you just insert an end of a wire in here and it is blocked at one end ... you'll see what I mean when you look at the T-taps.).

At the dash switch, remove the PIN 4 & 5 RED/BLK and BLK. To do this, lift up the clip, then insert the smallest hex key you've got into the square hole at the front -- then just pull on the wire, and out it comes. Real easy once you get good at it. Tape these down and make sure they don't touch. Replace with the rear defog switch leads and use wire T-Taps to attach to existing RED/BLK and RED wiring.

I'd estimate that this would take you about 2 hours from start to finish.
deschlong is offline   Reply With Quote
Old 09-02-2009, 06:44 AM   #10
Honda-Tech Member

Join Date: Sep 2009
Posts: 44
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

Quote:
Originally Posted by DeSchlong View Post
Foglights are wired to function differently on the 92-95 5th Generation Civic in Japan vs. here in North America. This guide will explain how JDM Foglights are wired and how to convert a JDM OEM Foglight Harness to comply with OEM CDM/USDM specifications and legal requirements for vehicle conspicuity.

[/LEFT]
first thanks for sharing this, i have made my own wiring harness as i could not find any OEM for sale here in Canada. i have gathered the RC-2201 relay from the car you have specified and made the wiring to the JDM spec fog light harness as i like the fog lights to be independent of the headlights.

however the fog light switch i have is from a USDM car and after putting everything together it does not work i don't know if its because of the switch. do you know i can resolve this issue??

also the relay i have comes with a metal bracket on which i have bolted on under the steering column but i don't think that makes any different.
riverismine is offline   Reply With Quote
Old 09-02-2009, 05:45 PM   #11
Honda-Tech Member

Join Date: Sep 2009
Posts: 44
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

I figured what my issue was, OP had mentioned C917 and C918 on the fuse panel, when i looked at the diagram for under dash fuse box from the usdm service manual C917 is the middle one slot1 (Option (IG2) and C918 slot2 is the second one from the right side.

i hooked up the 12" wht wire based on your diagram to the far left one which is C915 Option Bat.

if you look close enough on the fuse panel the they are marked as this
[5] [4] [1] [2] [3]
as your diagram mentioned its option 2 and 5. i don't know if the OP would like to change the reference to C917 to correct one which is C915.

here is a the correct C# from the service manual
slot 5= C915 Option BAT
slot 4= C916 Option BAT
slot 1= C917 Option IG2
slot 2= C918 Option No. 19 fuse
slot 3= C919 Option ACC

for my install instead of using Slot2 C918 i used slot3 C919 this way since my car does not have DRL when i turn the ignition ON with the fog light switch in ON mode they come on automatically.
riverismine is offline   Reply With Quote
Old 09-02-2009, 07:27 PM   #12
Oh look, I can change this
Thread Starter
iTrader: (8)

deschlong's Avatar

Join Date: Nov 2008
Location: Above you
Posts: 5,518
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

Thanks for catching that. Will fix. Though, I guess the way I had it means your fogs would work only when in IG2 (ie., only turn on if key is in IG2, and are off when ignition is off).

So, you've wired them to run as DRLs ... seems like a good idea. No DRLs, but you're in Canada? Interesting. New JDM import? USDM car? Post pix!
deschlong is offline   Reply With Quote
Old 09-02-2009, 08:09 PM   #13
Honda-Tech Member

Join Date: Sep 2009
Posts: 44
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

^^C917 or IG2 didnt work for me...

its a RHD JDM import a real eg6 SiR... thanks for your post, cause this gave me the parts to get from scrap yard to make my own OEM fog light harness.

i will post pics later, i only have them at my work computer....
riverismine is offline   Reply With Quote
Old 12-31-2009, 12:36 PM   #14
Honda-Tech Member
iTrader: (1)

tsylican's Avatar

Join Date: May 2008
Location: Socal, USA
Posts: 674
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

so is the JDM switch and harness plug and play with a USDM car from the get go?
tsylican is offline   Reply With Quote
Old 12-31-2009, 01:24 PM   #15
Oh look, I can change this
Thread Starter
iTrader: (8)

deschlong's Avatar

Join Date: Nov 2008
Location: Above you
Posts: 5,518
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

^^ Yep, it will work, but it won't be legal in most US and Canadian jurisdictions.
deschlong is offline   Reply With Quote
Old 12-31-2009, 02:13 PM   #16
Honda-Tech Member
iTrader: (1)

tsylican's Avatar

Join Date: May 2008
Location: Socal, USA
Posts: 674
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

So if its plug and play where do the C918 and C917 connectors plug into?
tsylican is offline   Reply With Quote
Old 12-31-2009, 04:40 PM   #17
Oh look, I can change this
Thread Starter
iTrader: (8)

deschlong's Avatar

Join Date: Nov 2008
Location: Above you
Posts: 5,518
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

^^ Post 11 explains where they are.
deschlong is offline   Reply With Quote
Old 01-26-2010, 05:39 PM   #18
Honda-Tech Member

Join Date: Jan 2010
Posts: 138
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

my fog lights run anytime when the cars off or not lights or not just push the button. now i cant figure out why they wont turn on now, can the fog switch be bad it self i checked all wires and fuse and relays. help pls
bobbyeg6 is offline   Reply With Quote
Old 10-07-2010, 01:36 PM   #19
Honda-Tech Member

latino911's Avatar

Join Date: Aug 2007
Posts: 57
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

on a 92-95 japense fog light wiring its....?

1. Switch Harness - (blue/red) cable female connector(brown) to -------
2. Male connector(brown) and Male connector(brown) on both ends to ------
3. Fog light harness female connector(brown)/ (blue/red) wire with a grown wire


Now #2. wire basically connects both switch harness and fog light harness together. Runs through engine bay into cabin????
correct?????????????

Last edited by latino911; 10-07-2010 at 03:09 PM.
latino911 is offline   Reply With Quote
Old 10-07-2010, 07:04 PM   #20
Oh look, I can change this
Thread Starter
iTrader: (8)

deschlong's Avatar

Join Date: Nov 2008
Location: Above you
Posts: 5,518
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

That's a little hard to follow, but here's a quick summary of what I think you're getting at:

1. The JDM Fog Harness ENDS with a Female connector on BLU/RED
2. I discovered that a USDM/CDM Fog Light wire BLU/RED that runs from the cabin on the d/s, through to the headlight area near the washer bottle, STARTS with a Female connector. ( Note only 94-95 Civics were pre-wired for fogs.)
3. Therefore, I needed to clip and swap the JDM Fog Harness' Female connector to a Male end (which I had - you can see it in the pic). The wire also needs to be extended a bit.
4. BLU/RED ends near the washer bottle with a small bullet connector.

EDIT: Found a pic of the USDM/CDM fog light switch harness setup (credit: user 'riverismine'):

Last edited by deschlong; 10-08-2010 at 08:29 AM.
deschlong is offline   Reply With Quote
Old 10-07-2010, 09:23 PM   #21
Honda-Tech Member

latino911's Avatar

Join Date: Aug 2007
Posts: 57
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

Exactly,

mine is a 93 honda civic hatchback dx
i probably dont have pre wired
ill have to make one.
To connect Switch harness to Fog light Harness.
Because it will not reach without a Male to Male connector.
Im going to keep it OEM JDM.
ill post pix. later. of OEM JDM SWITCH AND FOG LIGHT HARNESS.
latino911 is offline   Reply With Quote
Old 10-07-2010, 09:29 PM   #22
Oh look, I can change this
Thread Starter
iTrader: (8)

deschlong's Avatar

Join Date: Nov 2008
Location: Above you
Posts: 5,518
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

I wrote up this DIY to show people how easy it is to convert the JDM harness to a USDM-spec one. I really suggest you give it a try! I prefer the way it operates like that (off automatically with high beams on), not to mention it also complies with local laws.

Last edited by deschlong; 10-07-2010 at 09:45 PM.
deschlong is offline   Reply With Quote
Old 10-08-2010, 06:39 AM   #23
Honda-Tech Member

Join Date: Sep 2009
Posts: 44
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

i have a complete wiring set and switch for sale if interested... this is for the USDM models the picture posted 3 threads up is the one for sale by me on the for sale section....
riverismine is offline   Reply With Quote
Old 01-21-2011, 08:00 PM   #24
Honda-Tech Member

XYRS2LT's Avatar

Join Date: Nov 2007
Location: Plymouth, California, USA
Posts: 72
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

Now all I have to do is find the JDM harnesses.
XYRS2LT is offline   Reply With Quote
Old 01-30-2011, 06:16 PM   #25
Honda-Tech Member

JDMRPM's Avatar

Join Date: Feb 2004
Location: somewhere in the tristate
Posts: 120
Default Re: [FAQ] DIY: Convert JDM OEM 92-95 Civic Foglight Harness to OEM CDM/USDM Legal Spe

my point of confusion is what on EARTH is the point of buying jdm fogs/harness if your gonna convert it to usdm spec???

waste of time, shouldve just gotten an oem harness

but props to the OP for doing a thorough diy
JDMRPM is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
[DIY] Interior Cabin Air (A/C) Filter retrofit for 5G 92-95 / delSol / 6G 96-00 Civic deschlong Honda Civic / Del Sol (1992 - 2000) 137 04-18-2016 03:44 PM
[DIY] Honda Civic 92-95 EDM Heated Seats DIY Retrofit Install Guide deschlong Honda Civic / Del Sol (1992 - 2000) 60 01-12-2016 01:23 AM
The DEFINITIVE 92-95 Civic Power Folding HEATED Mirrors / Locks / Windows DIY Guide deschlong Honda Civic / Del Sol (1992 - 2000) 102 11-15-2015 04:08 AM
[DIY] Honda Civic 92-95 "OEM" Rear Fog Lamp Retrofit Install Guide deschlong Honda Civic / Del Sol (1992 - 2000) 47 09-08-2015 07:07 PM
[DIY] Honda Civic 92-95 JDM "Door Open" Gauge Cluster Indicator Light Install deschlong Honda Civic / Del Sol (1992 - 2000) 65 08-23-2014 09:49 PM


Tags
9295, civic, diy, fog, harness, honda, independently, install, instruction, jdm, light, lights, prelude, run, wiring

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -8. The time now is 11:15 AM.



  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
