Old 11-30-2013, 03:11 PM
  #76
Honda-Tech Member

BiggieBert's Avatar

Join Date: Jun 2006
Location: LOST, FL
Posts: 695
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

Originally Posted by jeremyhughes View Post
I am assuming you corrected the mix up and it is working perfectly now?
yes, my wiring was fine. The actual wiper switch broke internally, swapped it out and all good.
BiggieBert is offline
Old 09-26-2014, 04:08 PM
  #77
Honda-Tech Member

Join Date: Oct 2009
Posts: 3
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

This seems like a lot of work you could just swap a 96-00 icu for the 92-95 and have intermittent wiper and headlight on
foamham is offline
Old 09-26-2014, 05:35 PM
  #78
Oh look, I can change this
Thread Starter
iTrader: (8)

deschlong's Avatar

Join Date: Nov 2008
Location: Above you
Posts: 5,705
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

Originally Posted by foamham View Post
This seems like a lot of work you could just swap a 96-00 icu for the 92-95 and have intermittent wiper and headlight on
This is true, however I created this DIY before anyone knew you could swap in the 6G Civic one. FYI you can also swap in a 98-01 CR-V one to add the above functions plus intermittent *rear* wiper functionality, with some add'l wiring.

However, I still like the sound of the Teg chime over anything else.
deschlong is offline
Old 09-27-2014, 02:41 PM
  #79
Honda-Tech Member

Join Date: Oct 2009
Posts: 3
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

Originally Posted by deschlong View Post
This is true, however I created this DIY before anyone knew you could swap in the 6G Civic one. FYI you can also swap in a 98-01 CR-V one to add the above functions plus intermittent *rear* wiper functionality, with some add'l wiring.

However, I still like the sound of the Teg chime over anything else.
thanks for the info
foamham is offline
Old 09-30-2014, 07:50 AM
  #80
Honda-Tech Member

Join Date: Oct 2012
Posts: 100
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

Originally Posted by deschlong View Post
This is true, however I created this DIY before anyone knew you could swap in the 6G Civic one. FYI you can also swap in a 98-01 CR-V one to add the above functions plus intermittent *rear* wiper functionality, with some add'l wiring.

However, I still like the sound of the Teg chime over anything else.

We all love you Mr. deschlong, I joined this forum just because of you and I am happy as we have got such a talented person like you, who work painstakingly to create and write such informative DIYs.

It is worth mentioning here that the 92-95 JDM civic comes factory equipped (may be not all the variants) with the:
1. lights on beep (continuous beep, teeeeeee....)
2. seat belt reminder (recurring beep for around 10 seconds, tee tee tee)
3. key on reminder (recurring beep, tee tee tee)

Let me add further that I have changed the complete wiring harness of my car with the JDM and have also changed the interlock unit with the ek civic (remember the eg civic interlock unit is exactly same like the ek but it lacks the chime)
The 96-00 JDM civic has got a chime inside the interlock unit, when the reverse gear is engaged it sounds like kring ting, kring ting.....

Though my car is manual and the interlock unit may not of much use but I have wired the reverse gear switch with the interlock unit and it is working flawlessly and I can hear the unique dual tone beeper i.e., kring tring .......

Last edited by shabbir.1; 10-01-2014 at 05:44 AM.
shabbir.1 is offline
Old 09-30-2014, 09:30 AM
  #81
Honda-Tech Member

baller status's Avatar

Join Date: Nov 2007
Location: Western Hemisphere
Posts: 655
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

I cut the wire for the seat belt chime on the back of the ICU, wire the ICU side to a relay to switch polarity, then tap into the parking light option output on the under dash fuse box. Kill two birds with one stone. Takes ten minutes and doesn't cost anything if you have auto relays lying around everywhere like I do.

I appreciate the OP's method and his other DIY's, however.
baller status is offline
Old 01-19-2015, 01:08 PM
  #82
#1 Super Guy
iTrader: (2)

94eg!'s Avatar

Join Date: Sep 2004
Location: Las Vegas, NV, USA
Posts: 8,393
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

Used this writeup today and it worked great. Managed to find ALL the individual pieces on e-bay for about $32 shipped total.

BTW: BLU/WHT wires can be identified by their paint dots.
- BLU/WHT-2 has silver dots of paint on it
- BLU/WHT-1 has brown dots

Also, you can sometimes find the integra chime at a better price on ebay by looking for "integra relay". Most ebay wreckers don't even know what this part is so they label it incorrectly.
94eg! is offline
Old 04-30-2015, 12:17 AM
  #83
Honda-Tech Member

Join Date: Dec 2014
Location: Lithuania
Posts: 5
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

hi, l have a question about the sound sending unit, l live in europe and l have this system, but l want to do the usdm sead belt reminder warning, so my question is: is the sound sending unit the same? or do l need one from an usdm civic? l have just the belt with the plug also l need the bulb for the taho what else do l need? l wonder if it will work with the "lights on" warning sound sending unit:/ sorry mabye its not the wight topic to ask but maybe someone did this stuff before:/
chukas is offline
Old 04-30-2015, 11:28 AM
  #84
Honda-Tech Member

tony_2018's Avatar

Join Date: Nov 2005
Location: Austin, Tx
Posts: 11,223
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

Mad probs to the OP as always for going beyond and above.
tony_2018 is offline
Old 04-05-2018, 02:29 PM
  #85
Trial User

Join Date: Apr 2018
Posts: 1
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

Iíve been reading this one single topic for a while and I have a 99 Civic LX and Iíve been trying to figure out how to translate this over to my car, as I want the classic Japanese plink plonk noise in my car, do you have any suggestions or tips? I have some pics I can show you of the progress Iíve mde but I havenít gotten under the car and started cutting stuff up just because I really wanna make sure itís gonna work before I go in and do it.
AverageJoe777 is offline
Old 08-21-2018, 12:56 AM
  #86
Oh look, I can change this
Thread Starter
iTrader: (8)

deschlong's Avatar

Join Date: Nov 2008
Location: Above you
Posts: 5,705
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

Originally Posted by AverageJoe777 View Post
Iíve been reading this one single topic for a while and I have a 99 Civic LX and Iíve been trying to figure out how to translate this over to my car, as I want the classic Japanese plink plonk noise in my car, do you have any suggestions or tips? I have some pics I can show you of the progress Iíve mde but I havenít gotten under the car and started cutting stuff up just because I really wanna make sure itís gonna work before I go in and do it.
You would retrofit the Integra ICU + chime for your current ICU. This will give the plink plonk for headlight on sound.
deschlong is offline
Old 08-21-2018, 08:17 AM
  #87
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 1,677
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

Originally Posted by deschlong View Post
You would retrofit the Integra ICU + chime for your current ICU. This will give the plink plonk for headlight on sound.
I love me that plink-plonk noise!
94 Civic Si is offline
Old 08-21-2018, 10:18 AM
  #88
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 1,677
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

Originally Posted by tlarimer View Post
Here's a couple pics for the CDM ICU function. Pictures are specific to pin 4 Black/green stripe. I lengthened the black/green wire with black wire using solder and heat shrink. Then ran it back to the 20 pin brown connector and with deschlong's help located the body Black/green wire in pin 19 and used a tap to connect the wire from pin 4 to the body harness.
What is the CDM function?
94 Civic Si is offline
Old 09-19-2018, 01:19 PM
  #89
Oh look, I can change this
Thread Starter
iTrader: (8)

deschlong's Avatar

Join Date: Nov 2008
Location: Above you
Posts: 5,705
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

Originally Posted by 94 Civic Si View Post
What is the CDM function?
I mention this in the original post:

Originally Posted by deschlong View Post

<snip>
  • Grab the ICU from behind the fuse box (note that the fuse box is the same as our Civic's). See Figures 1 and 2. Get the pigtail for the ICU, too (very important!). (FYI: The ICU is the box that's attached to the back of the fuse box - it's a little bigger than the size of a deck of cards.)
    • Part numbers are DIFFERENT in Canada vs. United States. USDM is 38600-ST7-A01, CDM is 38600-ST7-C01. The way the wiper/washers work is different, so be sure to get one from the vehicle's native country...UNLESS, you are in the US and want to VASTLY IMPROVE the way your Civic wipers function, by adding a combined wiper/washer function .... get one from a Canadian car. This additional feature requires the addition of tapping into ONE wire -- see tlarimer's post later in this thread for more info.

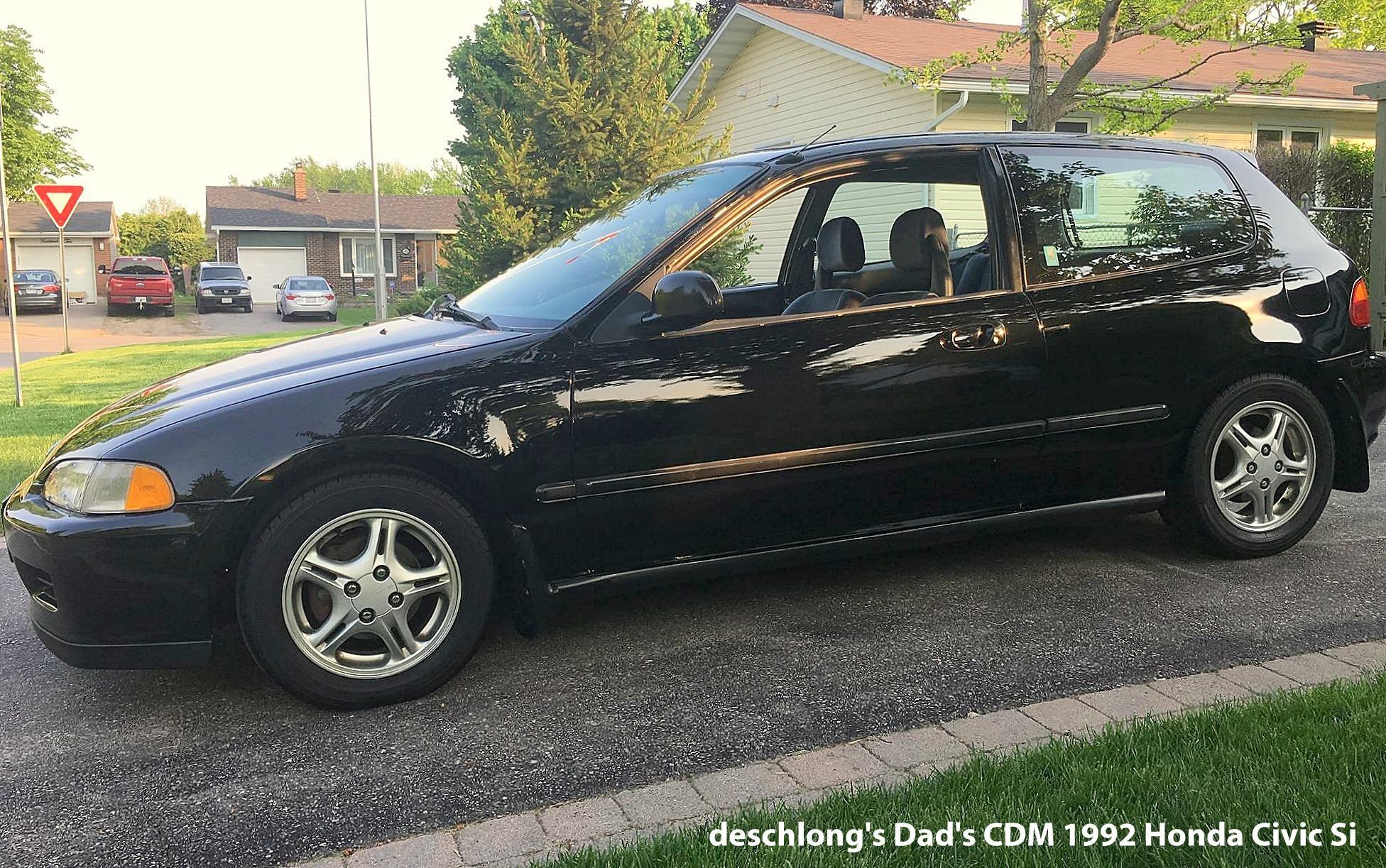

Did this retrofit today on my Dad's '92 Civic Si, partly to deal with this problem with slow INT wiper setting, partly to finally add a lights-on chime:

Originally Posted by deschlong View Post
^ You would not even begin to understand how helpful that post was. A problem that has been ******* my father on his 92 Si for YEARS. I told him to try swapping out the ICU but this pretty much confirms it. We both had a problem where the INT setting would not work until the car is warmed up. Only happens in winter. This will be my first winter with the Integra ICU retrofit, so we'll see if it's any different. My issue was never as bad as his (mine only happened in very cold conditions ... -20C or lower).
Can't believe it's been 8 years since we first found a solution to this problem and I didn't do this ICU swap for him until now!

Note that the '97 Integra that I removed the parts from was already partially gutted, including the dash harness. But they kindly left the fuse box and chime littered around and in neighbouring cars. But, alas no ICU connector + pigtail. Thankfully I have done research beforehand and knew that a pigtail for the Integra ICU could be removed from a 98-01 CRV (NOT '97), which were plentiful in the yard. Keep this info in mind if you're hittin' the yard, DIYers!
deschlong is offline
Old 09-19-2018, 04:43 PM
  #90
Resident Gearhead
iTrader: (1)

BryanM.'s Avatar

Join Date: Aug 2007
Location: Midcoast Maine, USA
Posts: 5,599
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

Originally Posted by deschlong View Post
Did this retrofit today on my Dad's '92 Civic Si, partly to deal with this problem with slow INT wiper setting, partly to finally add a lights-on chime
Do they not use road salt in your area? An EH that old around here is a rarity. Those things have nearly disappeared in the last 5 years.
BryanM. is offline
Old 09-19-2018, 06:08 PM
  #91
Oh look, I can change this
Thread Starter
iTrader: (8)

deschlong's Avatar

Join Date: Nov 2008
Location: Above you
Posts: 5,705
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

Originally Posted by BryanM. View Post
Do they not use road salt in your area? An EH that old around here is a rarity. Those things have nearly disappeared in the last 5 years.
The thing is a fkn gem. Dad's the second owner, only 160K Kms/100K mi, garage kept, not winter driven, paint gleems like new. Dad regularly has people approach him enquiring about it, either to buy or just in awe. Upgrades are mainly ones we've done together, so it's got power windows and locks, rear speakers, rear intermittent wiper, low fuel light, that type of thing. OEM ones. Found him nice OEM wheels. Front OEM lip. NZDM rear mudflaps. **** like that. I'll see about a pic.


Last edited by deschlong; 09-19-2018 at 07:18 PM.
deschlong is offline
Old 09-20-2018, 04:19 PM
  #92
Honda-Tech Member

BiggieBert's Avatar

Join Date: Jun 2006
Location: LOST, FL
Posts: 695
Default Re: [DIY] OEM 92-95 Honda Civic Lights-On Chime Retrofit (no RadioShack crap here, fo

wow, that thing is so clean! What a score.
