Default DIY: Replace Climate / Heater Control Bulbs (oddmut)

Replacing Heater / Climate Control Bulbs, How to Fix

Hereís what it looks like when your bulbs are blown (left 2 bulbs) and cause your climate control (Honda calls it heater control) to not light up.

Name:  DSC00967.jpg
Views: 590
Size:  49.2 KB

Tools needed:
8mm socket
Flat Head
Philips Head

Parts needed:
Bulb, Neo-Wedge (A); Part number: 79609-S5A-003

First things first, if you have the stock radio make sure you have the anti-theft code for the radio, the write down the frequencies for the preset buttons.

Pop the sides off of the piece loose in the image. (Between the cups and the panel for the shifter boot there are two screws underneath that hold the pieces together. You'll have to pop up the panel first. Mine isn't screwed in so it's easy to remove.) They pull away from the console to remove. Once the sides are loose pull the piece away from the radio towards the shifter. Do not pull to much because there are wires connected to switches or electrical appliances that are connected to it.
Name:  DSC00969.jpg
Views: 379
Size:  63.4 KB

Once the piece above is removed there is a middle screw on a metal plate. Only 1 screw. Remove that with the 8mm socket or a Philips head.
Name:  DSC00960.jpg
Views: 372
Size:  103.3 KB

After removal of the screw, use your Philips head to pop up the entire stereo face. Pull it out a little bit to notice the wires behind it.
Name:  DSC00961.jpg
Views: 373
Size:  77.7 KB

With the wires visible youíll be able to see the plugs. Go ahead and disconnect those.
Name:  DSC00962.jpg
Views: 396
Size:  73.7 KB

This image shows the plug for your climate/heater control. Unplug that.
Name:  DSC00963.jpg
Views: 377
Size:  60.6 KB

Once that is unplugged pull the whole piece out. This part is now not necessary but it will make it a little easier to put the new bulbs in without having to fumble with a big unit.There will be two screws on the sides of the heater control. Unscrew them and pull the heater control out.
Name:  DSC00965.jpg
Views: 377
Size:  76.2 KB

You will see two white back sides of the bulbs. Use a flat head and turn it left 90 Degrees. It will unlock it and remove it. Put the new bulbs in and turn in right 90 degrees. It will lock in.
Name:  DSC00966.jpg
Views: 402
Size:  49.9 KB

I plugged the plug for the heater control in and tested it. Hereís the results! It works!
Name:  DSC00968.jpg
Views: 368
Size:  12.3 KB

Put everything back together. If stock radio put back the anti-theft code in and set back the radio station presets.

Set your clock and any other setting which you had.

Again I did this with my phone as my flash light and my camera beside me and the little if none at all light in the apartment garage.

Heater control lights up again.


Modified by oddmut at 8:40 AM 1/30/2008
oddmut is offline   Reply With Quote
Old 01-17-2008, 09:19 AM   #2
Honda-Tech Member

Jstans84's Avatar

Join Date: Mar 2007
Location: Douglasville, Georgia, United States
Posts: 560
Default Re: DIY: Replace Climate / Heater Control Bulbs (oddmut)

Nice DIY
Jstans84 is offline   Reply With Quote
Old 01-17-2008, 10:44 AM   #3
Honda-Tech Member
iTrader: (1)

daddy's Avatar

Join Date: May 2007
Location: you wish you knew....., United States
Posts: 2,076
Default Re: DIY: Replace Climate / Heater Control Bulbs (Jstans84)

again good pix.

do you have a jvc dvd player? it kinda looks like it from the back
daddy is offline   Reply With Quote
Old 01-17-2008, 10:52 AM   #4
Member
Thread Starter

oddmut's Avatar

Join Date: Oct 2005
Location: Los Angeles, CA, USA
Posts: 1,114
Default Re: DIY: Replace Climate / Heater Control Bulbs (daddy2be)

i have a panasonic stereo. nothing crazy . it shows in one of the pics lol. i had frys install it for me since it was free labor. look at the screws they use. cheap ****** punchers!!! bargh!!! and i didn't get my stock screws back for my stock stereo bargh!!!
oddmut is offline   Reply With Quote
Old 01-17-2008, 10:55 AM   #5
Honda-Tech Member
iTrader: (1)

daddy's Avatar

Join Date: May 2007
Location: you wish you knew....., United States
Posts: 2,076
Default Re: DIY: Replace Climate / Heater Control Bulbs (oddmut)

oh ya i see that now. i just noticed it appears to have s video outputs on it but now that i look carefully those are just auxiliary inputs
daddy is offline   Reply With Quote
Old 01-17-2008, 10:58 AM   #6
Member
Thread Starter

oddmut's Avatar

Join Date: Oct 2005
Location: Los Angeles, CA, USA
Posts: 1,114
Default Re: DIY: Replace Climate / Heater Control Bulbs (daddy2be)

since u can see my head unit how do i attach an ipod to that? they have an aux wire that you can attach. it's a single plug from the ipod to the head unit. any tips or shall i plug play and see if nothing goes wrong? lol.
oddmut is offline   Reply With Quote
Old 01-17-2008, 11:01 AM   #7
Honda-Tech Member
iTrader: (1)

daddy's Avatar

Join Date: May 2007
Location: you wish you knew....., United States
Posts: 2,076
Default Re: DIY: Replace Climate / Heater Control Bulbs (oddmut)

i dont know much about ipod interfacing but i know its been discussed in the audio/video section
daddy is offline   Reply With Quote
Old 01-17-2008, 11:06 AM   #8
Member
Thread Starter

oddmut's Avatar

Join Date: Oct 2005
Location: Los Angeles, CA, USA
Posts: 1,114
Default Re: DIY: Replace Climate / Heater Control Bulbs (daddy2be)

alright. i'm going over there with my picture to see what they say.
oddmut is offline   Reply With Quote
Old 01-29-2008, 07:07 PM   #9

dangeross's Avatar

Join Date: Jun 2007
Location: Nashville, Tn, 37206
Posts: 12
Default Re: DIY: Replace Climate / Heater Control Bulbs (oddmut)

This thread is great, it helped me tons but I had a quick question or two. I have the cruchfield guide and it shows that i have to remove my shift ****, i drive a manual, is that necessary? To clarify as well i just need to separate the sides of the console in the middle and then pull the bottom half and the rest of the directions are just self explanatory?
dangeross is offline   Reply With Quote
Old 01-30-2008, 07:39 AM   #10
Member
Thread Starter

oddmut's Avatar

Join Date: Oct 2005
Location: Los Angeles, CA, USA
Posts: 1,114
Default Re: DIY: Replace Climate / Heater Control Bulbs (dangeross)

Quote:
Originally Posted by dangeross
This thread is great, it helped me tons but I had a quick question or two. I have the cruchfield guide and it shows that i have to remove my shift ****, i drive a manual, is that necessary? To clarify as well i just need to separate the sides of the console in the middle and then pull the bottom half and the rest of the directions are just self explanatory?
For me it wasn't necessary but there are actually two screws that are underneath the black panel that is connected to the leather. Those two screws actually attach to the side pieces. More on the location of the two screws it's between the cup holder and the black panel for the leather boot. mine wasn't so screwed in so it was an easy pop out.
oddmut is offline   Reply With Quote
Old 01-30-2008, 02:42 PM   #11
Honda-Tech Member

pr0j3xt01v1c's Avatar

Join Date: Mar 2007
Location: other side of the water from seattle
Posts: 123
Default

do you change the bulbs the same way for the dials that control the temperature and air flow (rotating them 90 degress) or you can't because they are different bulbs? and how do you get to changing the bulbs in the switches (cruise, mirrors, sun/moon roof)?




Modified by pr0j3xt01v1c at 4:13 PM 1/30/2008
pr0j3xt01v1c is offline   Reply With Quote
Old 01-30-2008, 06:33 PM   #12
Member
Thread Starter

oddmut's Avatar

Join Date: Oct 2005
Location: Los Angeles, CA, USA
Posts: 1,114
Default Re: (pr0j3xt01v1c)

Quote:
Originally Posted by pr0j3xt01v1c
do you change the bulbs the same way for the dials that control the temperature and air flow (rotating them 90 degress) or you can't because they are different bulbs? and how do you get to changing the bulbs in the switches (cruise, mirrors, sun/moon roof)?
Modified by pr0j3xt01v1c at 4:13 PM 1/30/2008
I didn't check the temp controls but it possible could be the same thing. rotate 90 degrees. the bulb type might be different check majestichonda.com on the parts section.

to change those you need to remove the tapping screw underneath the buttons. upon the draw and remove the tapping screw.
There are two clips that hold the bottom part in. once removed you will be able to see the rest and how to fix it.
oddmut is offline   Reply With Quote
Old 02-10-2008, 04:02 PM   #13
Honda-Tech Member

pr0j3xt01v1c's Avatar

Join Date: Mar 2007
Location: other side of the water from seattle
Posts: 123
Default

sweet... thanks oddmut
pr0j3xt01v1c is offline   Reply With Quote
Old 03-01-2008, 04:08 AM   #14

cyberphox's Avatar

Join Date: Feb 2008
Location: New Glasgow, NS, Canada
Posts: 10
Default

nice DIY..thanks
cyberphox is offline   Reply With Quote
Old 03-01-2008, 02:53 PM   #15
Member
Thread Starter

oddmut's Avatar

Join Date: Oct 2005
Location: Los Angeles, CA, USA
Posts: 1,114
Default Re: (cyberphox)

Quote:
Originally Posted by cyberphox
nice DIY..thanks
Quote:
Originally Posted by pr0j3xt01v1c
sweet... thanks oddmut
ur welcome guys.
oddmut is offline   Reply With Quote
Old 02-23-2015, 10:58 AM   #16
Trial User

Join Date: Feb 2015
Posts: 1
Default Re: Replace Climate / Heater Control Bulbs (oddmut)

After a lot of searching and frustration I finally pieced together what you must do FIRST when you have the auto trans. (2005 civic 4D VP)

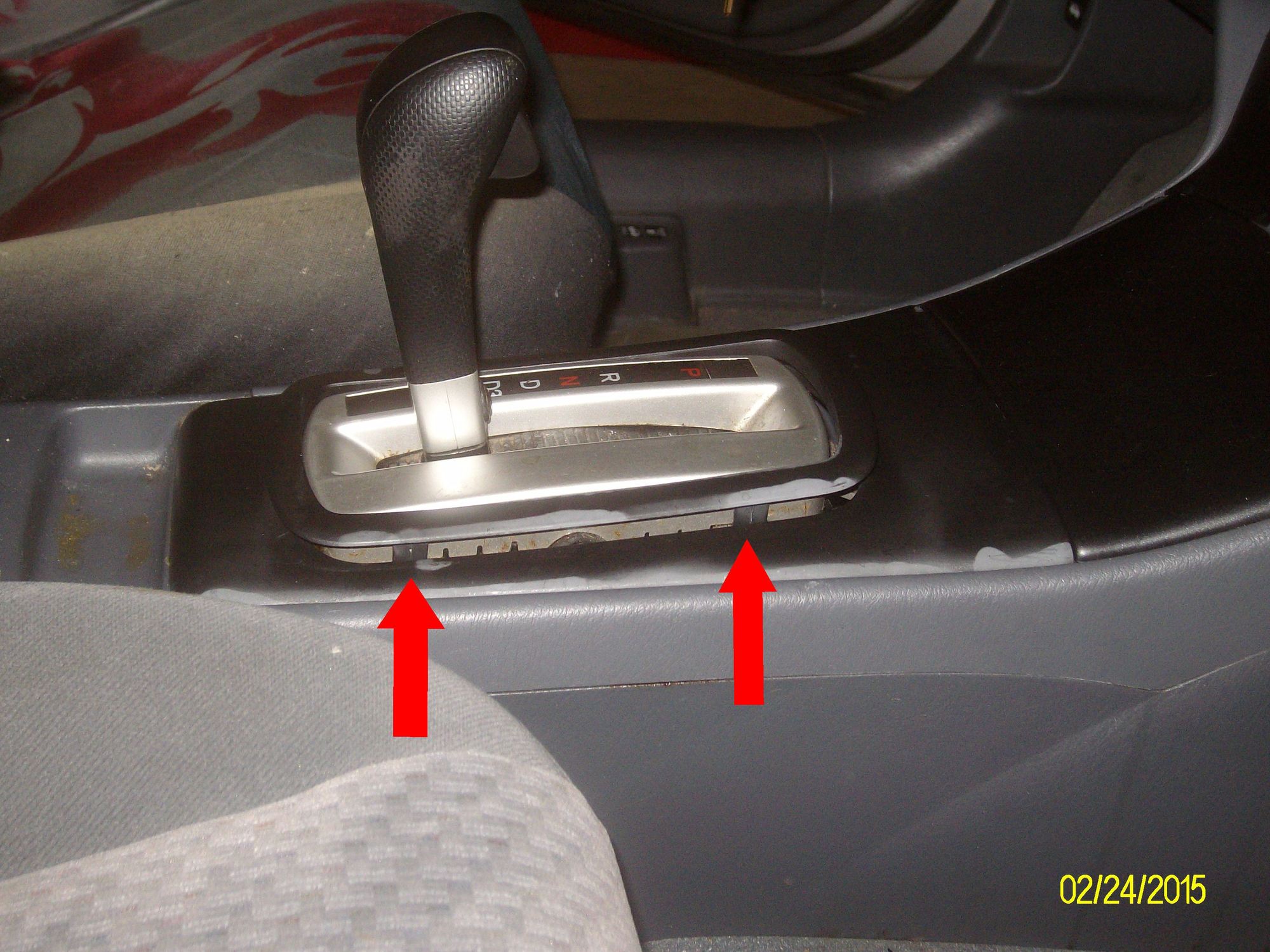

#1 You remove the trim around the shifter console. I've marked the pry spots on one side (there are two more on the other side in the same location) with red arrows and show the piece already lifted.



#2 You remove the center console top cover. I've marked the pry spots on one side (there are two more on the other side in the same location) with red arrows and show the piece already lifted.



#3 Now, you can remove the 2 screws I've marked with red arrows and then jump to the beginning of this guide and follow the rest of the steps.



Last edited by David Bogan; 02-24-2015 at 10:40 AM.
