Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
#1
Honda-Tech Member
Thread Starter
Join Date: Oct 2012
Location: California
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
Hi community,
my mind is set on a small turbo and would be using my integra b20b gsr trans for autox and some weekend driving. Im looking to get a turbo that can hit full boost at 2000 -2500 rpm and hold up to 6000-6300 rpm. I understand i wont be at 6300 rpm in auto x. Ive done so much research on the net and cannot find a straight forward answer. Btw, before anyone says anything, my suspension, brakes and tires is done. From everysingle bushing to braces, sway bars and buddy club n+ spec.
thanks (:
my mind is set on a small turbo and would be using my integra b20b gsr trans for autox and some weekend driving. Im looking to get a turbo that can hit full boost at 2000 -2500 rpm and hold up to 6000-6300 rpm. I understand i wont be at 6300 rpm in auto x. Ive done so much research on the net and cannot find a straight forward answer. Btw, before anyone says anything, my suspension, brakes and tires is done. From everysingle bushing to braces, sway bars and buddy club n+ spec.
thanks (:
#2
Honda-Tech Member
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
Check out the GT2560R (GT28R). I think that would be perfect for a B20. Maxes out around 300whp.
#3
Honda-Tech Member
Thread Starter
Join Date: Oct 2012
Location: California
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
Thanks for the response. I should have also specified this, but 200whp is what im looking at and to make sure i hit full boost at 2000-2500 rpm. Idk if anyone here has experience with those numbers, maybe from a mitsu turbo or WRX
#4
Man U FTW
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
The problem with using factory turbo components is that they use weird flanges, which makes finding a manifold rather difficult. You'll have an easy time finding T25/T3 flanged manifolds, but I highly doubt anyone carries a VF-flanged Subaru manifold for a B series...same goes for the 16g
https://agpturbo.com/garrett-journal-bearing-gt2252/
http://www.atpturbo.com/mm5/merchant...ory_Code=GTNBB
https://agpturbo.com/garrett-journal-bearing-gt2252/
http://www.atpturbo.com/mm5/merchant...ory_Code=GTNBB
#5
Honda-Tech Member
Thread Starter
Join Date: Oct 2012
Location: California
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
The problem with using factory turbo components is that they use weird flanges, which makes finding a manifold rather difficult. You'll have an easy time finding T25/T3 flanged manifolds, but I highly doubt anyone carries a VF-flanged Subaru manifold for a B series...same goes for the 16g
https://agpturbo.com/garrett-journal-bearing-gt2252/
Garrett GT2052 Turbocharger : atpturbo.com
https://agpturbo.com/garrett-journal-bearing-gt2252/
Garrett GT2052 Turbocharger : atpturbo.com
#6
Man U FTW
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
do you have any experience with the turbo in the 2nd link? No
What part number would you recommend out of the 2? Not sure - there are only 2 options - 5001s/5003s
Also, will that turbo hit full boost at or before 2500rpm? Can't say for sure, but it is about the smallest option you have without starting to restrict overall power numbers by focusing solely on spool - there is such thing as too small
What part number would you recommend out of the 2? Not sure - there are only 2 options - 5001s/5003s
Also, will that turbo hit full boost at or before 2500rpm? Can't say for sure, but it is about the smallest option you have without starting to restrict overall power numbers by focusing solely on spool - there is such thing as too small
Garret T3 60 Trim
Turbonetics 50 trim/ 60 trim/ Super 60
#7
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
If youre only really looking for 200hp the GT2554R would be perfect. The spool and response will be very quick. That being said, the GT2560R is going to have great response as well and give you quite a bit more headroom if you decide to go for more power.
Here is a 2554 on a 1.8L miata. There is more spool down there if they had started the dyno at a lower RPM.
They are known to drop off at 5500+ rpm on the Miatas, which is why many go for the 2560, or 2860. Youre going to be at 6k rpm while autocrossing a lot more than you will be at 2k rpm.
Here is a 2554 on a 1.8L miata. There is more spool down there if they had started the dyno at a lower RPM.
They are known to drop off at 5500+ rpm on the Miatas, which is why many go for the 2560, or 2860. Youre going to be at 6k rpm while autocrossing a lot more than you will be at 2k rpm.
Trending Topics
#8
Honda-Tech Member
Thread Starter
Join Date: Oct 2012
Location: California
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
Just to complicate things further - here are a few more to consider:
Garret T3 60 Trim
Turbonetics 50 trim/ 60 trim/ Super 60
Garret T3 60 Trim
Turbonetics 50 trim/ 60 trim/ Super 60
#9
Honda-Tech Member
Thread Starter
Join Date: Oct 2012
Location: California
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
If youre only really looking for 200hp the GT2554R would be perfect. The spool and response will be very quick. That being said, the GT2560R is going to have great response as well and give you quite a bit more headroom if you decide to go for more power.
Here is a 2554 on a 1.8L miata. There is more spool down there if they had started the dyno at a lower RPM.
They are known to drop off at 5500+ rpm on the Miatas, which is why many go for the 2560, or 2860. Youre going to be at 6k rpm while autocrossing a lot more than you will be at 2k rpm.
Here is a 2554 on a 1.8L miata. There is more spool down there if they had started the dyno at a lower RPM.
They are known to drop off at 5500+ rpm on the Miatas, which is why many go for the 2560, or 2860. Youre going to be at 6k rpm while autocrossing a lot more than you will be at 2k rpm.
Im just more concerned about the hairpin turns, so i just want that max psi at 2000-2500rpm
#10
Moderator
iTrader: (14)
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
That is where you measure the turbine and compressor adiabatic maps to see if you're in the right direction. At about 23lbs/min, that's about right.
#11
Honda-Tech Member
Thread Starter
Join Date: Oct 2012
Location: California
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
You mean maximum torque. Max boost at that point is not what you're trying to accomplish. If it makes that torque at the point you want, that's fine. You're basically trying to make a decent sized engine act like a BIGGER engine.
That is where you measure the turbine and compressor adiabatic maps to see if you're in the right direction. At about 23lbs/min, that's about right.
That is where you measure the turbine and compressor adiabatic maps to see if you're in the right direction. At about 23lbs/min, that's about right.
#12
Moderator
iTrader: (14)
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
Let's just say I've used a lot of those GT20s on snowmobile and Polaris applications, and they are only 900cc, and run out of top end, quickly. Bump it up to the GT25R family at minimum.
#13
Honda-Tech Member
Thread Starter
Join Date: Oct 2012
Location: California
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
#14
Moderator
iTrader: (14)
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
Umm. About 2000rpms, then it went straight down. But it's supposed to. You don't rev high on those in comparison. Remember, 900cc vs. 1998cc (B20B).. Big difference , but not in a good way.
Even the K03 turbos off of Audi's and Fords would make better torque band than a GT20
Even the K03 turbos off of Audi's and Fords would make better torque band than a GT20
#15
Honda-Tech Member
Thread Starter
Join Date: Oct 2012
Location: California
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
Umm. About 2000rpms, then it went straight down. But it's supposed to. You don't rev high on those in comparison. Remember, 900cc vs. 1998cc (B20B).. Big difference , but not in a good way.
Even the K03 turbos off of Audi's and Fords would make better torque band than a GT20
Even the K03 turbos off of Audi's and Fords would make better torque band than a GT20
#16
Honda-Tech Member
Join Date: Jul 2008
Location: Johannesburg, Gauteng, South Africa
Posts: 540
Likes: 0
Received 17 Likes
on
14 Posts
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
A Holset HX27W or HE221W are other alternatives you could consider. They are very compact, high flowing for their size, have built-in anti-surge housings and are T3 flanged.
They are internally gated, or you can remove and block off the wastegate flap and remove the actuator assembly if an external gate is to be used.
They are internally gated, or you can remove and block off the wastegate flap and remove the actuator assembly if an external gate is to be used.
#17
Honda-Tech Member
Join Date: Jan 2010
Location: Netherlands
Posts: 108
Likes: 0
Received 0 Likes
on
0 Posts
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
I would suggest like it's already been told: Garret GT2554R or GT2560R. You've got a 2 liter, so it will spool up very quickly. I think the GT2554r will run out to soon for the fun weekends. Otherwise you can use a TD05-16G or a VAG K04, but you will have those non standard turbine housings. The TD05-16G is a twin scroll turbo, that also will be fun on a 2 liter.
#20
Moderator
iTrader: (14)
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
No problem. It's the turbine housing that makes it so. In order to get any benefits of that twin scroll, he needs both the turbine housing and configure his exhaust manifold to manifest the benefits of that feature. The turbocharger alone has nothing to do with it.
Check out Cabletie's 16G6 B16 project. He was successful in integrating a 16G6 into his system, but had to make his own exhaust manifold to do it.
https://honda-tech.com/forums/forced...3213078/page6/
The difficulty in dc97's suggestion of using anything factory is the fact that only that turbine housing from the factory will work (with the exception of some Holset turbochargers). Since we don't know his mechanical inclination or welding ability, we can't assume that he knows how to get the correct materials and configuration (like Cabletie) in order to create the setup to maximize the use of a twin scroll turbine housing. If the turbine wheel is just too large, and the exhaust housing is not configured properly, then even "twin scroll" benefits will easily be lost. So, having a divided housing is a necessity, but not a sufficiency in order to get any benefits of a twin scroll housing. As the 1st illustration suggests, the division must follow the entire line of the turbine housing's inner volute, and not simply be divided for a few millimeters down the turbine flange entry.
Actual Twin Scroll

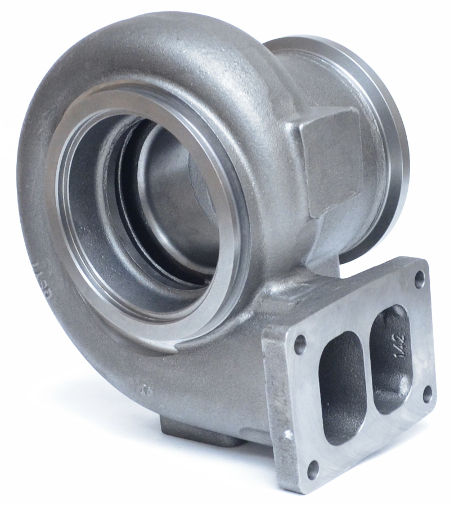

This is not a twin scroll housing. This is simply a divided turbine housing, found on larger turbine wheels for large units and factory tractor units of the OEM (Original Equipment Manufacturer)
Nor is this, despite internet lore. This does not give any benefits. It is simply a recast version of the original GT32 T3 divided turbine housing.
I know that was a lot, but I hope that clears a few things up.
Check out Cabletie's 16G6 B16 project. He was successful in integrating a 16G6 into his system, but had to make his own exhaust manifold to do it.
https://honda-tech.com/forums/forced...3213078/page6/
The difficulty in dc97's suggestion of using anything factory is the fact that only that turbine housing from the factory will work (with the exception of some Holset turbochargers). Since we don't know his mechanical inclination or welding ability, we can't assume that he knows how to get the correct materials and configuration (like Cabletie) in order to create the setup to maximize the use of a twin scroll turbine housing. If the turbine wheel is just too large, and the exhaust housing is not configured properly, then even "twin scroll" benefits will easily be lost. So, having a divided housing is a necessity, but not a sufficiency in order to get any benefits of a twin scroll housing. As the 1st illustration suggests, the division must follow the entire line of the turbine housing's inner volute, and not simply be divided for a few millimeters down the turbine flange entry.
Actual Twin Scroll
This is not a twin scroll housing. This is simply a divided turbine housing, found on larger turbine wheels for large units and factory tractor units of the OEM (Original Equipment Manufacturer)
Nor is this, despite internet lore. This does not give any benefits. It is simply a recast version of the original GT32 T3 divided turbine housing.
I know that was a lot, but I hope that clears a few things up.
#21
Honda-Tech Member
Thread Starter
Join Date: Oct 2012
Location: California
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
No problem. It's the turbine housing that makes it so. In order to get any benefits of that twin scroll, he needs both the turbine housing and configure his exhaust manifold to manifest the benefits of that feature. The turbocharger alone has nothing to do with it.
Check out Cabletie's 16G6 B16 project. He was successful in integrating a 16G6 into his system, but had to make his own exhaust manifold to do it.
https://honda-tech.com/forums/forced...3213078/page6/
The difficulty in dc97's suggestion of using anything factory is the fact that only that turbine housing from the factory will work (with the exception of some Holset turbochargers). Since we don't know his mechanical inclination or welding ability, we can't assume that he knows how to get the correct materials and configuration (like Cabletie) in order to create the setup to maximize the use of a twin scroll turbine housing. If the turbine wheel is just too large, and the exhaust housing is not configured properly, then even "twin scroll" benefits will easily be lost. So, having a divided housing is a necessity, but not a sufficiency in order to get any benefits of a twin scroll housing. As the 1st illustration suggests, the division must follow the entire line of the turbine housing's inner volute, and not simply be divided for a few millimeters down the turbine flange entry.
Actual Twin Scroll
This is not a twin scroll housing. This is simply a divided turbine housing, found on larger turbine wheels for large units and factory tractor units of the OEM (Original Equipment Manufacturer)
Nor is this, despite internet lore. This does not give any benefits. It is simply a recast version of the original GT32 T3 divided turbine housing.
I know that was a lot, but I hope that clears a few things up.
Check out Cabletie's 16G6 B16 project. He was successful in integrating a 16G6 into his system, but had to make his own exhaust manifold to do it.
https://honda-tech.com/forums/forced...3213078/page6/
The difficulty in dc97's suggestion of using anything factory is the fact that only that turbine housing from the factory will work (with the exception of some Holset turbochargers). Since we don't know his mechanical inclination or welding ability, we can't assume that he knows how to get the correct materials and configuration (like Cabletie) in order to create the setup to maximize the use of a twin scroll turbine housing. If the turbine wheel is just too large, and the exhaust housing is not configured properly, then even "twin scroll" benefits will easily be lost. So, having a divided housing is a necessity, but not a sufficiency in order to get any benefits of a twin scroll housing. As the 1st illustration suggests, the division must follow the entire line of the turbine housing's inner volute, and not simply be divided for a few millimeters down the turbine flange entry.
Actual Twin Scroll
This is not a twin scroll housing. This is simply a divided turbine housing, found on larger turbine wheels for large units and factory tractor units of the OEM (Original Equipment Manufacturer)
Nor is this, despite internet lore. This does not give any benefits. It is simply a recast version of the original GT32 T3 divided turbine housing.
I know that was a lot, but I hope that clears a few things up.
#22
Moderator
iTrader: (14)
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
You get the turbo first, then you get the manifold. It's not a simple "bolt on" affair. Get the turbo, find the downpipe flanging and then find the manifold. you may have to send the turbo to someplace like Go-Autoworks to help make sure it can mate well with the rest of your setup. Can't do this over the phone, as the GT2554R is not your usual turbocharger to use. Get photos, send it to them.
#23
Honda-Tech Member
Thread Starter
Join Date: Oct 2012
Location: California
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
You get the turbo first, then you get the manifold. It's not a simple "bolt on" affair. Get the turbo, find the downpipe flanging and then find the manifold. you may have to send the turbo to someplace like Go-Autoworks to help make sure it can mate well with the rest of your setup. Can't do this over the phone, as the GT2554R is not your usual turbocharger to use. Get photos, send it to them.
http://www.treadstoneperformance.com/product.phtml?p=67810&cat_key=698&prodname=Honda+B +Series+DIY+Log+Manifold+Kit
#24
Honda-Tech Member
Thread Starter
Join Date: Oct 2012
Location: California
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
I also found this.. the flange bolt pattern looks a little off center though, what do you guys think?
http://m.ebay.com/itm/Turbo-Exhaust-Manifold-HONDA-Civic-B16-B18-B20-T25-Flg-/381948216289?nav=SEARCH
http://m.ebay.com/itm/Turbo-Exhaust-Manifold-HONDA-Civic-B16-B18-B20-T25-Flg-/381948216289?nav=SEARCH
#25
Honda-Tech Member
re: Twin Scroll Turbo Suggestions?: B20B AutoX-200whp w/ Max torque by 2000-2500 rpms
I think thats typical for b series log manifolds, IMO just buy one from go autoworks its cheaper anyway, I would recommend sending the turbo to him like shodan suggested and he can create a downpipe that will fit your application at the same time.
Turbo
https://www.google.com/search?site=w...k1.nlnLiRXOa80
manifold
http://www.go-autoworks-store.com/gocairbsedot.html
manifold + downpie kit
http://www.go-autoworks-store.com/gobcamaco.html
you might get a cheaper price if you decide to go internal wastegate turbo as he wont need to make the dumptube
Turbo
https://www.google.com/search?site=w...k1.nlnLiRXOa80
manifold
http://www.go-autoworks-store.com/gocairbsedot.html
manifold + downpie kit
http://www.go-autoworks-store.com/gobcamaco.html
you might get a cheaper price if you decide to go internal wastegate turbo as he wont need to make the dumptube
Last edited by 2kdrift; 02-08-2017 at 11:11 PM.
