:pics: do you think this oil drain line will work?
#1
Honda-Tech Member
Thread Starter
Join Date: Dec 2004
Location: WA
Posts: 1,269
Likes: 0
Received 0 Likes
on
0 Posts
:pics: do you think this oil drain line will work?

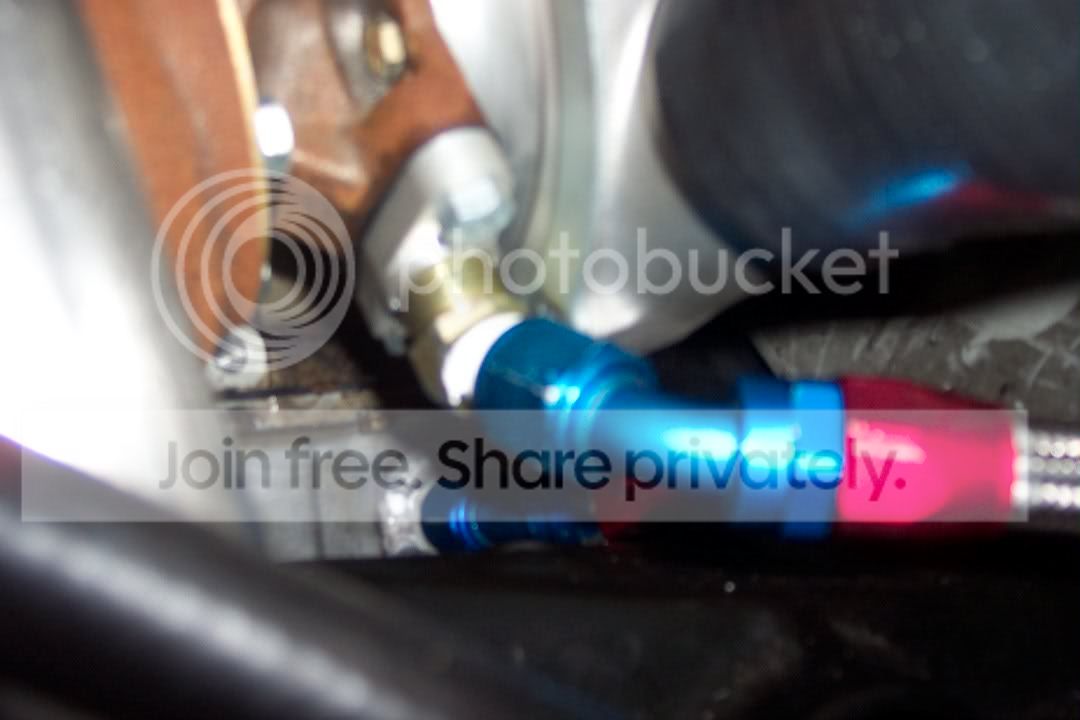

Let me know what you guys think. this is pretty much all I had room for using braided lines. Do you think this will work?
It was kind of hard to take pics but I did what I could. Just looking for some input because I've never turbo'd a car before and I'm pretty much just building it from what I learned from you guys and other miscellaneous forums.
It was kind of hard to take pics but I did what I could. Just looking for some input because I've never turbo'd a car before and I'm pretty much just building it from what I learned from you guys and other miscellaneous forums.
#3
Honda-Tech Member
Thread Starter
Join Date: Dec 2004
Location: WA
Posts: 1,269
Likes: 0
Received 0 Likes
on
0 Posts
Re: :pics: do you think this oil drain line will work? (johnmay19)
<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by johnmay19 »</TD></TR><TR><TD CLASS="quote">Hard to tell but doesn't look like it will. Is there a dip in it before the oil pan?</TD></TR></TABLE>
there is a 45 deg an fitting on the pan that tilts up so it does'nt hit the crossmember. The line is pretty much level even though the pictures make it look like its not. Sadness if the line does'nt work because I don't really know what else to do and I spent a good bit trying out different fittings and lengths of lines to get this setup . The turbo just sits so godam low
there is a 45 deg an fitting on the pan that tilts up so it does'nt hit the crossmember. The line is pretty much level even though the pictures make it look like its not. Sadness if the line does'nt work because I don't really know what else to do and I spent a good bit trying out different fittings and lengths of lines to get this setup . The turbo just sits so godam low
#6
Honda-Tech Member
Thread Starter
Join Date: Dec 2004
Location: WA
Posts: 1,269
Likes: 0
Received 0 Likes
on
0 Posts
Re: (LSturboEH2)
the line does run parrallel to the ground. It dips down out of the turbo then runs parralel to the ground until it get so the oil pan where it dips down another lil bit
#7
Re: (c61lude)
I've always thought that the hardest thing about turbo **** is when you run into problems like this. More than likely, that drain is going to give you problems. Alot of the Hf manifold adapter plate kits I see have this same problem.
I can only thing of two solutions that might help you. Maybe run a 90 degree barbed fitting off of the drain flange, and use a straight barbed fitting coming out of the pan. A short straight piece of that braided hose may have just enough angle to get the oil back to the pan. Another thing you have going for you in that situation is that the forward momentum of the car helps to get the oil back to the pan. (In extreme cases this works, but has some smoke at stop lights or driving down hills.) Any how, it's probably a better bet than the loop, because with that you don't have that "momentum of the car" thing going for you.
And if that doesn't work, you might have some luck moving the pan flange. If you move it further away (like near the drivers side corner of the pan) and as far down as you can without being in the oil level, this might give you room to get a little longer of a "slight slant" going and may help. Either way, good luck.
I can only thing of two solutions that might help you. Maybe run a 90 degree barbed fitting off of the drain flange, and use a straight barbed fitting coming out of the pan. A short straight piece of that braided hose may have just enough angle to get the oil back to the pan. Another thing you have going for you in that situation is that the forward momentum of the car helps to get the oil back to the pan. (In extreme cases this works, but has some smoke at stop lights or driving down hills.) Any how, it's probably a better bet than the loop, because with that you don't have that "momentum of the car" thing going for you.
And if that doesn't work, you might have some luck moving the pan flange. If you move it further away (like near the drivers side corner of the pan) and as far down as you can without being in the oil level, this might give you room to get a little longer of a "slight slant" going and may help. Either way, good luck.
Trending Topics
#8
Honda-Tech Member
looks like it goes down, then back up.
any time it goes up, it'll be fighting gravity to get the oil back in the pan.
and only thing pulling it in there is gravity i think.
just as long as there is no UP portion to the line, you should be ok.
maybe if you used a shorter line, with less slack?
any time it goes up, it'll be fighting gravity to get the oil back in the pan.
and only thing pulling it in there is gravity i think.
just as long as there is no UP portion to the line, you should be ok.
maybe if you used a shorter line, with less slack?
#13
iTrader: (1)
Join Date: Nov 2001
Location: 43257 Osgood Rd. Fremont, CA 94539
Posts: 45,428
Likes: 0
Received 0 Likes
on
0 Posts
Re: (tegunderpressure)
barb fitings and a silicone return line. purchase the return line from vertex on ebay./ pretty cheap and very flexible. im not even using SS braided line anymore. just the silicone stuff. works a hell of a lot better when it comes to flexabilty and limited ****.e
#15
Honda-Tech Member
Thread Starter
Join Date: Dec 2004
Location: WA
Posts: 1,269
Likes: 0
Received 0 Likes
on
0 Posts
Re: (Mag00n)
alright I just took my front end apart so I could get some better pics to you guys.
And mag00n I agree with you . Sad thing is that design took me like 12 hours of thinking and tinkering to construct
And mag00n I agree with you . Sad thing is that design took me like 12 hours of thinking and tinkering to construct
#16
Honda-Tech Member
Thread Starter
Join Date: Dec 2004
Location: WA
Posts: 1,269
Likes: 0
Received 0 Likes
on
0 Posts
Re: (USDM 4G VTEC)
<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by USDM 4G VTEC »</TD></TR><TR><TD CLASS="quote">get some of the earl fittings that swivel
that way get them looking to ea other as best as u can, and use the shortest line u can</TD></TR></TABLE>
do you have any pictures? where do I get them. Thanks for the input and optimism unlike some other comments on h-t
<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by project dc2 »</TD></TR><TR><TD CLASS="quote">barb fitings and a silicone return line. purchase the return line from vertex on ebay./ pretty cheap and very flexible. im not even using SS braided line anymore. just the silicone stuff. works a hell of a lot better when it comes to flexabilty and limited ****.e </TD></TR></TABLE>
This is I don't want to retap my pan because I live in the woods ( about 45 minutes away from any town with a tig welder) so is there a way I can thread something into the current tap?
Thanks for all your guy's input. It helps alot because I'm pretty much going solo on this project. None of my local freinds are even into this kind of stuff
that way get them looking to ea other as best as u can, and use the shortest line u can</TD></TR></TABLE>
do you have any pictures? where do I get them. Thanks for the input and optimism unlike some other comments on h-t
<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by project dc2 »</TD></TR><TR><TD CLASS="quote">barb fitings and a silicone return line. purchase the return line from vertex on ebay./ pretty cheap and very flexible. im not even using SS braided line anymore. just the silicone stuff. works a hell of a lot better when it comes to flexabilty and limited ****.e </TD></TR></TABLE>
This is I don't want to retap my pan because I live in the woods ( about 45 minutes away from any town with a tig welder) so is there a way I can thread something into the current tap?
Thanks for all your guy's input. It helps alot because I'm pretty much going solo on this project. None of my local freinds are even into this kind of stuff
#19
Honda-Tech Member
Re: (c61lude)
What kind of manifold do you have that places your turbo so low? Ive never seen the return outlet on the turbo so close to the oil pan before.
#20
iTrader: (1)
Join Date: Nov 2001
Location: 43257 Osgood Rd. Fremont, CA 94539
Posts: 45,428
Likes: 0
Received 0 Likes
on
0 Posts
Re: (Mag00n)
http://amstreetrod.com/700145ERL.php4
10 10 5/8 Dry Sump & Remote Oil Filter Lines 700111ERL
$7.51
ea.
#21
Honda-Tech Member
Join Date: Oct 2000
Location: Zoo York
Posts: 4,534
Likes: 0
Received 0 Likes
on
0 Posts
Re: (project dc2)
i had a similar dillema on a return i made... i put a 90 right off the turbo and tried to keep the line with at least a little downard slope... never had any problems... here's 2 pics for what its worth
#22
Re: (ek9t)
I would definately look into the 90 degree barb fitting. The earls fittings are nice, but very bulky and that's what you need to get away from in this situation. A 90 off the turbo, and a straight shot into the pan flange you already have. That's what I would do first.
Thread
Thread Starter
Forum
Replies
Last Post
