P28-G01 C18 Blow..check engine light

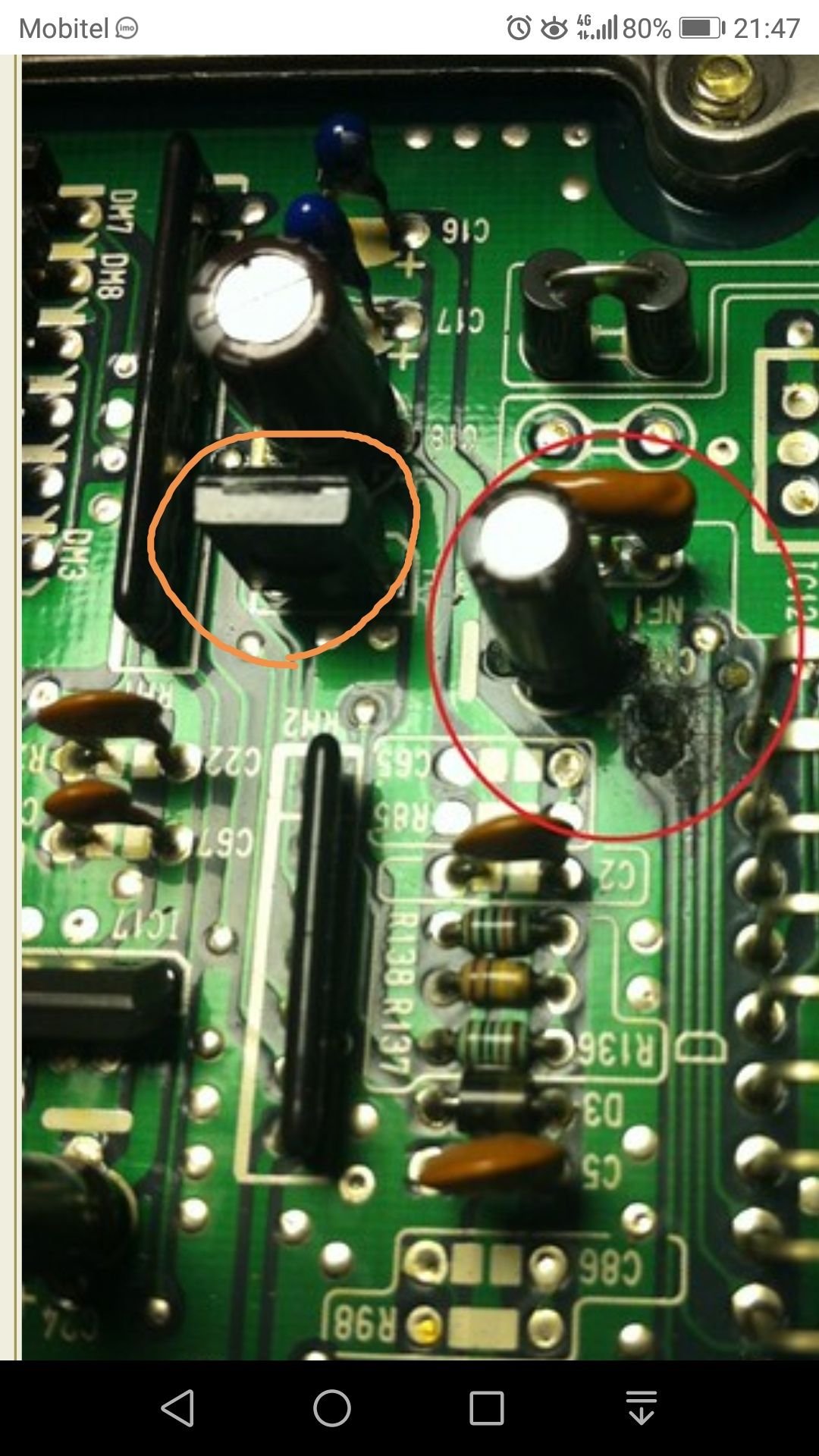

Hi, i got this p28-g01 but got check engine light, i try to open and found that c18 and circuit are burn. Car cannot start like no fuel go to engine. Here i attached burn area. What c18 function for? do not get enough info through google or wiki
Last edited by majdi; 12-31-2010 at 09:15 AM.
#2
Honda-Tech Member
Re: P28-G01 C18 Blow..check engine light
The +C18 capacitor and +C17 capacitor circuits connect with R136 (resistor) and to ECU connector Pin D10/ELD, Electronic load detector. +C16 (capacitor) goes to +R21 (resistor), +C4 (capacitor) and to ECU connector Pin B1. That is the ECUs Ignition switched Battery voltage Power source. So what ever is on the (-) side of C16 isn't getting any power.
#3
Honda-Tech Member
Thread Starter
Join Date: Jul 2010
Location: New Castle 15300, Kelantan
Posts: 173
Likes: 0
Received 0 Likes
on
0 Posts
Re: P28-G01 C18 Blow..check engine light
The +C18 capacitor and +C17 capacitor circuits connect with R136 (resistor) and to ECU connector Pin D10/ELD, Electronic load detector. +C16 (capacitor) goes to +R21 (resistor), +C4 (capacitor) and to ECU connector Pin B1. That is the ECUs Ignition switched Battery voltage Power source. So what ever is on the (-) side of C16 isn't getting any power.
But c16 and c17 do not have any marking on it, actually what type capacitor is that and the value..seen it have + - i confuse either it ceramic or any else type of capacitor.
#5
Honda-Tech Member
Thread Starter
Join Date: Jul 2010
Location: New Castle 15300, Kelantan
Posts: 173
Likes: 0
Received 0 Likes
on
0 Posts
Re: P28-G01 C18 Blow..check engine light
tantalum reference :
http://www.computescotland.com/commo...tages-3469.php
http://www.rr-cirkits.com/parts/parts-caps.html
#7
Honda-Tech Member
Thread Starter
Join Date: Jul 2010
Location: New Castle 15300, Kelantan
Posts: 173
Likes: 0
Received 0 Likes
on
0 Posts
Re: P28-G01 C18 Blow..check engine light
Got the tantalum cap yesterday, replace and solder back the burn component and track, also check another cap, there also burn c19, so i just change all aluminum cap. Test to start..then..... it working. Where can i find obd1 board circuit diagram, maybe some url or keyword or person sell the obd1 circuit diagram?
Last edited by majdi; 01-04-2011 at 08:13 PM.
Trending Topics
#8
Honda-Tech Member
Re: P28-G01 C18 Blow..check engine light
I have yet to find a complete one....I have only ever found circuit diagrams of an individual circuit here and there. I use an old OBD1 ECU that I carefully removed every single component. Now I have a blank circuit board and I have stuck all of the components onto a foam board. This way I can check circuits individually without any clutter.
#9
Honda-Tech Member
Thread Starter
Join Date: Jul 2010
Location: New Castle 15300, Kelantan
Posts: 173
Likes: 0
Received 0 Likes
on
0 Posts
Re: P28-G01 C18 Blow..check engine light
I have yet to find a complete one....I have only ever found circuit diagrams of an individual circuit here and there. I use an old OBD1 ECU that I carefully removed every single component. Now I have a blank circuit board and I have stuck all of the components onto a foam board. This way I can check circuits individually without any clutter.
#10
Honda-Tech Member
Re: P28-G01 C18 Blow..check engine light
I have yet to find a complete one....I have only ever found circuit diagrams of an individual circuit here and there. I use an old OBD1 ECU that I carefully removed every single component. Now I have a blank circuit board and I have stuck all of the components onto a foam board. This way I can check circuits individually without any clutter.
#11
#12
Honda-Tech Member
Re: P28-G01 C18 Blow..check engine light
So what do you do with your spare time? Some people, myself included, like to learn new skills in there spare time. This is an example of how I nailed my soldering technique down. Not bad when you can make $50+/hr for a hobby.
#13
Re: P28-G01 C18 Blow..check engine light
#16
Honda-Tech Member
Re: P28-G01 C18 Blow..check engine light
Having this attitude towards life will take you a long way and make you a successful in what you do. Fair play man !
#17
Re: P28-G01 C18 Blow..check engine light
i know this is old but iam getting code 3 CEL MAP sensor, the ecu is bad, i replace all the aluminum capacitors still the same problem, so i search on the web and find that C18 and C17 are MAP sensor related capacitors, can anyone confirm this plz
#18
Honda-Tech Member
Re: P28-G01 C18 Blow..check engine light
i use my D10 to connect my wideband
for 2 years this was working great.
now sometimes my D10-ELD dont work.
anyone knows what are the capacitors on D10-ELD circuit to replace them ?
for 2 years this was working great.
now sometimes my D10-ELD dont work.
anyone knows what are the capacitors on D10-ELD circuit to replace them ?
#20
Re: P28-G01 C18 Blow..check engine light
Good day I have a problem with an ecu of my civic is a p28 step the key and until you turn off the check engine light does not turn the engine probe with another ecu from a friend and caught carriage once someone knew what his ecu problem or someone happened
