Cgmiller8390's Complete "Frame-Up" Custom Car Progress Build Thread
#1
Honda-Tech Member
Thread Starter
Join Date: Apr 2017
Location: Indianapolis, IN
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
Cgmiller8390's Complete "Frame-Up" Custom Car Progress Build Thread
Hello everyone! I first started collecting parts for my creation in 2015. Purchasing parts from local junk yards and Ebay. All the metal stock is from a local metal supplier. The engine and drive train from a 94 Honda Accord. Sold the parts I didn't need and ended up covering what I paid for the car. I do have big plans for the engine, turbo anyone. Most of the designing was made using Sketchup and then transferred to a frame calculator. Plus all the designs in my head. When I first started the build, I was only taking pictures until April of 2017. Going to start posting videos of the on going work and designs.
This thread is picture heavy. Not slow internet friendly.
This thread is picture heavy. Not slow internet friendly.
Last edited by cgmiller8390; 04-17-2017 at 03:35 PM. Reason: Add pics
#2
Honda-Tech Member
Thread Starter
Join Date: Apr 2017
Location: Indianapolis, IN
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
re: Cgmiller8390's Complete
Good weekend.
Check to see if it's level.
Welling underside in sections. That way if I have to replace a panel it will be easier.
So much grinding.
Last edited by cgmiller8390; 04-17-2017 at 03:51 PM.
#3
Honda-Tech Member
Thread Starter
Join Date: Apr 2017
Location: Indianapolis, IN
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
Re: Cgmiller8390's Complete "Frame-Up" Custom Car Progress Build Thread

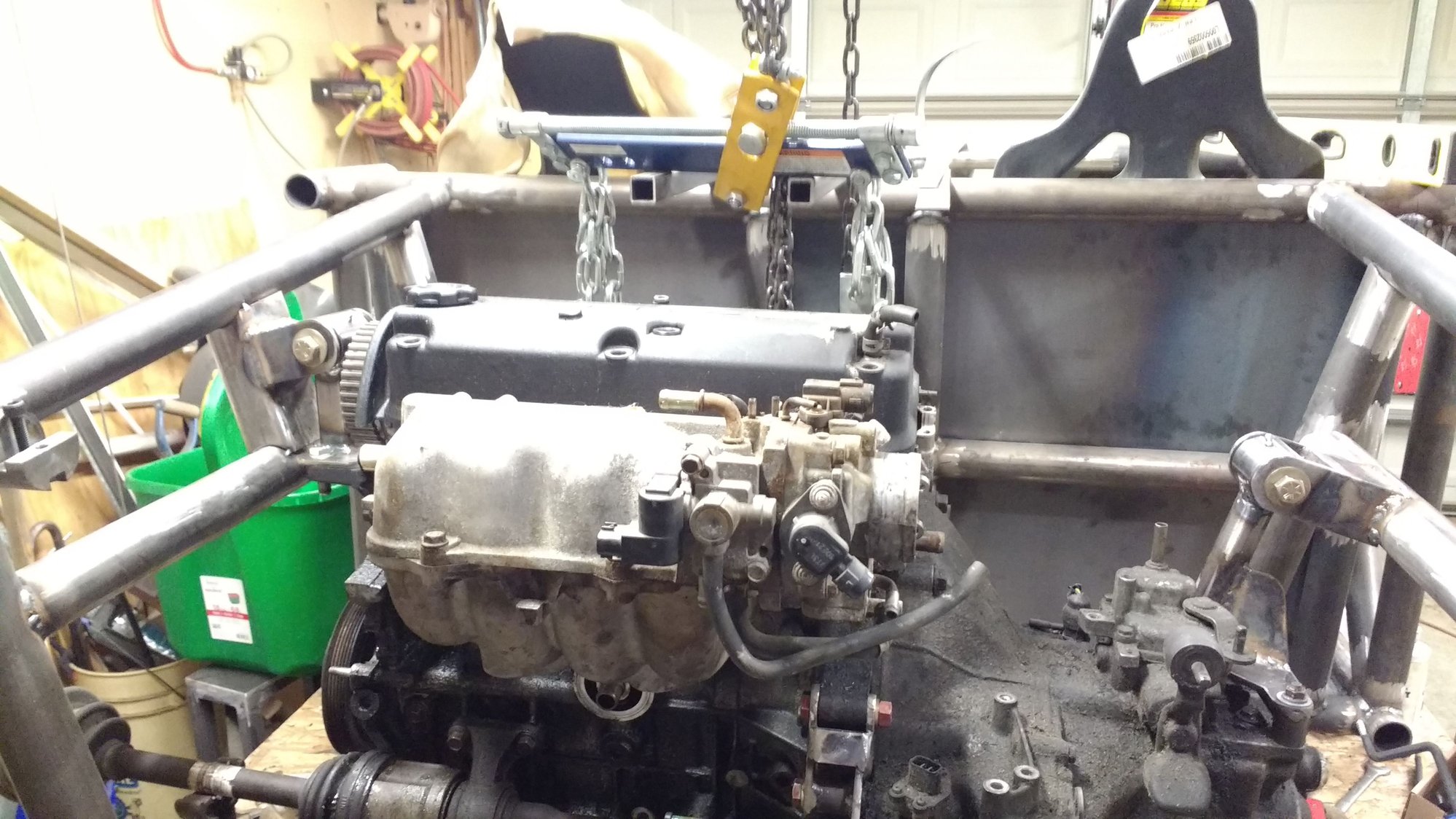

Welding up front firewall. Engine is in the back of car, lol.
Set the radiator tubes in the frame.
Boxing in the frame for the passengers feet.
Bodywork will bolt on top of the sheet metal.
Master cylinders bolted in.
Trending Topics
#10
Honda-Tech Member
Thread Starter
Join Date: Apr 2017
Location: Indianapolis, IN
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
Re: Cgmiller8390's Complete "Frame-Up" Custom Car Progress Build Thread

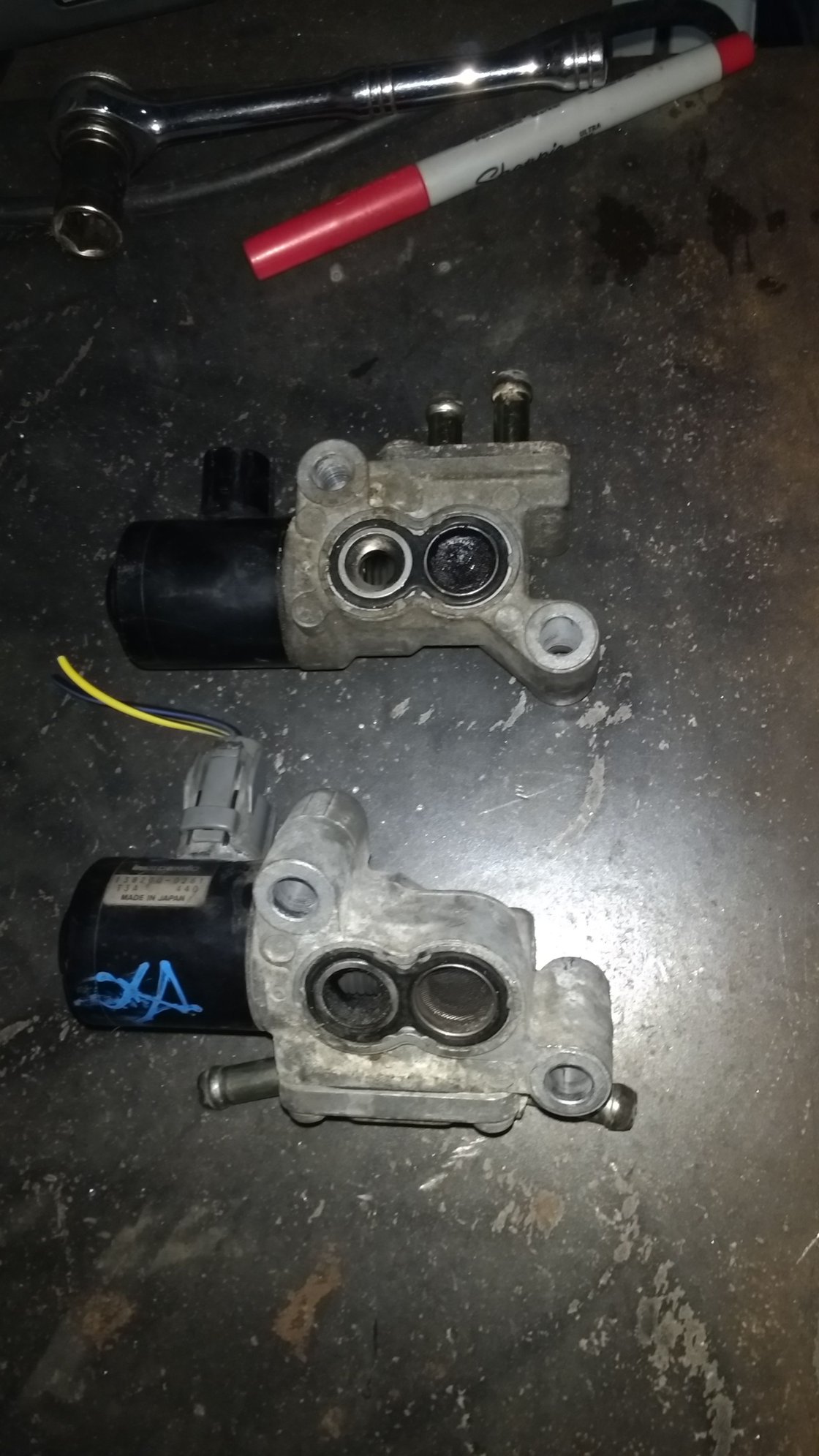

Just some of the parts waiting to go on.
Last edited by cgmiller8390; 04-17-2017 at 03:51 PM.
#12
Honda-Tech Member
Thread Starter
Join Date: Apr 2017
Location: Indianapolis, IN
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
Re: Cgmiller8390's Complete "Frame-Up" Custom Car Progress Build Thread
Picked up a parts car for $300. The block is aluminum with iron sleeves. So boring it out doesn't require replacing the sleeves like the H and K engine. Bisimoto has shown what you can do with this engine. The F22B1 trans is geared very long, which is better at keeping the turbo in it's powerband.
#14
Honda-Tech Member
Thread Starter
Join Date: Apr 2017
Location: Indianapolis, IN
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
Re: Cgmiller8390's Complete "Frame-Up" Custom Car Progress Build Thread
A little something from my Creator page on Patreon.
Finish welding up the right half of the rear lower control arm jig. Going to try finish notching the tubes tomorrow. I'll then tack it in the jig and let in cool down. Once that's done, flip the arm to the left side and use the arm to line up the brackets to the plate. I now know why companies take so long to make jigs or holding frames. Thanks How's Its Made.
Finish welding up the right half of the rear lower control arm jig. Going to try finish notching the tubes tomorrow. I'll then tack it in the jig and let in cool down. Once that's done, flip the arm to the left side and use the arm to line up the brackets to the plate. I now know why companies take so long to make jigs or holding frames. Thanks How's Its Made.
#15
Honda-Tech Member
Thread Starter
Join Date: Apr 2017
Location: Indianapolis, IN
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
Re: Cgmiller8390's Complete "Frame-Up" Custom Car Progress Build Thread
Late getting out of work today, so didn't get much done. I used paper templates to mark the lines around the tube. I then used the grinder to get the notches shaped just right. I could have done this with my tubing notcher but didn't want to. Mainly because it set perfectly to 90 degrees and its very hard to do that.
#16
Moderator
iTrader: (14)
Re: Cgmiller8390's Complete "Frame-Up" Custom Car Progress Build Thread
As much as I love this thread for a custom project, there's not much "Tech" in this regarding Hondas yet. Great, hi-res photos are cool, however, this may need to go to an appearance build forum with all of these photos and one line descriptions. There's not much "tech" description here regarding Hondas. If the theme changes a bit, I'll recommend it be moved to a more appropriate forum
#17
Honda-Tech Member
Thread Starter
Join Date: Apr 2017
Location: Indianapolis, IN
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
Re: Cgmiller8390's Complete "Frame-Up" Custom Car Progress Build Thread
As much as I love this thread for a custom project, there's not much "Tech" in this regarding Hondas yet. Great, hi-res photos are cool, however, this may need to go to an appearance build forum with all of these photos and one line descriptions. There's not much "tech" description here regarding Hondas. If the theme changes a bit, I'll recommend it be moved to a more appropriate forum
#20
Honda-Tech Member
Thread Starter
Join Date: Apr 2017
Location: Indianapolis, IN
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
#21
Honda-Tech Member
Thread Starter
Join Date: Apr 2017
Location: Indianapolis, IN
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
#22
Honda-Tech Member
Thread Starter
Join Date: Apr 2017
Location: Indianapolis, IN
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
Re: Cgmiller8390's Complete "Frame-Up" Custom Car Progress Build Thread
Final finished the first of four control arm jigs. This jig will be used to make one more arm then put into storage. That way if I damage an arm, I can make as many as I want or need. Now to start making the rear upper control arm jig. This arm is much smaller and not as many pieces. So hopefully it won't take as long to do.
#25
Honda-Tech Member
Thread Starter
Join Date: Apr 2017
Location: Indianapolis, IN
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
Re: Cgmiller8390's Complete "Frame-Up" Custom Car Progress Build Thread
Well I started marking the upper control arm jig, so I thought. When I was making the jig I flipped a measurement in my head. 9 became a 6, lol. Below is a picture of the jig made to short. The next picture is with the lower control arm and tire mounted up.
