Default 94 integra Ls to gsr swap IAB question.

So I've found all the info on how to hook up IAB into ecu but still not quite understanding it. So I have a 94 integra 5 speed manual and I'm putting a jdm gsr motor into it. It's obd1. So a20 is the evap and a17 is empty. So my question is the IAB has two wires and needs to be hooked up two different ways? One in a17 for the 12v source and the other I'm not sure about. Could someone elaborate a little on this for me. This is the only thing I have yet to figure out. Anything helps. Thanks again.
Hybridguitarist is offline   Reply With Quote
Old 11-29-2016, 06:04 PM   #2
Technical Hero

HondaPartsHero's Avatar

Join Date: May 2002
Location: Charlotte, NC, 28227
Posts: 9,765
Default Re: 94 integra Ls to gsr swap IAB question.

Two ways really:

1. Depin the wire from A20 and pin it to A17. Then plug the Evap purge connecfor into the IAB. You'll obviously delete the Evap but no codes will be thrown.

2. Run a two wire connector from the IABS, one wire goes to A17, the other wire tap a switched 12V source.
HondaPartsHero is offline   Reply With Quote
Old 11-29-2016, 07:23 PM   #3
Honda-Tech Member
Thread Starter

Join Date: Oct 2016
Posts: 63
Default Re: 94 integra Ls to gsr swap IAB question.

Okay so first question, without the evap in it won't throw a code and in turn will not effect emissions? I live in Washington state so we have to do emissions. Second question, so the connector for the evap will plug right into the IAB and all I have to do is re-pin the evap to a17 and all done? If so than thank you so very much for elaborating on this.
Hybridguitarist is offline   Reply With Quote
Old 11-29-2016, 07:52 PM   #4
Honda-Tech Member
Thread Starter

Join Date: Oct 2016
Posts: 63
Default Re: 94 integra Ls to gsr swap IAB question.

As for the second method, would the 12 v source be a ground? Like hooking it up to the thermostat housing or something along those lines?
Hybridguitarist is offline   Reply With Quote
Old 11-29-2016, 09:26 PM   #5
Honda-Tech Member

Join Date: Jan 2013
Location: Bama
Posts: 1,034
Default Re: 94 integra Ls to gsr swap IAB question.

A17 is actually the GROUND for the IAB circuit. The other wire in the two pin plug connector needs to be connected to a 12v+ source... pick a wire in the engine harness that is yellow with a black trace.
JRCivic1 is offline   Reply With Quote
Old 11-30-2016, 09:59 AM   #6
Honda-Tech Member
Thread Starter

Join Date: Oct 2016
Posts: 63
Default Re: 94 integra Ls to gsr swap IAB question.

Got it. So any yellow wire with black strip on the wiring harness. the way that involves the evap is definatly the more simpler way, but know that I understand how the 12v constant thing will work I think I'm going to go that route. Thanks for chiming in and elaborating for me, really appreciated. Can't wait to start up this gsr build.
Hybridguitarist is offline   Reply With Quote
Old 12-01-2016, 02:46 PM   #7
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 666
Default Re: 94 integra Ls to gsr swap IAB question.

Quote:
Originally Posted by HondaPartsHero View Post
Two ways really:

1. Depin the wire from A20 and pin it to A17. Then plug the Evap purge connecfor into the IAB. You'll obviously delete the Evap but no codes will be thrown.

2. Run a two wire connector from the IABS, one wire goes to A17, the other wire tap a switched 12V source.
Quote:
Originally Posted by JRCivic1 View Post
A17 is actually the GROUND for the IAB circuit. The other wire in the two pin plug connector needs to be connected to a 12v+ source... pick a wire in the engine harness that is yellow with a black trace.
I am sorry to ask a question that is probably incredibly un-informed, but I cannot figure out these responses...

I was recently confirming IAB connections in my swap, as I understood the IAB solenoid to ground to the thermostat housing (G101). Your references to pins A20 and A17 are confusing to me. Are you talking about a JDM ECU? In which case, I thought they did not have Evap?

From the service manual for '96 Integra, IAB is pinned @ A26.

What am I not understanding?

Thanks for tolerating my question!
Attached Images

94 Civic Si is offline   Reply With Quote
Old 12-01-2016, 06:34 PM   #8
Technical Hero

HondaPartsHero's Avatar

Join Date: May 2002
Location: Charlotte, NC, 28227
Posts: 9,765
Default Re: 94 integra Ls to gsr swap IAB question.


1996 is obd2, your car is obd1, are you using a JDM P72 OBD2 or OBD1 P72?

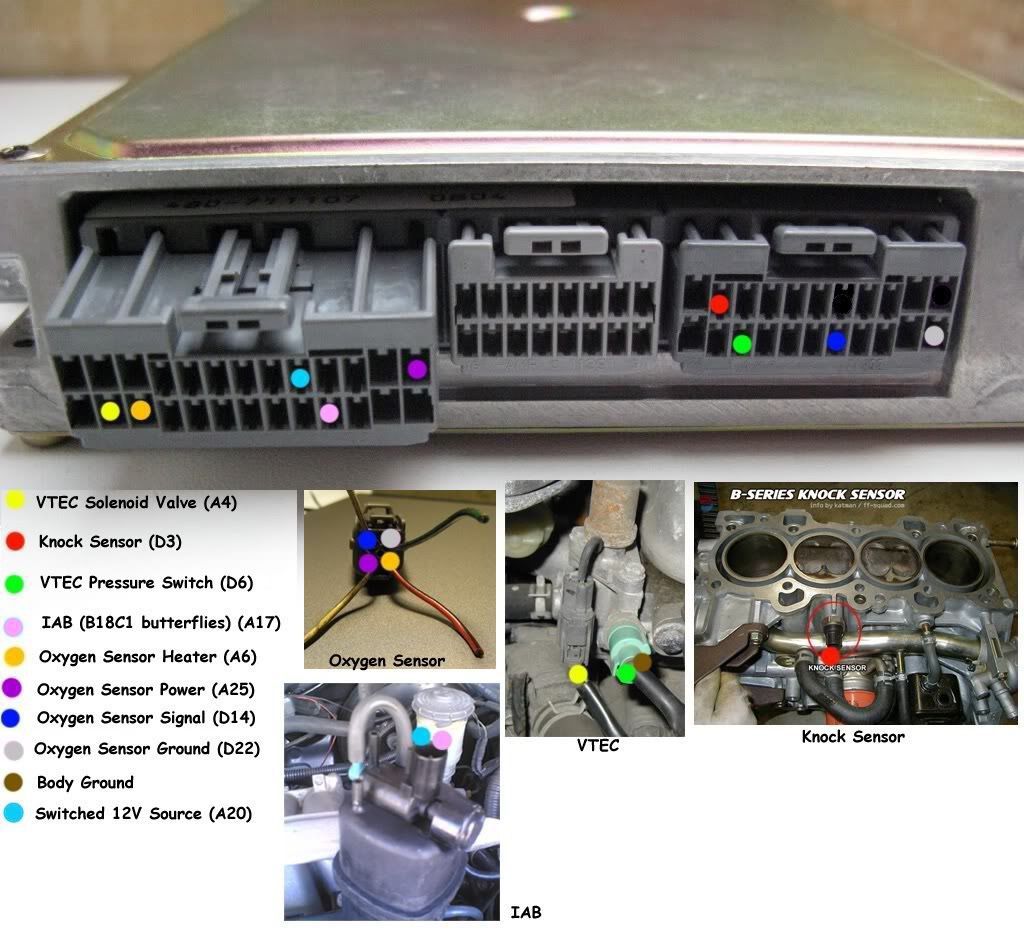

Heres a diagram I made a few years back
HondaPartsHero is offline   Reply With Quote
Old 12-02-2016, 08:15 AM   #9
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 666
Default Re: 94 integra Ls to gsr swap IAB question.

Quote:
Originally Posted by HondaPartsHero View Post

1996 is obd2, your car is obd1, are you using a JDM P72 OBD2 or OBD1 P72?

Heres a diagram I made a few years back
Oh wow...
Of course my '94 EH3 is OBD1.
I just took a look through the manual for the body, and yes, the ECU/ECM connectors are OBD1, so I am guessing I have the OBD1 P72...
Thank you. This is really teaching me a lot about this vehicle.
94 Civic Si is offline   Reply With Quote
Old 12-02-2016, 08:52 AM   #10
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 666
Default Re: 94 integra Ls to gsr swap IAB question.

Quote:
Originally Posted by HondaPartsHero View Post

1996 is obd2, your car is obd1, are you using a JDM P72 OBD2 or OBD1 P72?

Here's a diagram I made a few years back
Thanks for making this diagram! It seems that the manuals for the '94 Civic and Integra do not detail the ECM connectors as nicely as the '96 manual I used above.

This will help me when I am checking my connections this weekend.

PS: did you get my PM about VTEC connectors?
94 Civic Si is offline   Reply With Quote
Old 12-02-2016, 09:31 AM   #11
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 666
Default Re: 94 integra Ls to gsr swap IAB question.

Sorry I am making a mountain out of a molehill, and I don't want to sounds ungrateful, but I think the pin-outs shown above for the IAB might be incorrectly labeled.

It looks like you got A17 and A20 mixed up...

Here are some scans from the '94 Integra manual, my first clue something was wrong was when I saw A17 in the upper row on the A connector. I wish the OBD1 manuals had a legend that labeled each pin, but that does not seem to be happening in this manual. I would love to label the connectors, maybe someday when I have a lot of time...

Hope these can help:
Attached Images

94 Civic Si is offline   Reply With Quote
Old 12-02-2016, 09:44 AM   #12
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 666
Default Re: 94 integra Ls to gsr swap IAB question.

When I look at the purge solenoid, am I reading this correct that A20 is a switched Ground (-) for the Evap Purge Solenoid?
Attached Images

94 Civic Si is offline   Reply With Quote
Old 12-02-2016, 10:32 AM   #13
Honda-Tech Member

Join Date: Nov 2016
Posts: 4
Default Re: 94 integra Ls to gsr swap IAB question.

Hi guys I have a question about the AIB I have a 1997 Integra GSR pretty much Stock I recently replace the head gasket, water pump, Valve cover seals etc, now that I put it back together I noticed that my
secondary Vtec/Butterly/Runners is not working at all, I can hear and feel the primary at around 4400 RPM but the 5800RPM one is not working, no CEL are flashing so I have no idea whats wrong or how to fix it I verify that the vacuum hoses are plugged in correctly, anyone has any input on how to find the problem?
Rufer is offline   Reply With Quote
Old 12-02-2016, 10:37 AM   #14
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 666
Default Re: 94 integra Ls to gsr swap IAB question.

Quote:
Originally Posted by Rufer View Post
Hi guys I have a question about the AIB I have a 1997 Integra GSR pretty much Stock I recently replace the head gasket, water pump, Valve cover seals etc, now that I put it back together I noticed that my
secondary Vtec/Butterly/Runners is not working at all, I can hear and feel the primary at around 4400 RPM but the 5800RPM one is not working, no CEL are flashing so I have no idea whats wrong or how to fix it I verify that the vacuum hoses are plugged in correctly, anyone has any input on how to find the problem?
It sounds like you did some good maintenance! If you replaced the head gasket, I am wondering if you got all the vacuum lines to the IAB hooked back up correctly?
94 Civic Si is offline   Reply With Quote
Old 12-02-2016, 10:44 AM   #15
Honda-Tech Member

Join Date: Nov 2016
Posts: 4
Default Re: 94 integra Ls to gsr swap IAB question.

I had an experience friend help me with the job and I he also have no idea whats wrong, I had check several time the vacuum hoses are connected properly and they are. IDK if the IAB is bad would the check engine light come on the dashboard? or how could I check if its working? all the post I seen are aftermarket Manifolds or they have the CEL on which aren't too helpful in my situation since mine is all original and no CEL are on lol!
Rufer is offline   Reply With Quote
Old 12-02-2016, 11:06 AM   #16
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 666
Default Re: 94 integra Ls to gsr swap IAB question.

Quote:
Originally Posted by Rufer View Post
I had an experience friend help me with the job and I he also have no idea whats wrong, I had check several time the vacuum hoses are connected properly and they are. IDK if the IAB is bad would the check engine light come on the dashboard? or how could I check if its working? all the post I seen are aftermarket Manifolds or they have the CEL on which aren't too helpful in my situation since mine is all original and no CEL are on lol!
If you are all nice and original, I would probably start asking this crew: Acura Integra - Honda-Tech
94 Civic Si is offline   Reply With Quote
Old 12-02-2016, 11:08 AM   #17
Honda-Tech Member

Join Date: Nov 2016
Posts: 4
Default Re: 94 integra Ls to gsr swap IAB question.

ok I will do that thanks!
Rufer is offline   Reply With Quote
Old 12-03-2016, 02:36 AM   #18
Technical Hero

HondaPartsHero's Avatar

Join Date: May 2002
Location: Charlotte, NC, 28227
Posts: 9,765
Default Re: 94 integra Ls to gsr swap IAB question.

@94 Civic Si - you're correct I need to back and fix that diagram. Both IAB and evap are switched ground activated.

The IABs won't throw a code. I'll try to post some troublseshooting pages later
HondaPartsHero is offline   Reply With Quote
Old 12-03-2016, 07:24 AM   #19
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 666
Default Re: 94 integra Ls to gsr swap IAB question.

Quote:
Originally Posted by HondaPartsHero View Post
@94 Civic Si - you're correct I need to back and fix that diagram. Both IAB and evap are switched ground activated.

The IABs won't throw a code. I'll try to post some troublseshooting pages later
Thank you for confirming, I was afraid I was missing some other key detail!
94 Civic Si is offline   Reply With Quote
Old 12-03-2016, 12:00 PM   #20
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 666
Default Re: 94 integra Ls to gsr swap IAB question.

Quote:
Originally Posted by HondaPartsHero View Post
@94 Civic Si - you're correct I need to back and fix that diagram. Both IAB and evap are switched ground activated.

The IABs won't throw a code. I'll try to post some troublseshooting pages later
So it looks like it gets more interesting! My B18C1 is from 1996 (OBD2) and I saw the swap shop had connected the (-) terminal of the connector to the G101 at the t-stat housing. "Uh-oh" I thought! But when I check the FSM for '96, the ground terminal goes to body ground!
So what the heck is the (+) terminal of my IAB hooked up to at my OBD1 P72 ECM? Not like any other terminals are going to switch off (+) @ ~5000 RPM

Below scan is from 1996 (OBD2) Integra FSM for troubleshooting IAB connector:
Attached Images


Last edited by 94 Civic Si; 12-03-2016 at 06:28 PM.
94 Civic Si is offline   Reply With Quote
Old 12-03-2016, 12:08 PM   #21
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 666
Default Re: 94 integra Ls to gsr swap IAB question.

That seems like a big change for OBD1 to OBD2 - same connector, but switching polarity of terminals and switched ground vs. switched (+).
94 Civic Si is offline   Reply With Quote
Old 12-03-2016, 01:35 PM   #22
Honda-Tech Member
Thread Starter

Join Date: Oct 2016
Posts: 63
Default Re: 94 integra Ls to gsr swap IAB question.

Quote:
Originally Posted by JRCivic1 View Post
A17 is actually the GROUND for the IAB circuit. The other wire in the two pin plug connector needs to be connected to a 12v+ source... pick a wire in the engine harness that is yellow with a black trace.
Okay so I should be doing something differently with the IAB than what was said early on? So where should I be hooking up the IAB in my p72 obd1 ecu, and where should I be hooking up the yellow/black wire from the IAB? Unless nothing has changed for my setup than what was stated above than disregard. But if this effects my swap than please elaborate on this.
Hybridguitarist is offline   Reply With Quote
Old 12-03-2016, 01:39 PM   #23
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 666
Default Re: 94 integra Ls to gsr swap IAB question.

Quote:
Originally Posted by HondaPartsHero View Post
@94 Civic Si - you're correct I need to back and fix that diagram. Both IAB and evap are switched ground activated.

The IABs won't throw a code. I'll try to post some troublseshooting pages later
Quote:
Originally Posted by 94 Civic Si View Post
So it looks like it gets more interesting! My B18C1 is from 1996 (OBD2) and I saw the swap shop had connected the (-) terminal of the connector to the G101 at the t-stat housing. "Uh-oh" I thought! But when I check the FSM for '96, the ground terminal goes to body ground!
So what the heck is the (+) terminal of my IAB hooked up to at my OBD1 P72 ECM? Not like any other terminals are going to switch off (+) @ ~5000 RPM

Below scan is from 1996 (OBD2) Integra FSM for troubleshooting IAB connector:
I think I need help. It looks like my IAB is hooked up to ground (-) at the thermostat housing (G101) and the other terminal is hooked up to A17.

Am I correct that my IAB has likely never operated hooked up in this manner, as it never saw a (+) 12 signal?

Am I also correct that in the presence of no voltage, the intake operates with the valves open, and thus uses the short runners - to the detriment of low end torque?

If yes, I have been missing out on IAB for the last 14 years...

Scans are from the '96 OBD2 FSM:
Attached Images


Last edited by 94 Civic Si; 12-03-2016 at 01:56 PM.
94 Civic Si is offline   Reply With Quote
Old 12-03-2016, 01:47 PM   #24
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 666
Default Re: 94 integra Ls to gsr swap IAB question.

Quote:
Originally Posted by HondaPartsHero View Post
@94 Civic Si - you're correct I need to back and fix that diagram. Both IAB and evap are switched ground activated.

The IABs won't throw a code. I'll try to post some troublseshooting pages later
Am I reading the OBD1 FSM correctly that both use (+) from the PGM-FI main relay via the YEL/BLK wire?
94 Civic Si is offline   Reply With Quote
Old 12-03-2016, 01:53 PM   #25
Honda-Tech Member

94 Civic Si's Avatar

Join Date: Mar 2004
Location: Estados Unidos
Posts: 666
Default Re: 94 integra Ls to gsr swap IAB question.

Quote:
Originally Posted by JRCivic1 View Post
A17 is actually the GROUND for the IAB circuit. The other wire in the two pin plug connector needs to be connected to a 12v+ source... pick a wire in the engine harness that is yellow with a black trace.
Quote:
Originally Posted by Hybridguitarist View Post
Got it. So any yellow wire with black strip on the wiring harness. the way that involves the evap is definatly the more simpler way, but know that I understand how the 12v constant thing will work I think I'm going to go that route. Thanks for chiming in and elaborating for me, really appreciated. Can't wait to start up this gsr build.
Quote:
Originally Posted by HondaPartsHero View Post
@94 Civic Si - you're correct I need to back and fix that diagram. Both IAB and evap are switched ground activated.

The IABs won't throw a code. I'll try to post some troublseshooting pages later
Quote:
Originally Posted by Hybridguitarist View Post
Okay so I should be doing something differently with the IAB than what was said early on? So where should I be hooking up the IAB in my p72 obd1 ecu, and where should I be hooking up the yellow/black wire from the IAB? Unless nothing has changed for my setup than what was stated above than disregard. But if this effects my swap than please elaborate on this.
If I understand things correctly, which I may not, the (+) YEL/BLK comes from the PGM-FI main relay, and the switched ground @ A17 will be on until the engine hits 5750 RPM. If I were you, I would wait until someone more knowledgeable than I confirms.
94 Civic Si is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
94 integra Ls to gsr swap IAB question. Hybridguitarist Hybrid / Engine Swaps 1 11-28-2016 03:00 PM
IAB Wiring. Hanmin Honda Civic / Del Sol (1992 - 2000) 11 05-08-2009 06:04 AM
iab questions. i searched djsire Honda Civic / Del Sol (1992 - 2000) 4 09-15-2006 09:04 PM
iab help the soL that could Hybrid / Engine Swaps 8 07-04-2006 11:26 PM
Help! IAB Question (searched) projectegr Hybrid / Engine Swaps 3 01-18-2005 12:32 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -8. The time now is 04:11 PM.



  • Ask a Question
    Get answers from community experts
What's your question?
Send
