Default How To: JDM ITR SRS Steering Wheel Install

First off here are the two pages from the Helms manual on removing the stock steering wheel. I have included in my write up the removal of the steering wheel to supplement the helms.

http://www.meilinkvision.com/i...1.jpg
http://www.meilinkvision.com/i...2.jpg

1.

Park your car where you plan to work and position the steering wheel/wheels straight.


2.

Remove the negative battery cable then the positive. Wait ten minutes before starting so that the airbag does not deploy in your face when you begin working.


3.

Remove the access panel located below the steering wheel by removing the phillips head screw and then using a flathead to pop it off:




4.

With the access panel opened, pull down on the plug for the srs wiring and the cable reel. Then disconnect them.




5.

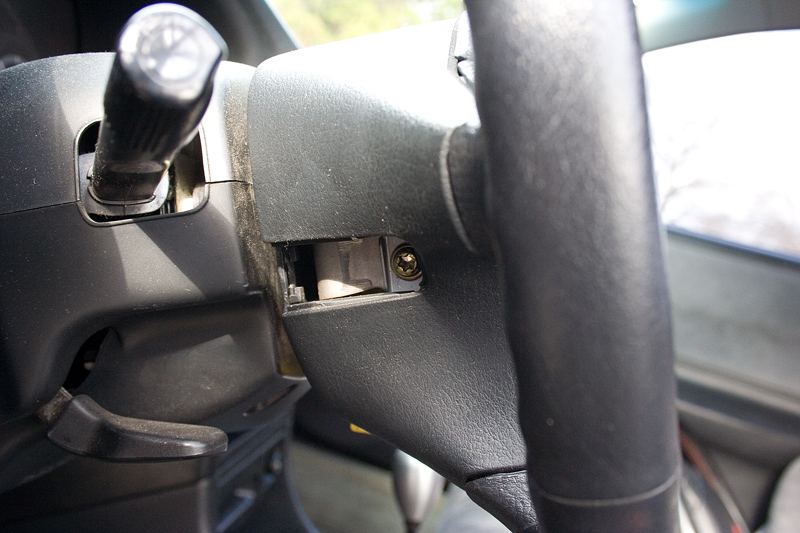

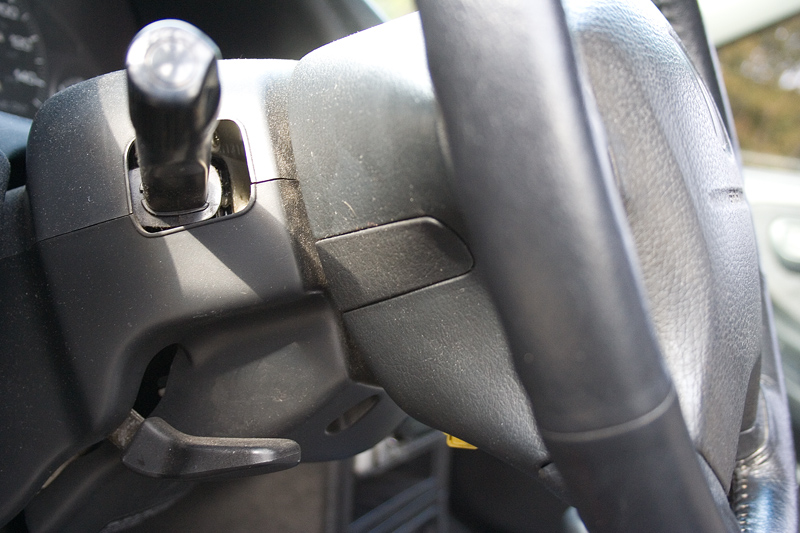

Locate the left side access panel and remove by prying with a flathead screwdriver to expose the torque bolt.






6.

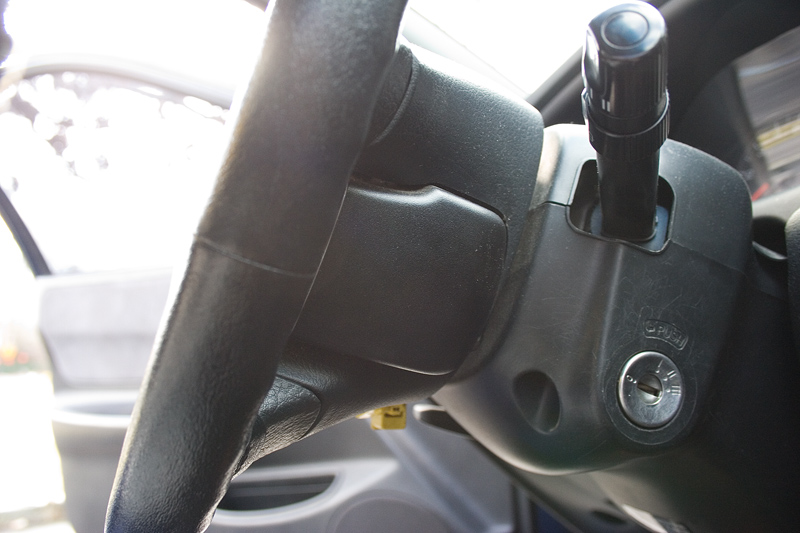

Locate the right side access panel (cruise control switch cover) and remove to expose another torque bolt. This cover can just be pulled off by hand.






7.

Now with both torx bolts exposed remove each. Size you'll need is a t-30. For me this was a bitch to get off and I broke one of the torx wrenches.


8.

With both bolts removed, the airbag should slide right off.




9.

In the above picture, disconnect the horn (red wires, black clip at the top) and the cruise control wires (green to yellow clip on the right next to the cruise control buttons)


10.

Remove the steering wheel nut in the center. It's a 19mm, but you'll also need a small extension to clear the steering wheel to loosen the nut. This nut was also a bit of a pain to get off. Just throw a pipe on the end of your socket wrench and it should come right off.


11.

The wheel will now slide off. If you haven't already, now would be a good time to unscrew the two bolts on the rear of your JDM steering wheel to remove the airbag.

It's hard to see in the picture, but there's 2 black clips inside the brass part that needs to be clipped. There extremely easy to break so you can probably use some needlenose pliers to reach in and break them. If that doesn't work remove the two steering column covers to give you better access. Make sure you don't move the white part with the arrow too much. If you lose the center you'll have to refind it by going all the way to either the right or left then spinning it back around the opposite way about 2 and a half times.



12.

Now with the black part clipped, you need to put the brass part back to 9 and 3 if it moved. Move the white srs ring to the right a bit so it lines up with the JDM wheel. Slide it in and play with it until it goes all the way down and sits flush. This may take a couple of tries. If you get it on and the steering wheel isn't straight, the brass part moved. So pull it back off, reposition the brass part and try again. Once its on put the nut back on and tighten it down.


13.

Connect the horn wires. The horn shares a wire with the cruise control and by removing the cruise control buttons, there is an open circuit. To keep your horn from ever failing this circuit will need to be closed with a wire/jumper (info provided by canuck-mx6 in this thread: http://www.honda-tech.com/zerothread?id=508078). I didn't do this I just connected the two horn wires and the horn works. But it will probably fail after some time.

14.

Pull the cable reel wire through the access panel on the jdm wheel. Put the airbag into place and tighten down the two bolts on the side. Connect the airbag wire and cable reel wire and put the access panel back into place.


15.

Connect the battery. From the passenger seat put the car into the ON position and then look to make sure the SRS light goes off. I cannot stress enough the danger of doing this from the driver seat. Just in case you did something wrong, you do not want the airbag going off in your face.


16.

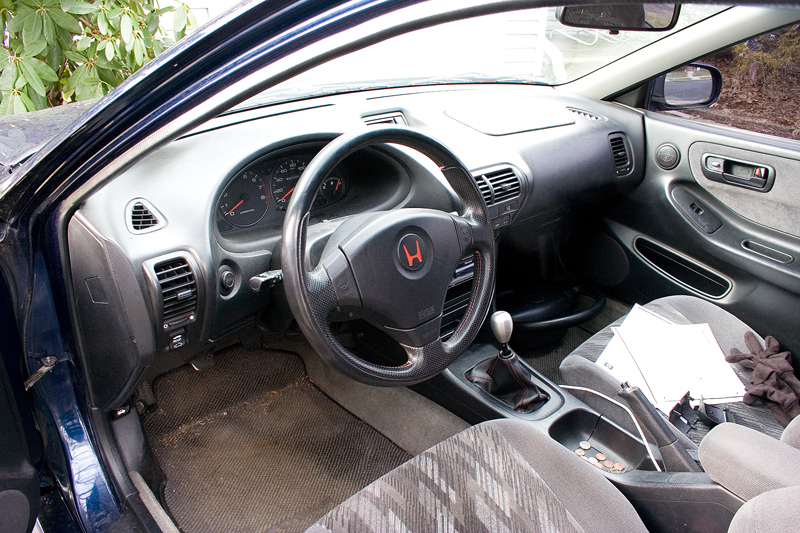

Sit back and enjoy





Thanks to Comp97GSR for hooking me up with a great deal on the wheel and providing me with some helpful links and posts on how to install it.


A couple of notes:

Sorry for no pictures on the 2nd half. It started to snow and I wanted to get done quick.

Following these steps you will not get the SRS light and you will retain the signal cancellation.

This install is for 96+ integras. To make it compatible with 94 - 95, please follow the link in step 13.


Modified by BLacK FirE at 5:14 PM 1/25/2007


Modified by BLacK FirE at 5:44 PM 1/25/2007
BLacK FirE is offline   Reply With Quote
Old 01-25-2007, 11:48 AM   #2
Honda-Tech Member

GSRdude's Avatar

Join Date: Sep 2005
Location: Hickville aka The Sticks, Va, Usa
Posts: 354
Default Re: How To: JDM ITR SRS Steering Wheel Install (BLacK FirE)

neato
GSRdude is offline   Reply With Quote
Old 01-25-2007, 12:42 PM   #3
Member

gsr dood's Avatar

Join Date: Jul 2005
Location: NASSUA, LI, NY, U.S.A.
Posts: 1,327
Default Re: How To: JDM ITR SRS Steering Wheel Install (GSRdude)

thats awsome keith. i wanna see that **** in person!!!
gsr dood is offline   Reply With Quote
Old 01-25-2007, 12:58 PM   #4
Honda-Tech Member

Brick Top's Avatar

Join Date: Oct 2004
Location: cincinnati
Posts: 1,655
Default Re: How To: JDM ITR SRS Steering Wheel Install (gsr dood)

very useful info!
Brick Top is offline   Reply With Quote
Old 01-25-2007, 01:02 PM   #5
HT Black OPs
iTrader: (1)

00IntegrAllmotoR's Avatar

Join Date: Jun 2004
Location: AZ, USA
Posts: 3,159
Default Re: How To: JDM ITR SRS Steering Wheel Install (brick top)

very nice write up.
00IntegrAllmotoR is offline   Reply With Quote
Old 01-25-2007, 01:15 PM   #6
Honda-Tech Member

ThePro's Avatar

Join Date: Feb 2003
Location: Lacey, WA, USA
Posts: 842
Default Re: How To: JDM ITR SRS Steering Wheel Install (00IntegrAllmotoR)

Very nice writeup. May I add this is to apply to 98-01 integra's only. This will not work for the 94-95 OBD1 tegs because the plugs for the airbag are different.

Edit : My bad, changed the years it doesn't work on. Link in step 13 talks about a how-to for these cars but it involves "trial-and-error" method.


Modified by ThePro at 3:21 PM 1/25/2007
ThePro is offline   Reply With Quote
Old 01-25-2007, 01:23 PM   #7
Honda-Tech Member

redGSRguy's Avatar

Join Date: Sep 2001
Location: San Jose, CA
Posts: 3,808
Default Re: How To: JDM ITR SRS Steering Wheel Install (ThePro)

Looks great! I like instruction 15, how to avoid eating airbag!
redGSRguy is online now   Reply With Quote
Old 01-25-2007, 01:31 PM   #8
Honda-Tech Member

Comp97GSR's Avatar

Join Date: Nov 2001
Location: Coming to a parking lot, near you
Posts: 4,540
Default Re: How To: JDM ITR SRS Steering Wheel Install (ThePro)

Quote:
Originally Posted by ThePro
Very nice writeup. May I add this is to apply to 98-01 integra's only. This will not work for the 94-97 tegs because the plugs for the airbag are different.
Not true, I had it in a 97 GSR.

Good Job! Looks good!!! Glad to see you did it like a pro and even did a 'How To'.
Comp97GSR is offline   Reply With Quote
Old 01-25-2007, 01:42 PM   #9
Honda-Tech Member
Thread Starter
iTrader: (2)

BLacK FirE's Avatar

Join Date: Apr 2004
Location: Long Island, NY
Posts: 2,676
Default Re: How To: JDM ITR SRS Steering Wheel Install (ThePro)

Quote:
Originally Posted by ThePro
Very nice writeup. May I add this is to apply to 98-01 integra's only. This will not work for the 94-97 tegs because the plugs for the airbag are different.
This install will work for all 96+ integras. The airbag plug is different on the 94 - 95 integras because they are OBDI, but it is possible to get it to work. The link I provided in step 13 also mentions how to make it work in a 94 - 95.


Thanks everybody, while all the info for this install is already on HT, it was seperated in different threads. I figured it would be good to have it all laid out in one easy to access thread
BLacK FirE is offline   Reply With Quote
Old 01-25-2007, 02:44 PM   #10
Junior Member

c1rcany12's Avatar

Join Date: Oct 2005
Location: Long Island, New York, USA
Posts: 585
Default Re: How To: JDM ITR SRS Steering Wheel Install (BLacK FirE)

nice writeup keith
looks really good
c1rcany12 is offline   Reply With Quote
Old 01-25-2007, 03:24 PM   #11
Honda-Tech Member

TunerN00b's Avatar

Join Date: Jun 2004
Location: Sherman Oaks, CA, United States
Posts: 7,520
Default Re: How To: JDM ITR SRS Steering Wheel Install (BLacK FirE)

Aside from appearance, is the JDM wheel a different size than the USDM wheel? I'd love to have a smaller diameter wheel, but am not willing to give up the airbag on a daily driver.
TunerN00b is offline   Reply With Quote
Old 01-25-2007, 04:34 PM   #12
Honda-Tech Member
Thread Starter
iTrader: (2)

BLacK FirE's Avatar

Join Date: Apr 2004
Location: Long Island, NY
Posts: 2,676
Default Re: How To: JDM ITR SRS Steering Wheel Install (TunerN00b)

I meant to compare them side by side, but forgot to. It is a bit smaller, from what I've read its around 10mm.
BLacK FirE is offline   Reply With Quote
Old 01-25-2007, 04:38 PM   #13
Honda-Tech Member
iTrader: (5)

BlueIntegraBoy's Avatar

Join Date: Apr 2003
Location: Hawaii --> Arizona
Posts: 23,968
Default Re: How To: JDM ITR SRS Steering Wheel Install (BLacK FirE)

Nice write-up. What year is your teg? I heard the SRS plug won't connect to OBD1 tegs.
BlueIntegraBoy is offline   Reply With Quote
Old 01-25-2007, 07:07 PM   #14

live_again_integra's Avatar

Join Date: Feb 2005
Location: hi
Posts: 89
Default Re: How To: JDM ITR SRS Steering Wheel Install (BLacK FirE)

nice wheel
live_again_integra is offline   Reply With Quote
Old 01-25-2007, 07:09 PM   #15
Honda-Tech Member
iTrader: (5)

jdm_bones's Avatar

Join Date: Dec 2005
Location: Cartagena, Colombia
Posts: 9,608
Default Re: How To: JDM ITR SRS Steering Wheel Install (BLacK FirE)

looks good bro...good job on the write up
jdm_bones is offline   Reply With Quote
Old 01-25-2007, 07:10 PM   #16
Honda-Tech Member
Thread Starter
iTrader: (2)

BLacK FirE's Avatar

Join Date: Apr 2004
Location: Long Island, NY
Posts: 2,676
Default Re: How To: JDM ITR SRS Steering Wheel Install (BlueIntegraBoy)

Quote:
Originally Posted by BlueIntegraBoy
Nice write-up. What year is your teg? I heard the SRS plug won't connect to OBD1 tegs.
At the end of the install I have the years its compatible with, 96+. In step 13 the link there also has about doing it in a 94 - 95, but as thepro pointed out its sorta trial and error because both wires are red, so theres no way to tell which is the positive and which is the negative.
BLacK FirE is offline   Reply With Quote
Old 01-25-2007, 07:14 PM   #17
Honda-Tech Member

GSRdude's Avatar

Join Date: Sep 2005
Location: Hickville aka The Sticks, Va, Usa
Posts: 354
Default Re: How To: JDM ITR SRS Steering Wheel Install (BLacK FirE)

what about a multimeter?
GSRdude is offline   Reply With Quote
Old 01-25-2007, 07:18 PM   #18
Honda-Tech Member
Thread Starter
iTrader: (2)

BLacK FirE's Avatar

Join Date: Apr 2004
Location: Long Island, NY
Posts: 2,676
Default Re: How To: JDM ITR SRS Steering Wheel Install (GSRdude)

According to this post, that won't work either:


Quote:
Originally Posted by integra15

PS dont use a multimeter on the air bag, you could set it off.
BLacK FirE is offline   Reply With Quote
Old 01-25-2007, 07:21 PM   #19
Honda-Tech Member

GSRdude's Avatar

Join Date: Sep 2005
Location: Hickville aka The Sticks, Va, Usa
Posts: 354
Default Re: How To: JDM ITR SRS Steering Wheel Install (BLacK FirE)

so if you get it wrong the first time, you can just swap the 2 red wires and try again...or no?
GSRdude is offline   Reply With Quote
Old 01-25-2007, 07:24 PM   #20
Honda-Tech Member

GSRdude's Avatar

Join Date: Sep 2005
Location: Hickville aka The Sticks, Va, Usa
Posts: 354
Default Re: How To: JDM ITR SRS Steering Wheel Install (GSRdude)

it would set it off if you got it wrong ...?
GSRdude is offline   Reply With Quote
Old 01-25-2007, 07:27 PM   #21
Honda-Tech Member
Thread Starter
iTrader: (2)

BLacK FirE's Avatar

Join Date: Apr 2004
Location: Long Island, NY
Posts: 2,676
Default Re: How To: JDM ITR SRS Steering Wheel Install (GSRdude)

I honestly have no idea. I'd suggest talking to the OP of that thread to see what he says.
BLacK FirE is offline   Reply With Quote
Old 01-26-2007, 09:39 AM   #22
Honda-Tech Member

ThePro's Avatar

Join Date: Feb 2003
Location: Lacey, WA, USA
Posts: 842
Default Re: How To: JDM ITR SRS Steering Wheel Install (GSRdude)

I've heard that airbags are ground sensing, so if you get the two wires wrong, BOOM! There goes a $400 JDM Steering Wheel.

A multimeter would set it off because it is ground sensing and a multimeter is a ground. So there really isn't a way to figure it out unless you can get into a JDM ITR and check.
ThePro is offline   Reply With Quote
Old 01-26-2007, 09:51 AM   #23
Honda-Tech Member

GSRdude's Avatar

Join Date: Sep 2005
Location: Hickville aka The Sticks, Va, Usa
Posts: 354
Default Re: How To: JDM ITR SRS Steering Wheel Install (ThePro)

maybe the op of the other thread would remember which wires he used, but I cant really do this ...I dont have the money for one ...there 300 or so
GSRdude is offline   Reply With Quote
Old 01-27-2007, 12:44 PM   #24
Honda-Tech Member

97integraLS911's Avatar

Join Date: May 2006
Location: Clive, Iowa, 50325
Posts: 1,286
Default Re: How To: JDM ITR SRS Steering Wheel Install (GSRdude)

do the non-srs wheels work on an srs sytem?? is there any way to delete the system to the wheel?
i bought a non-srs wheel and need to know if i can get it to work on my 97 (with srs airbag)
thanks
97integraLS911 is offline   Reply With Quote
Old 01-27-2007, 03:02 PM   #25
Honda-Tech Member

Comp97GSR's Avatar

Join Date: Nov 2001
Location: Coming to a parking lot, near you
Posts: 4,540
Default Re: How To: JDM ITR SRS Steering Wheel Install (97integraLS911)

Quote:
Originally Posted by 97integraLS911
do the non-srs wheels work on an srs sytem?? is there any way to delete the system to the wheel?
i bought a non-srs wheel and need to know if i can get it to work on my 97 (with srs airbag)
thanks
You remove the cable reel all together. To make the horn work, go to Honda and purchase a horn shoe from a 88-91 Civic/CRX.
Comp97GSR is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
meilinkvision: one more scooby BLacK FirE Other Make Vehicles 1 09-29-2008 06:34 AM
Behind the scenes: Magic BLacK FirE General Discussion and Debate 8 08-23-2008 01:09 AM
meilinkvision: Evo IX again BLacK FirE Honda / Acura 55 10-25-2007 03:39 PM
meilinkvision: Marcus Dairy '07, the North East's "Eibach" BLacK FirE Honda / Acura 90 06-27-2007 12:50 PM
meilinkvision.com: Team Exit Entering the Building BLacK FirE Group Threads 55 07-06-2006 09:38 PM


Tags
1990, 94, civic, ctr, delete, honda, instalation, install, integra, itr, jdm, remove, srs, steering, wheel

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -8. The time now is 02:31 PM.



Honda and the Honda marquee are registered trademarks of the American Honda Motor Company, Inc. Neither American Honda Motor Company nor its subsidiaries or affiliates shall bear any responsibility for Honda-Tech.com content, comments, or advertising. Honda-Tech.com is not affiliated with American Honda Motor Company in any way. American Honda Motor Company does not sponsor, support, or endorse Honda-Tech.com in any way. Copyright/trademark/sales mark infringements are not intended or implied.
